Page 7
Rev 0.0/6-14
5
MRTA8-DCO-DVS: #35077

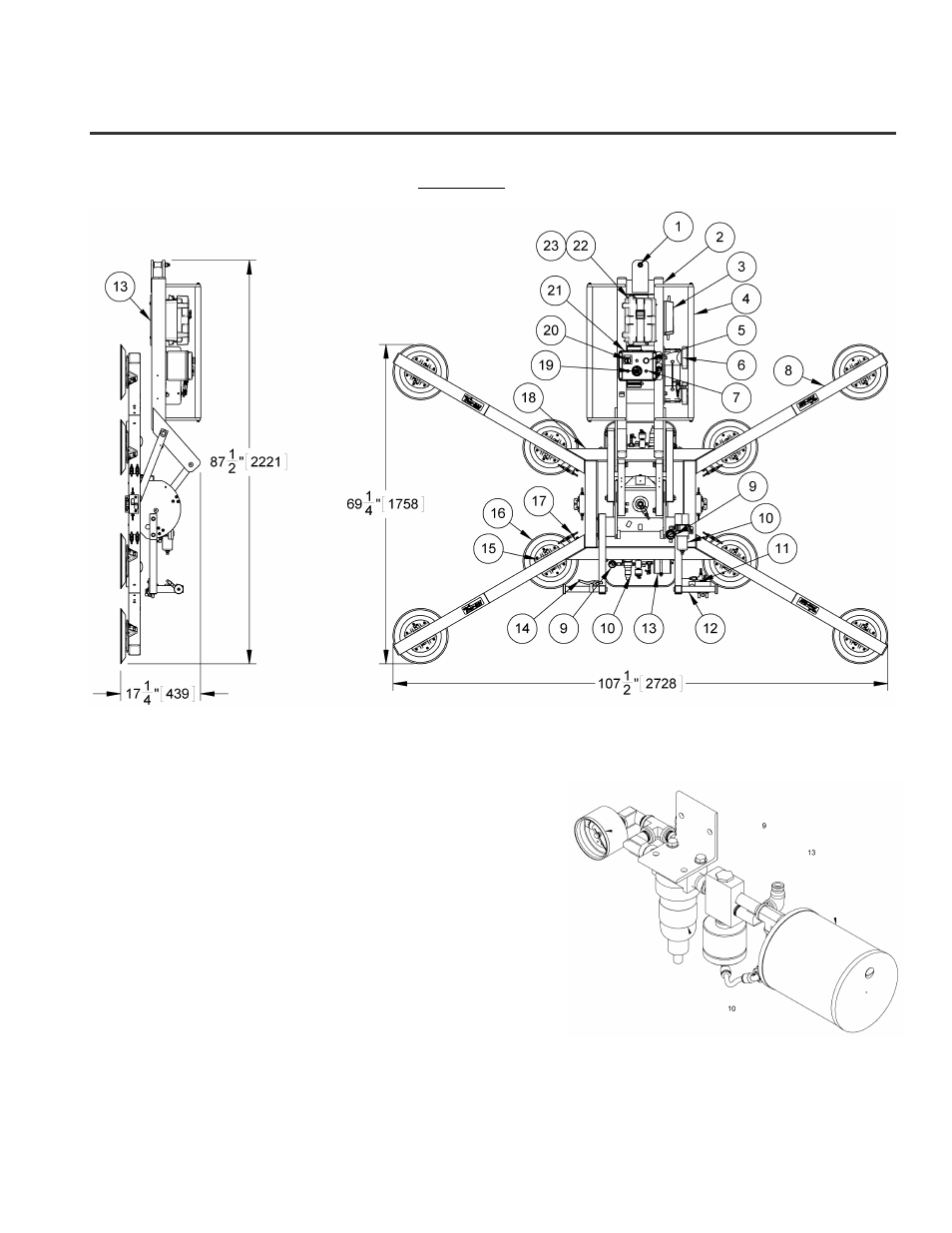

OPERATING FEATURES
Note: Components featured in the following instructions for assembling, operating or
maintaining the vacuum lifter are underlined on their first appearance in each section.
Standard MRTA811LDC shown with optional Dual Vacuum System.
DUAL VACUUM SYSTEM
VALVE ASSEMBLY
1 LIFT SPOOL
13 VACUUM RESERVE TANKS
2 LIFT BAR
14 ROTATION RELEASE LEVER
3 BATTERY CHARGER
15 MOVABLE PAD MOUNT
4 CONTROL HANDLE
16 VACUUM PAD
5 LOW VACUUM WARNING LIGHT 17 QUICK CONNECTOR
6 VACUUM PUMP
18 PAD FRAME
7 BATTERY TEST BUTTON
19 BATTERY GAUGE
8 EXTENSION ARM
20 POWER SWITCH
9 VACUUM GAUGES
21 Enclosure with
10 AIR FILTERS
VACUUM SWITCH
11 VACUUM CONTROL VALVE
22 BATTERY BOX with
12 CONTROL HANDLE
23 BATTERY
