INSTALLATION
I
NSTALLING THE
F
ORKLIFT
A
DAPTER ON A
L
IFTER
In order to be used successfully, the Forklift Adapter must be installed
correctly on a Wood's Powr-Grip model MRTA6-DC vacuum lifter. If the
Forklift Adapter is already installed as directed below, proceed to the
next section.

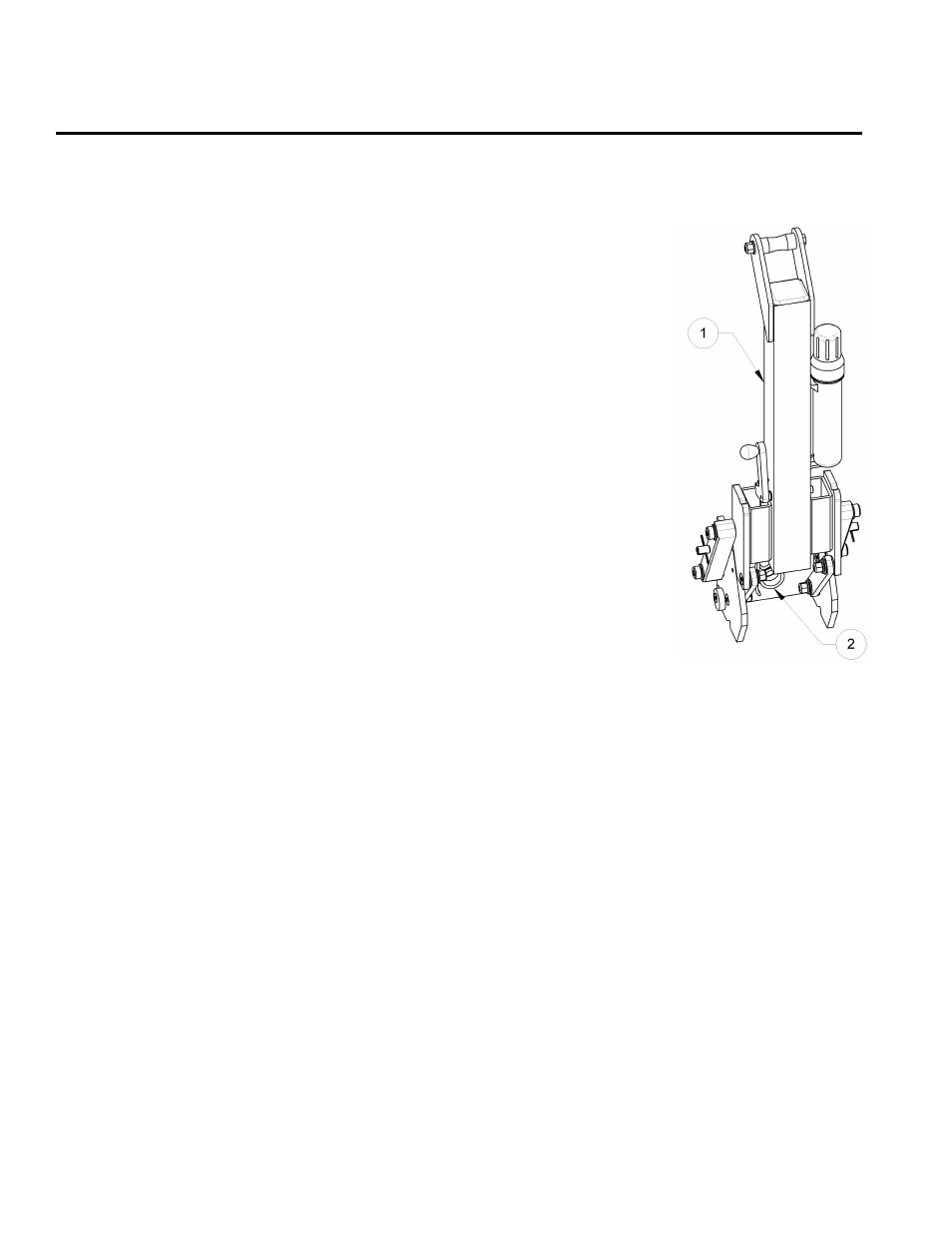

1) Remove the lift bar/center section assembly (see illustration) from the
lifter: Make sure the pad frame is supported independently. Identify
the rotation pin (not shown), which connects the center section (2) to
the pad frame. Remove the locking collar from the end of the
rotation pin and slide the center section off the pin.
2) Secure the Forklift Adapter in place of the lift bar (1) on the lifter:
Reverse the procedure in step 1 to reconnect the center section to
the pad frame. Make sure all hardware is installed on the lifter as it
originally was.
