1. After the seal fi tting is open, put
the junction box cap, strain relief disk,
grommet, and body onto the power
connection of cable.
2. Slice completely around heating
cable outer jacket, and then down a
distance of approximately 7 inches
(178mm). Be careful not to cut braid
or inner jacket. Then, bend the heating
cable to break the jacket where sliced,
and peel off outer jacket.

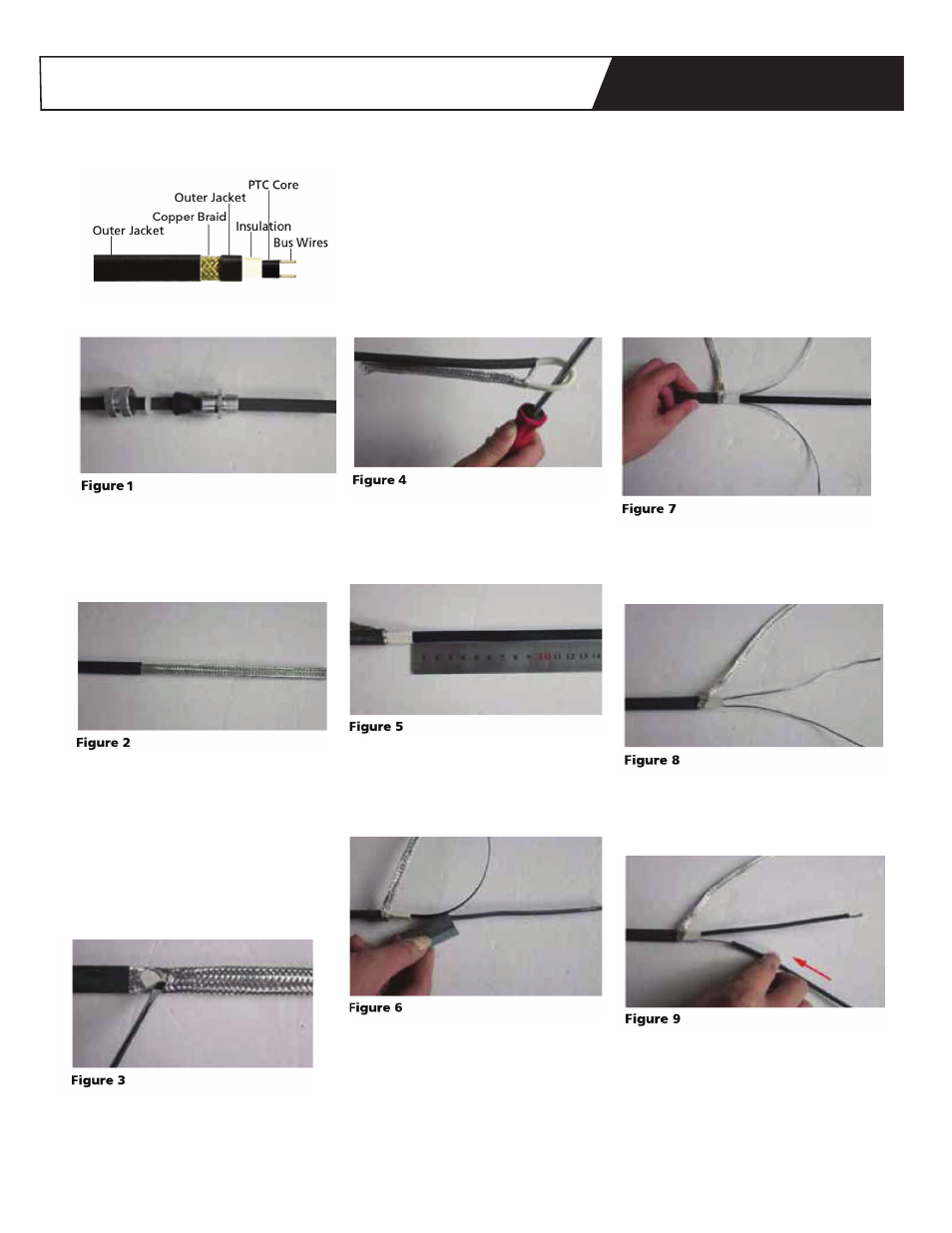

3. Carefully push the braid back to
loosen and spread apart as shown in
Figure 3.
4. Bend heating cable as shown in
Figure 4, so it can be pushed through
the braid opening.
5. Place braid to one side of cable.
Cut inner jacket of cable back
approximately 6 inches (152mm).
6. Shave off outer matrix material
from conductors with utility knife. See
Figure 6.
7. Peel back exposed wires from
central matrix material as shown in
Figure 7. Do not cut bus wire strands!
8. Cut off remaining center core of
matrix, leaving the bare conductors.
Do not cut bus wires!
9. Slide the 5½-inch (140mm) black
shrinkable tubes in place up to
conductive core.
3
Power Connection Kit Installation Instructions
Structure of model ET-SR
ET-PWR-END-KIT Installation Instructions ET-PWR-END-KIT
