Blue Rhino GBC820W - Manual (Page 3)

Contact 1.800.762.1142 for assistance. Do not return to place of purchase.
page no.
3
Parts List
1 Lid Handle 55-07-328
2 Warming Rack 55-07-361
3 Temperature Gauge 55-07-358
4 Lid 55-08-104
5 Cooking Grid 55-07-310
6 Heat Plate 55-07-319
7 Top Hinge (2) 55-07-360
8 Bottom Hinge (2) 55-07-306
9 Left Side Shelf 55-07-325
10 Grill Body Assembly 55-07-317
11 Burner (2) 55-08-101
12 Side Burner Assembly 55-07-354
13 Side Burner Grid 55-07-355
14 Side Burner 55-07-353
15 Push Button Ignition 55-07-322
16 Control Knob Support (3) 55-07-309
17 Control Knob (3) 55-07-308
18 Left Side Shelf Front Panel 55-07-326
19
Right Side Shelf Front
Panel
55-07-346
20 QCC Clip 55-13-827
21 Regulator/Hose Assembly 55-07-344
22 Grease Cup Support 55-07-316
23 Grease Cup 55-07-315
24 Top Frame Brace (2) 55-07-359
25 Back Panel 55-07-302
26 Rear Left Leg 55-07342
27 Rear Right Leg 55-07-343
28 LP Gas Tank Shield 55-07-334
29 Lighting Rod 55-07-331
30 Front Panel 55-07-314
31 Left Cart Wire 55-07-324
32 Rear Cart Wire 55-07-341
33 LP Gas Tank Retainer Wire 55-07-333
34 Front Right Leg 55-07-313
35 Front Left Leg 55-07-312
36 Bottom Left Frame Support 55-07-304
37 Bottom Cart Wire (2) 55-07-303
38
Bottom Right Frame
Support
55-07-305
39 Axle 55-07-301
40 Hub Cap (2) 55-07-320
41 Wheel (2) 55-07-363

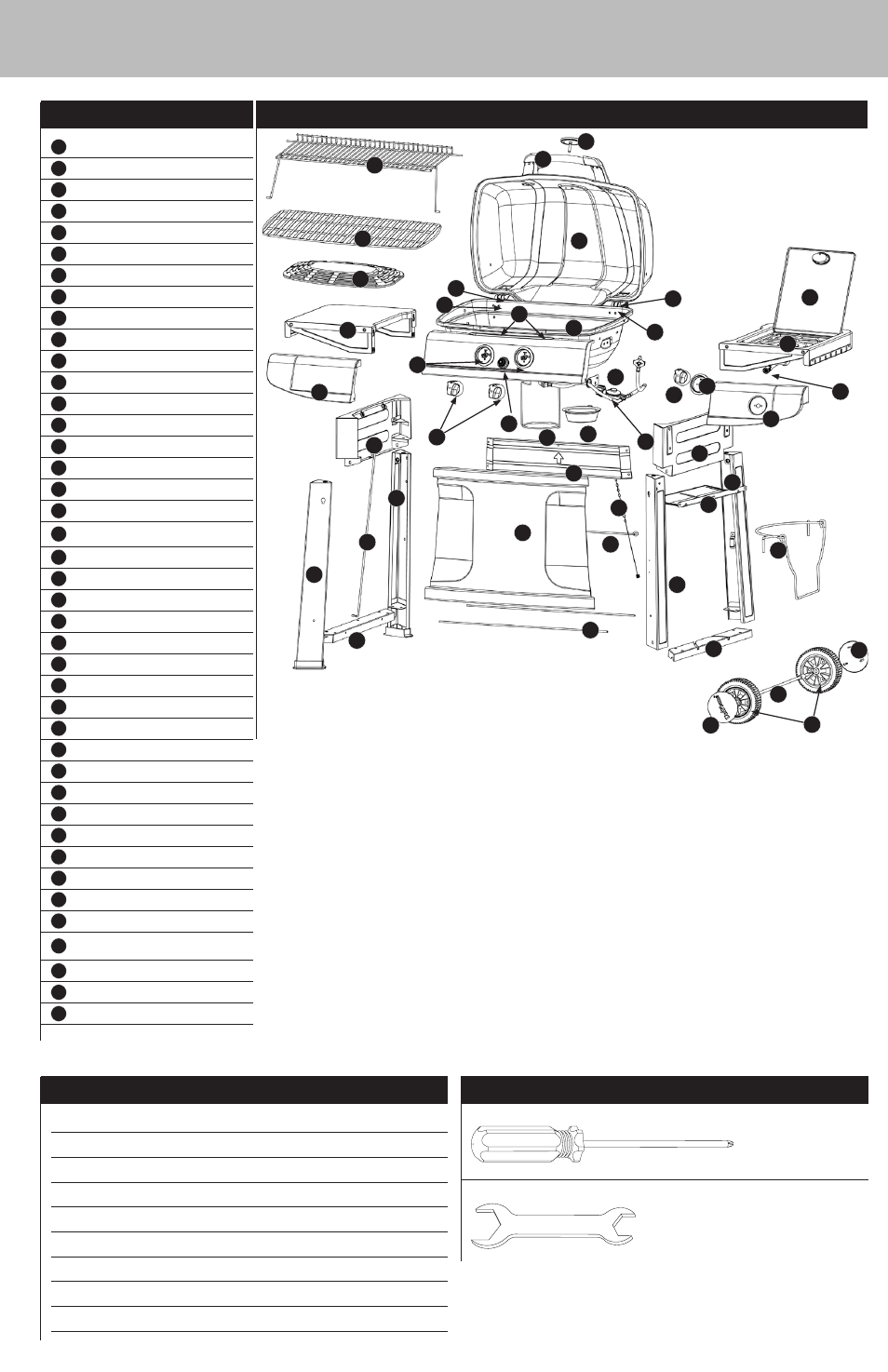

Exploded View
Tools Required for Assembly (Included)
#2 Phillips Head Screwdriver
M6 - M10 Wrench 2 pcs
Hardware
A
Screw M4x10 Zinc Plated Phillips Truss Head 2 pcs
B
Screw M6x16 Zinc Plated Phillips Truss Head 27 pcs
C
Bolt M6x16 Zinc Plated Phillips Hex Head 20 pcs
D
Nut M10 Zinc Plated 2 pcs
E
Wing Nut M6 Zinc Plated 2 pcs
F
Washer ø6.4 Zinc Plated 4 pcs
G
Lock Washer ø6.4 Zinc Plated 4 pcs
H
Rubber Spacer ø10.5 x ø17.5 x 6 2 pcs
I
AA Battery 1 pc
5
1
4
9
2
16
8
13
10
19
22
23
21
25
6
7
17 18
24
26
31
33
34
37
27
35
38
30
40
39
3
36
32
7
8
24
40
14
17
15
41
29 28
11
12
16
20
