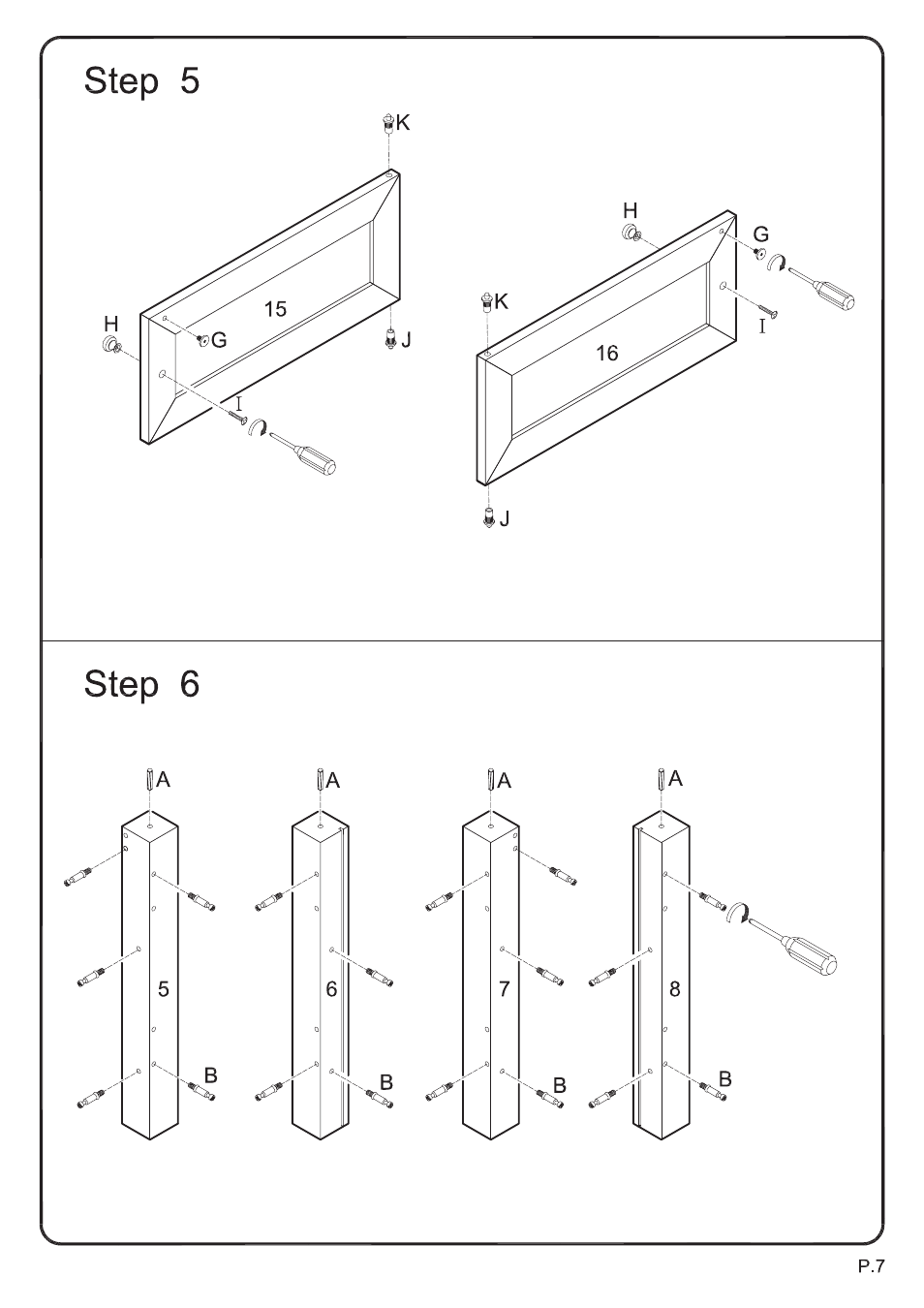

Attach handles (H) to doors (15,16) using medium bolts (I). Screw short bolts (G) into doors (15,16). Insert fixed

door hinges (J) and spring door hinges (K) into doors (15,16).

Screw cam bolts (B) into legs (5,6,7,8). Insert dowels (A) into legs (5,6,7,8).
