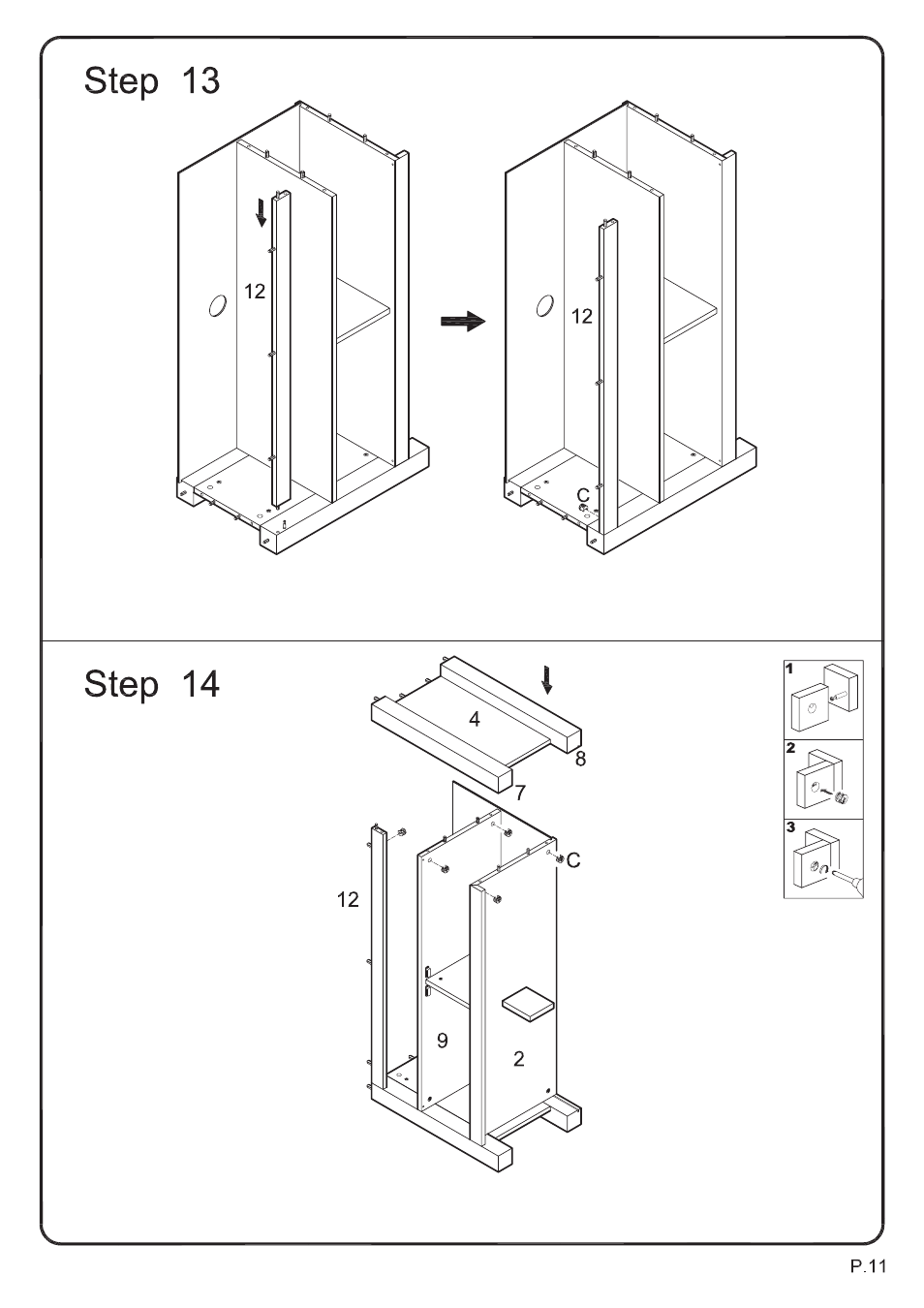

Attach slat (12) to the frame assembly using cam bolt and dowel as guides. Insert cam lock (C) into slat (12) and

tighten with a screwdriver.

Insert cam locks (C) into panel (2), shelf (9) and slat (12). Attach the panel (4) assembly to panel (2), shelf (9)

and slat (12) using cam bolts and dowels as guides. Tighten cam locks (C) with a screwdriver.
