2

3

Objective

Lens

Mgnifier

Barrel

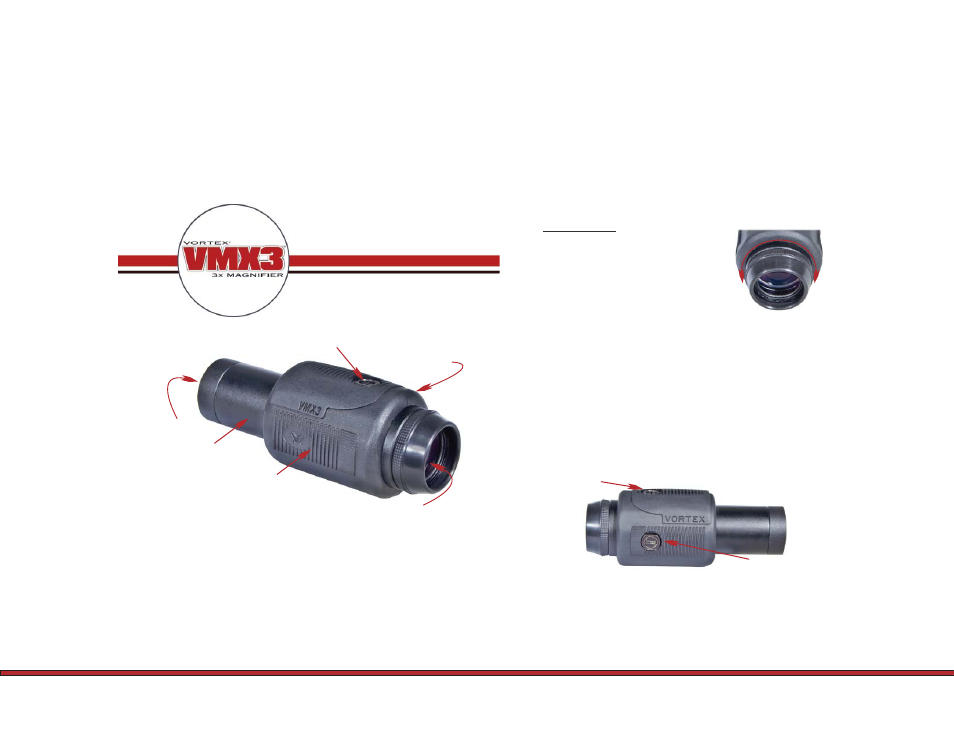

The Vortex VMX3 Magnifier

Ocular Lens

Eye Relief

50 mm

Tube Diameter

30 mm

Length

4.8

inches

Mounting Length

1.6 inches

Weight

8.0

ounces

VMX3 Specifications

30mm Tube

Adjustments

Use the focus knob to achieve a sharp
image. Turn knob left or right until
image is as sharp as possible.

Focus

The windage and elevation centering screws can be used to
help center the red dot in the VMX3s field of view. After the
VMX3 is mounted in front of red dot scope, the dot may seem
off-centered while viewing through the VMX3. This will not
affect the point-of-impact. If desired, the centering screws can
be used to move the dot up/down or left/right until the dot is
more centered. Do not force screws once resistance is felt and the
end-of-travel range has been reached.

Centering Screws

Note: Perfectly centering the red dot in the VMX3 is not required for
accuracy. Once the primary red dot optic has been sighted in using its own
adjustments, adjustments done to the VMX3 using the centering screws
will not affect the point-of-impact.

Included with the VMX3 Magnifier

30mm High Ring, Absolute Co-Witness

Elevation Adjustment

Screw

Elevation Adjustment

Screw

Windage Adjustment

Screw

Windage Adjustment

Screw (on back side)
