Ranging

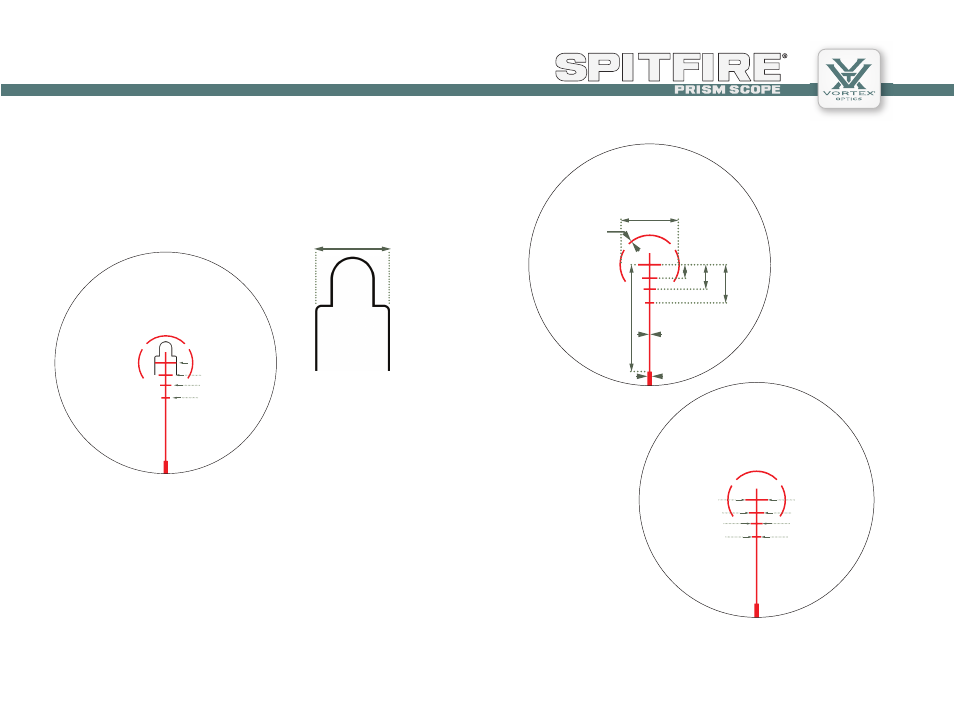

The EBR-556B reticle incorporates a simple ranging design. By matching
an object of 15 inches in width (example, the shoulder width on a
silhouette target) to the crossbar images, the approximate range can be
determined.
Ranging Crossbars
15 Inches
Reticle Subtensions
Subtensions are measured in MOA.
200
Yards / 15 Inches
300
Yards /15 Inches
400
Yards / 15 Inches
500
Yards / 15 Inches
18.85
12.5
8
4.4
35
.5
.5
1.5
200
Yards
7.6
MOA
300
Yards
5
MOA
400
Yards
4
MOA
500
Yards
3
MOA
