Bogen DST1 - Manual (Page 5)

AM/FM AM/FM
TUNING TUNING
TUNING TUNING
ST/MO ST/MO
+
-
FUNCTION FUNCTION
INTRO INTRO MEMORY MEMORY CHANNEL CHANNEL
DIGITAL AM/FM STEREO TUNER
POWER POWER
+ -
1. POWER: Turns power to the unit
ON
or
OFF
.
2. Power LED: Lights to indicate that unit is powered
ON
.
3. INTRO: Scans preset stations.
4. MEMORY: Activates memory to save station preset.
5. CHANNEL +/- : Manually scrolls through programmed presets.
6. AM/FM: Switches between AM and FM operation.
7. TUNING: Tunes station frequency down (-) or up (+).
8. STEREO/MONO: Selects
STEREO
or
MONO
operation
for selected FM station.
FM FM
75Ω
FM FM GND GND AM AM
30 300Ω AM LOOP AM LOOP
GND GND
VOLUME VOLUME STEREO STEREO
L R
MONO MONO
RISK OF ELECTRIC RISK OF ELECTRIC
SHOCK DO NOT OPEN SHOCK DO NOT OPEN
MODEL: DST1
120VAC 20VAC
60HZ 60HZ
0.15A 0.15A

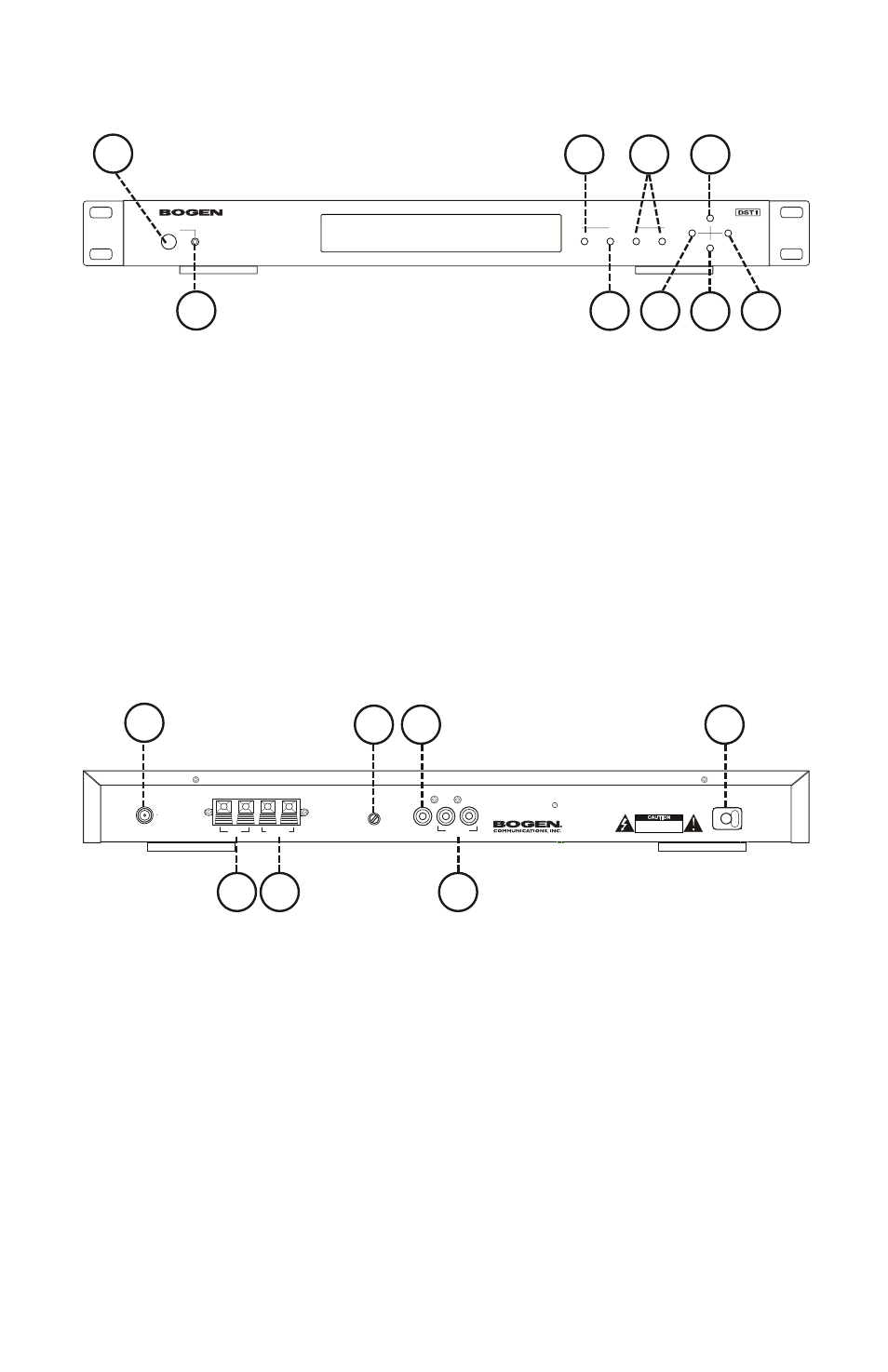

Rear Panel Controls and Connectors
Front Panel Controls
1. 75-Ohm: FM Antenna input.
2. 300-Ohm: FM Antenna input.
3. AM LOOP: AM Antenna input.
4. VOLUME: Attenuates output volume.
5. MONO: Audio connection for mono applications.
6. STEREO R/L: Audio connections for stereo applications.
7. AC Line: Connects to 120V, 60 Hz AC mains.
5
1
2
3
4
5
6
7
8
1
2 3
4 5
6
7
7
