Pulse Door /
Sidelite Panel
Dimensions
Comp 7 2014 (U1 REVISED) 7.3
6/8 Pulse Doors
79 3/64"
4 3/16"
16 27/32" TYP.
7 21/32" TYP.
9 1/32"
A
13 27/32" TYP.
23 3/32" TYP.
B

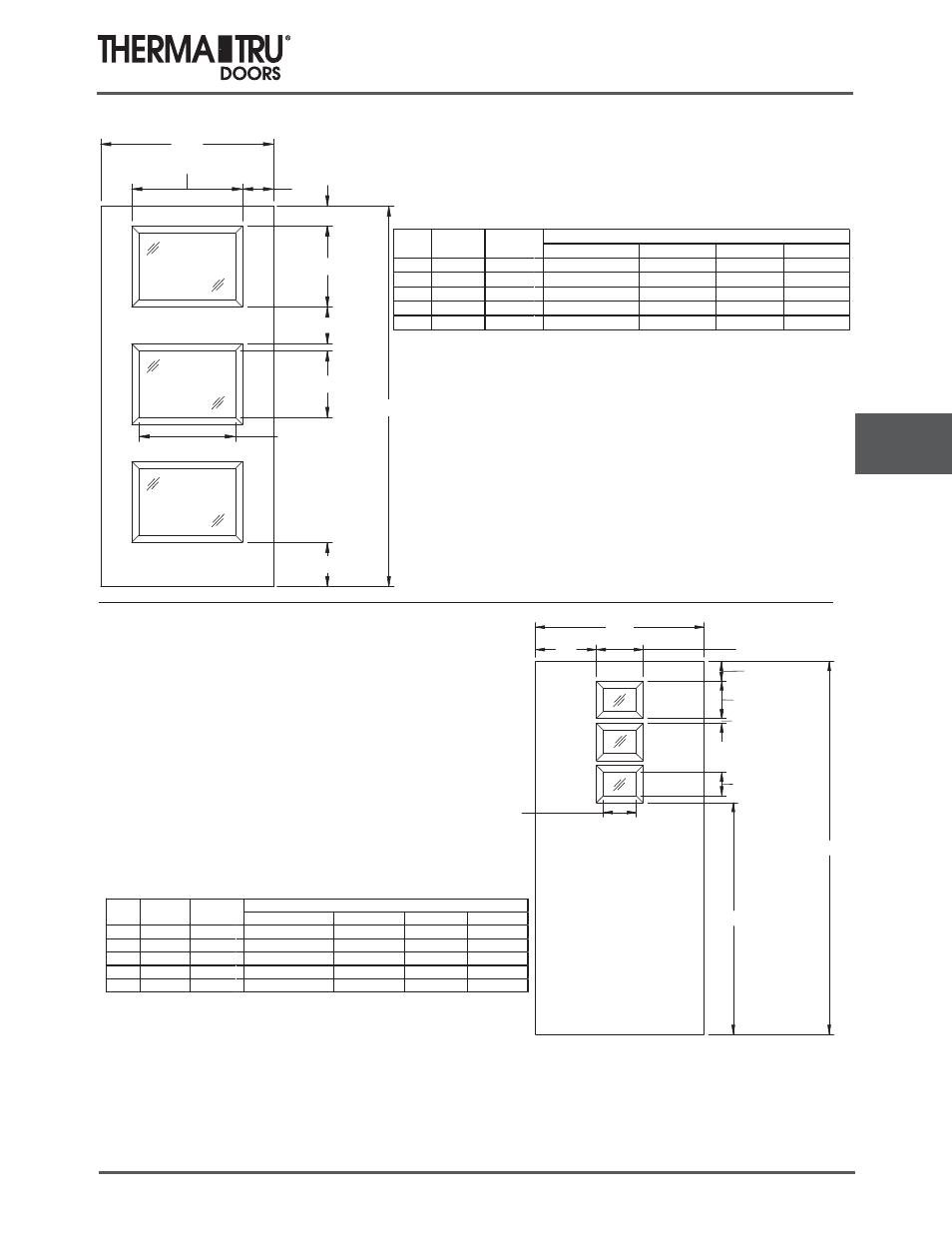

Ari 3-Lite
(Glass - 2115)
20 3/32" TYP.
FC Oak FC Mahogany Smooth-Star Profiles
2/6 29 13/16" *3 27/32 " FCO26010U1 FCM26010U1 SS26010U1 DR26100U1
2/8 31 13/16" 4 11/32 " FCO28010U1 FCM28010U1 SS28010U1 DR28100U1
2/10 33 13/16" 5 11/32 " FCO21010U1 FCM21010U1 SS21010U1 DR21100U1
3/0 35 13/16" 6 11/32 " FCO30010U1 FCM30010U1 SS30010U1 DR30100U1
3/6 41 13/16" 9 11/32 " SS36010U1 DR36100U1
Slab
A Size B
Total Daylight Opening: 834 sq.in.
*Reflects lockside dimension with cutout shifted 1/2" toward hinge side to allow standard bore with 2 3/8" backset.
9 15/16" TYP.
7 15/16" TYP.
Echo 3-Lite Top
Center Cluster
(Glass - 0806)
1" TYP.
4 15/16" TYP.
6 15/16" TYP.
FC Oak FC Mahogany Smooth-Star Profiles
2/6 29 13/16" 9 15/16 " FCO26010U1 FCM26010U1 SS26010U1 DR26100U1
2/8 31 13/16" 10 15/16 " FCO28010U1 FCM28010U1 SS28010U1 DR28100U1
2/10 33 13/16" 11 15/16 " FCO21010U1 FCM21010U1 SS21010U1 DR21100U1
3/0 35 13/16" 12 15/16 " FCO30010U1 FCM30010U1 SS30010U1 DR30100U1
3/6 41 13/16" 15 15/16 " SS36010U1 DR36100U1
Size A B
Slab
Total Daylight Opening: 102 sq.in.
A
4 5/32" TYP.
79 3/64"
B
49 1/8"
