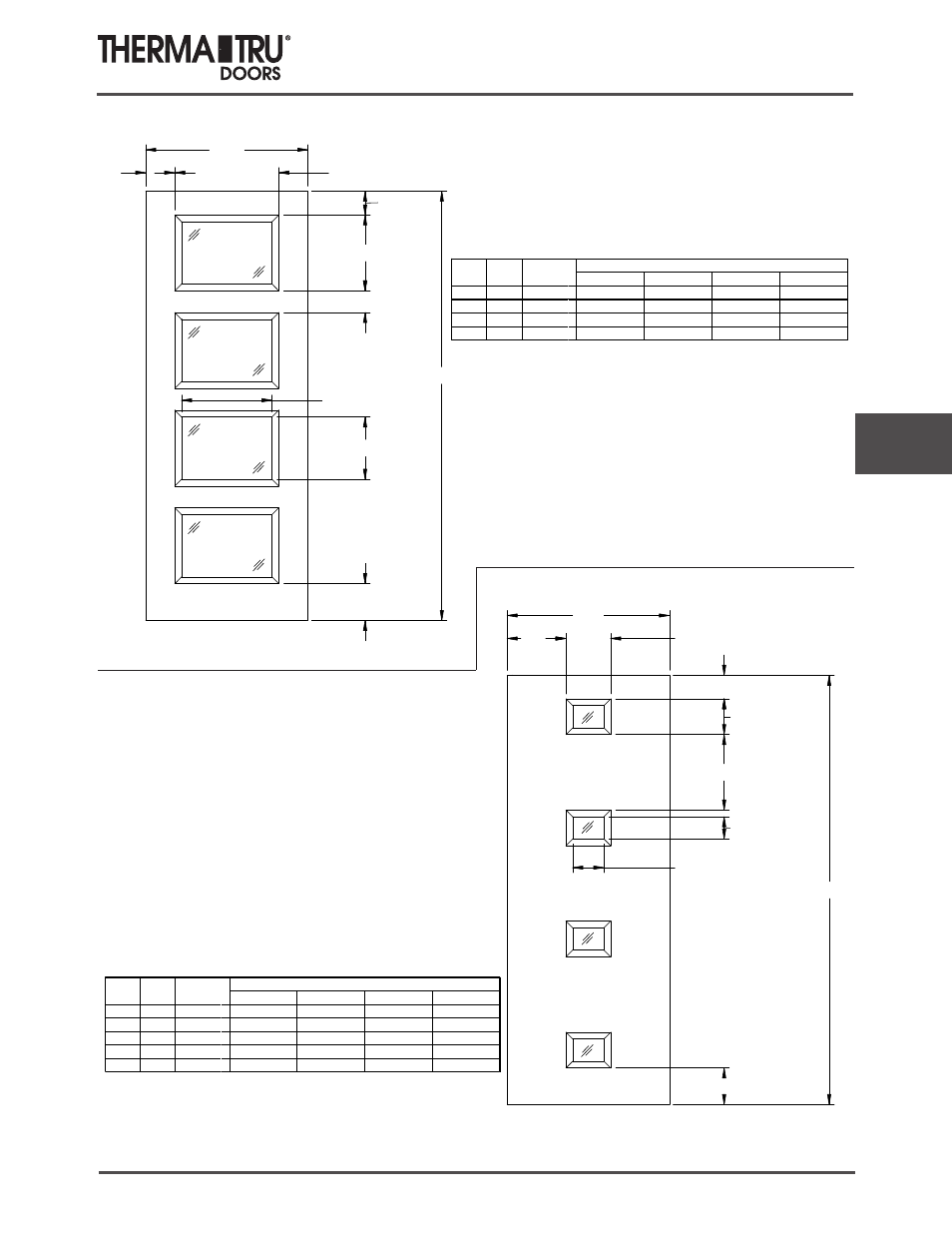

Pulse Door /
Sidelite Panel
Dimensions
Comp 7 2014 (BOOK SIZE) 7.9
8/0 Pulse Doors
95 1/4"
8 5/32"
4 13/16" TYP.
16 27/32" TYP.
5 1/4"
A
23 3/32" TYP. B
13 27/32" TYP.
8' Ari 4-Lite
(Glass - 2115)
20 3/32" TYP.
FC Oak FC Mahogany Smooth-Star Traditions
2/8 32" 4 15/32 " FCO828010 FCM828010 S828010 D828100
2/10 34" 5 15/32 " FCO821010 FCM821010 S821010 D821100
3/0 36" 6 15/32 " FCO830010 FCM830010 S830010 D830100
3/6 42" 9 15/32 " S836010
Slab
Total Daylight Opening: 1108 sq.in.
A Size B
8' Echo 4-Lite Centered
(Glass - 0806)
A
B 9 15/16" TYP.
5 7/32"
7 15/16" TYP.
4 15/16" TYP.
6 15/16" TYP.
16 23/32" TYP.
8 1/8"
95 1/4"
FC Oak FC Mahogany Smooth-Star Traditions
2/6 30" 10 1/32 " FCO826010 FCM826010 S826010 D826100
2/8 32" 11 1/32 " FCO828010 FCM828010 S828010 D828100
2/10 34" 12 1/32 " FCO821010 FCM821010 S821010 D821100
3/0 36" 13 1/32 " FCO830010 FCM830010 S830010 D830100
3/6 42" 16 1/32 " S836010
Total Daylight Opening: 136 sq.in.
Slab
Size A B
