Weatherstrip
and Door
Bottoms

Comp 13

2014 (BOOK SIZE)

13.5

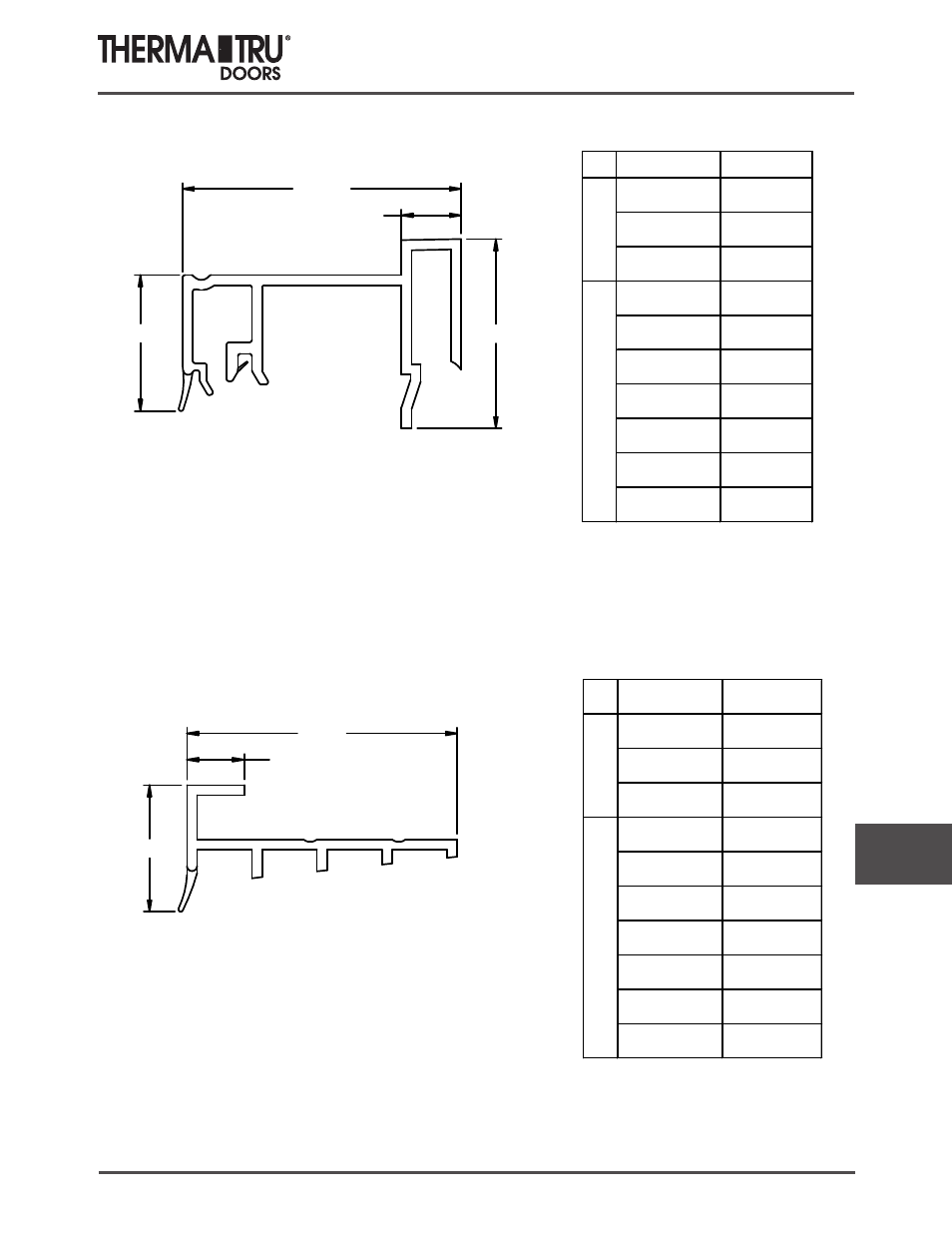

Door Bottoms - Sidelites

Inactive Door Bottom -

Composite/Hardwood Inswing Sill

1 1/2"

2 3/16"

1 1/16"

15/32"

1"

2 1/8"

7/16"

Inactive Panel Door Bottom -

Composite Outswing Sill

SLAB SIZE LENGTH

10" SL

9-15/16"

12" SL

11-15/16"

14" SL

13-15/16"

2/0

24-1/8"

2/4

28-1/8"

2/6

30-1/8"

2/8

32-1/8"

2/10

34-1/8"

3/0

36-1/8"

3/6

42-1/8"

SI

D

EL

IT

E

ST

AN

DA

R

D

LE

NG

THS

SLAB SIZE LENGTH

10" SL

9-15/16"

12" SL

11-15/16"

14" SL

13-15/16"

2/0

24-1/8"

2/4

28-1/8"

2/6

30-1/8"

2/8

32-1/8"

2/10

34-1/8"

3/0

36-1/8"

3/6

42-1/8"

SID

E

LIT

E

ST

AN

DA

R

D L

E

N

G

THS
