10
HI200 Hampton Wood Cast Insert
INSTALLATION

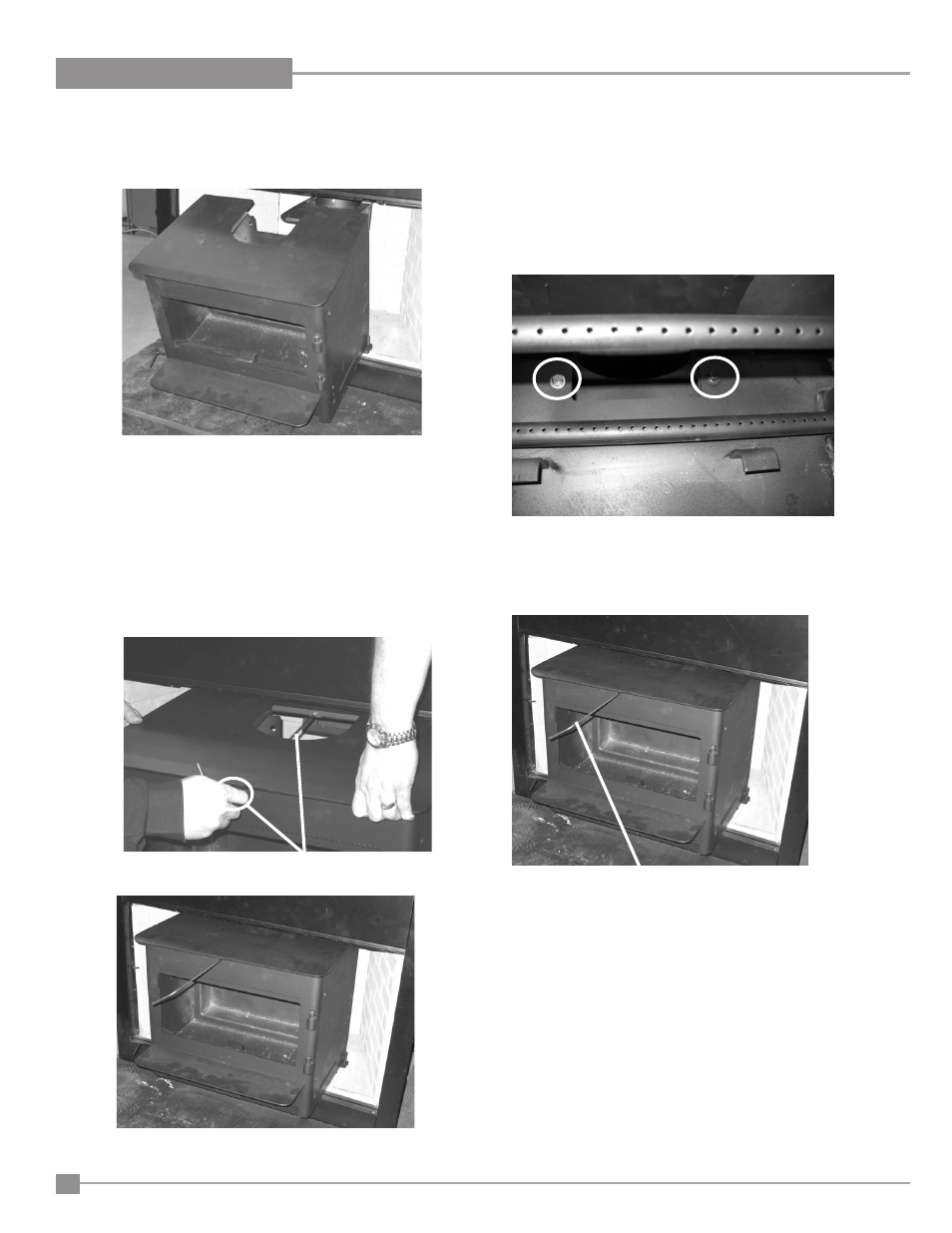

6) Install the unit by first setting the rear of the unit into the fireplace. See
diagram 3. Ensure that the unit is centered in the existing fireplace
and lined up with the flue adaptor.
7) Slide the unit back until the flue adaptor is slightly engaged.
8) At this point it is recommended to level the unit and ensure that the
leveling bolts rest on the surface of the fireplace. This will keep the
adaptor from binding as the unit is slid into position.
9) Insert the provided pull rod through the hole in the top center of
the unit. Secure the threaded end into the flue adaptor as shown in
diagram 4. While sliding the unit into place pull on the rod to ensure
that the flue adaptor is properly engaged. See diagram 5.
Pull Rod
10) Ensure that the unit is still level.
11) To complete the installation and to ensure a secure fit and connec-
tion of the flue adaptor to the insert, it is essential that the two bolts,
flat washers and lock washers (supplied with packaged manual) be
installed and tightened using a 1/2" socket as shown in diagram 6.
This prevents the possibility of creosote drip and exhaust gas leak-
age.
12) Remove the pull rod from the top center of the fireplace. See
diagram 7.
NOTE: The pull rod should not be thrown away. It should be kept if
the stove is ever needed to be removed from the fireplace.
Diagram 5: Pull Rod In Place
Pull Rod
Diagram 3
Diagram 4
Diagram 6
Diagram 7
