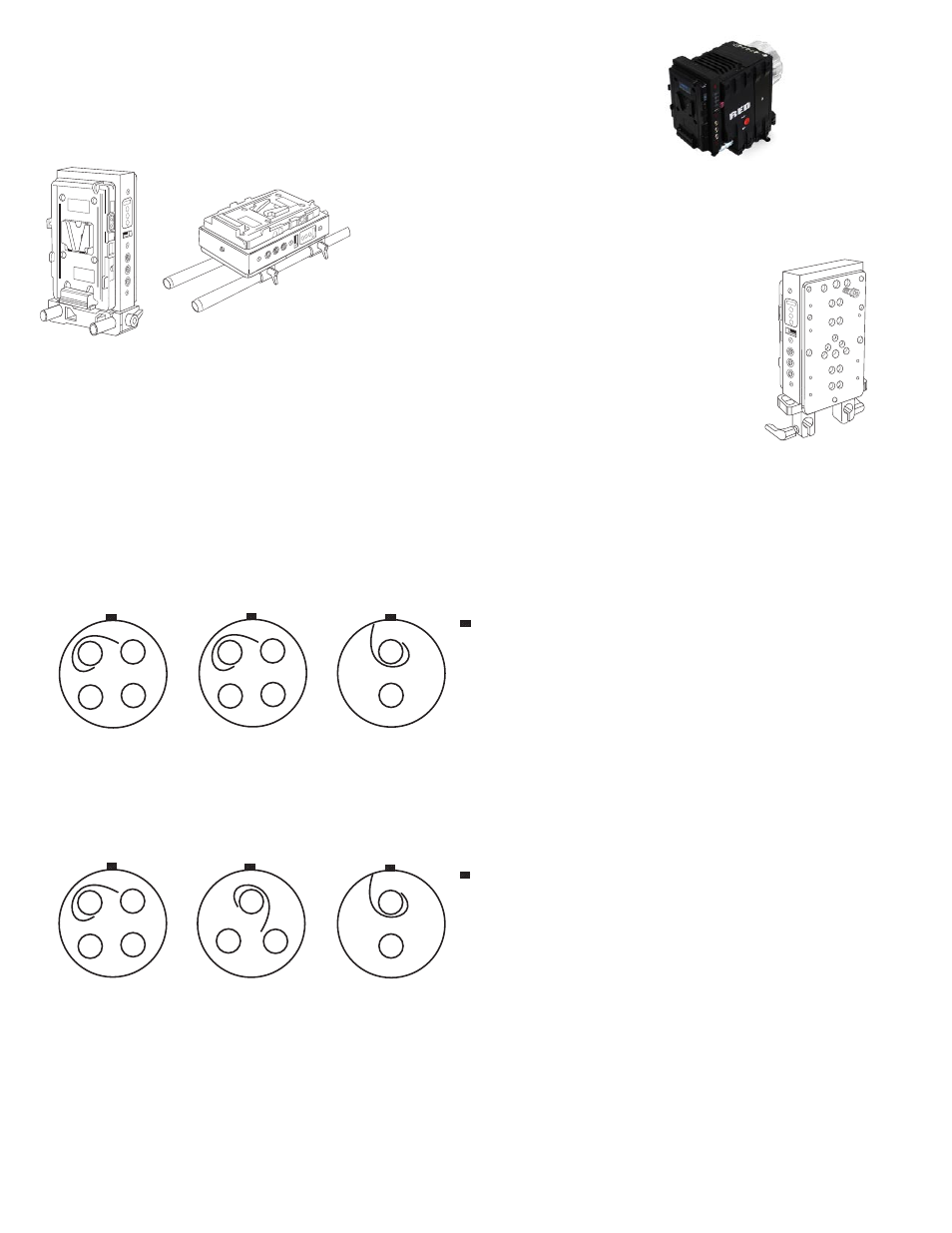

Mounting the Jetpack:

Option: RED DSMC users can purchase a Wooden Camera Quick Back and
attach it to the back of the Jetpack. This provides a simple, elegant mounting

platform on the back of your RED Scarlet/EPIC.

Option: The Jetpack’s aluminum case has three 1/4-20 thread

mounts on it. Two on the back, one on the bottom. You may connect

15/19mm rail blocks to these for mounting.

Option: The Jetpack mounts perfectly to the back of the MATRIX Rail Plate. Place the Jetpack on the
back of the plate, having it sit on the rail block, and use the included 1/4-20 thumb screw
to affix it to the plate. You may need an allen key wrench to tighten.

Optional Cheese Plate: Should you need additional mounting threads, we offer #JP-CHEESE which mounts to the back

of the JETPACK and provides 20+ additional 1/4-20 and 3/8-16 threads.

JetPack Pin-Outs

JP-V-EPIC/JP-A-EPIC

REPRESENTATION FROM REAR VIEW OF CONNECTOR

Switronix is not responsible for any improper wiring should a user choose to produce their own mating cables. TRIPLE CHECK polarity prior to
connecting the JETPACK to any devices when using your own cables. If you have ANY DOUBT, we offer all the cables through our distribution
base, as well as custom cables should you need.

Any questions, call 800-613-7948 or email [email protected]

JP-V-BMCC/JP-A-BMCC/JP-V-XLR/JP-A-XLR/JP-V-BASE/JP-A-BASE

__ __

____

LEMO PART #
FGG.0B.303.CLAD52Z

LEMO PART #
FGG.0B.304.CLAD52Z

LEMO PART #
FGG.0B.302.CLAD52Z

LEMO PART #
FGG.0B.304.CLAD52Z

LEMO PART #
FGG.0B.302.CLAD52Z

LEMO PART #
FGG.0B.304.CLAD52Z

12v

7.2v

KEY**

____
