connecting to a camera
KIT-12V
Connect the power cable (included) from the "TO CAMERA"
plug to the "12V" outlet of the camera. (see figure below,
section "Connecting to solar panel")
BATT-12V
To connect the battery to the camera with a power cable (CB-
12FT sold separately), connect the "alligator" clips from the
cable to the battery. Exact polarity must be followed (red = +,
black = - ). Connect the other end to the camera (see image
below).

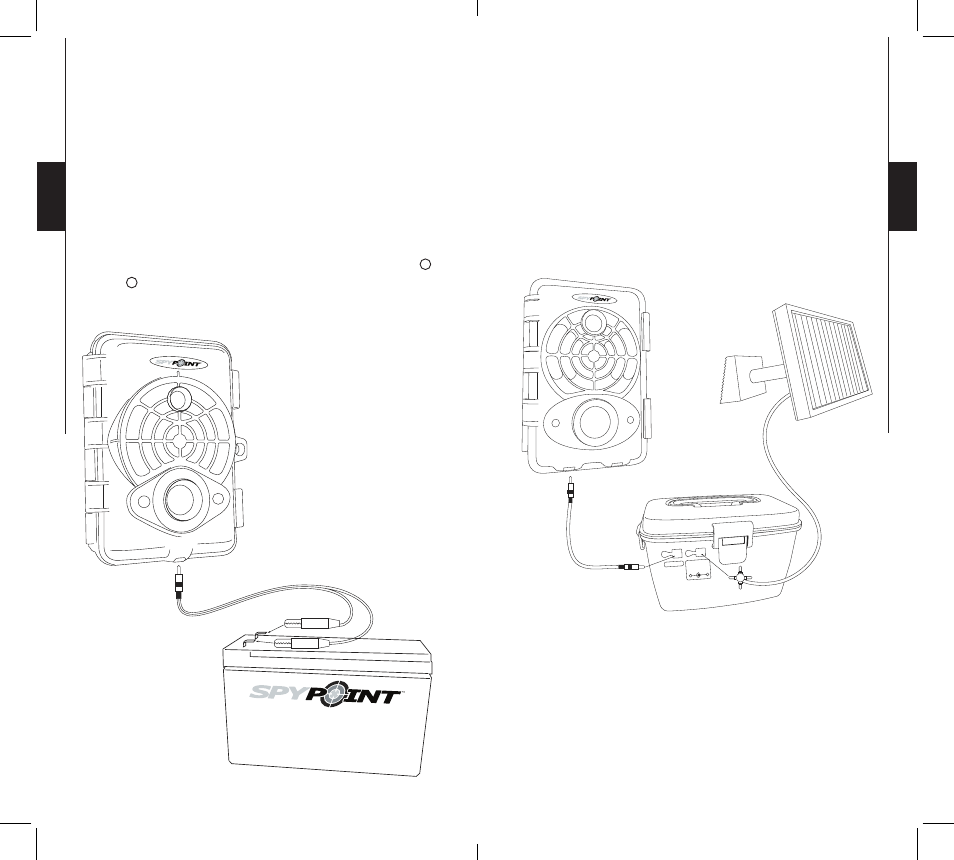

RED
BLACK
RED
BLACK
SPYPOINT ® camera
12V battery
CB-12FT cable TO CAMERA 12V
CHARGER OR
SOLAR PANEL
- +
SPYPOINT ® camera
Solar panel
12V battery and case
Power
cable
connecting a Solar panel
KIT-12V
To recharge the power case with a solar panel, connect the cable
from the solar panel to the "SOlAR PANEl" outlet of the case.
Make sure that the battery is fully charged before plugging in
the solar panel. It will keep the charge of the battery but does
not recharge it.
