INSTALLATION INSTRUCTIONS
SAVE THESE INSTRUCTIONS
701 Millennium Boulevard Greenville, SC 29607 (864) 678-1000 www.hubbelloutdoor.com
REMOVE HUB PORTS
AND ADD TEFLON TAPE

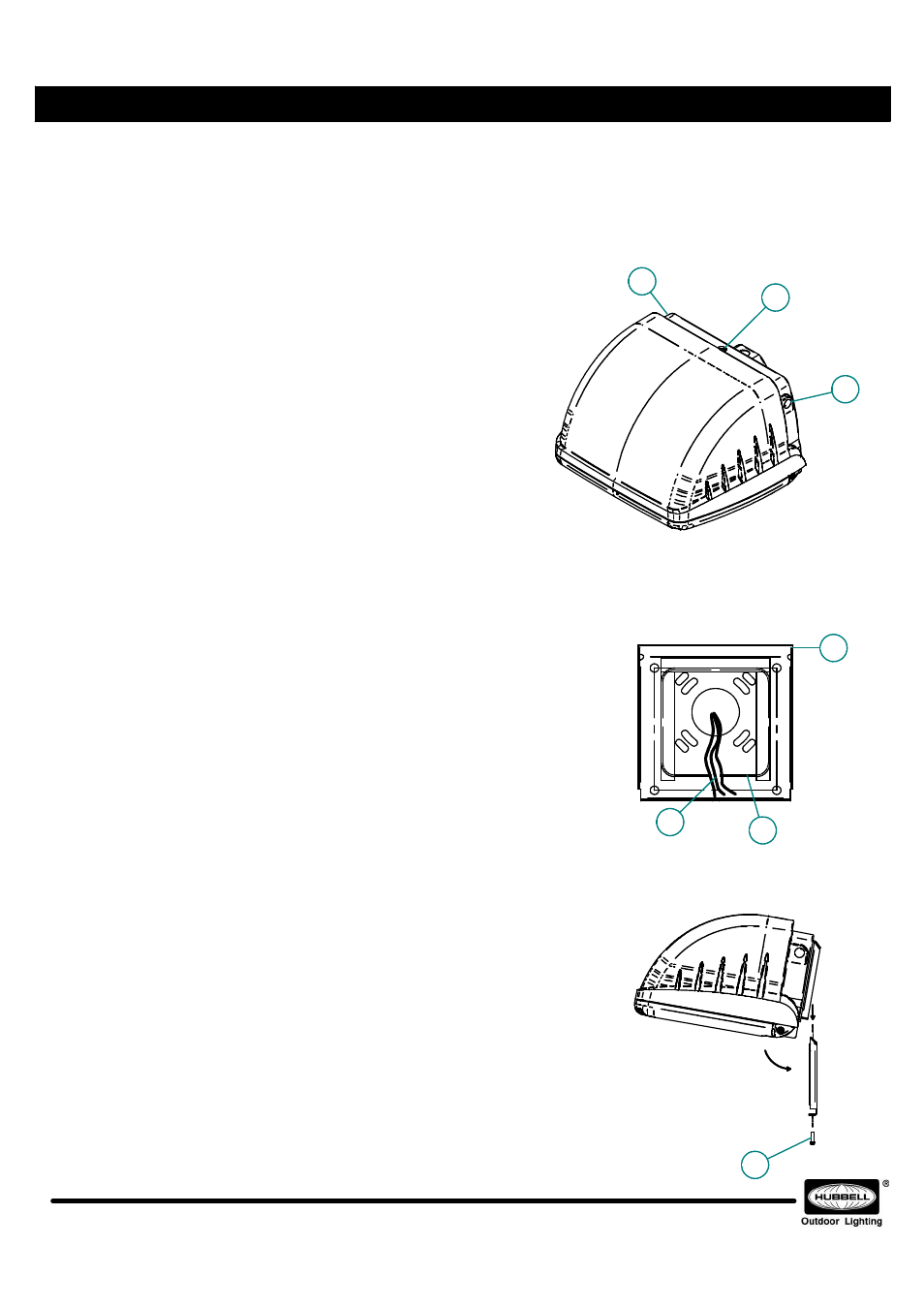

STEP II FIXTURE PREPARATION (See Fig. 2)
• Remove hub ports at (D), (E), and (F).
• Apply Teflon tape (supplied by others) to hub ports and
re-install.
STEP IV FIXTURE MOUNTING (See Fig. 4)
• Hold fixture at a slight angle, slide over mounting plate and
rotate downward to capture plate.
• Tighten screw (G) securely.
• Check to ensure secure mount.
• Energize product.
Step III WIRING (See Fig. 3)
• POWER MUST BE OFF.
(WIRING MUST BE PERFORMED BY
A QUALIFIED ELECTRICIAN)
• Wire service leads to fixture power leads according to local
and National Electric Codes.
• Luminaire is equipped with a universal voltage driver capable of
120V-277V input.
• For direct wire connections, connect ground wire to green
wire. Connect black to black and white to neutral then push
connections back inside J-box (B).
2
D
E
F
B
A
C
FIG. 2
FIG. 3
FIG. 4
G
NOTE: DO NOT OPEN FIXTURE. FIXTURE HAS BEEN DESIGNED WITH EASY TO INSTALL
MOUNTING BRACKETS.
