TRP & RDI 30LED INSTALLATION INSTRUCTIONS (PG 2/2)
SAVE THESE INSTRUCTIONS
701 Millennium Boulevard Greenville, SC 29607 (864) 678-1000

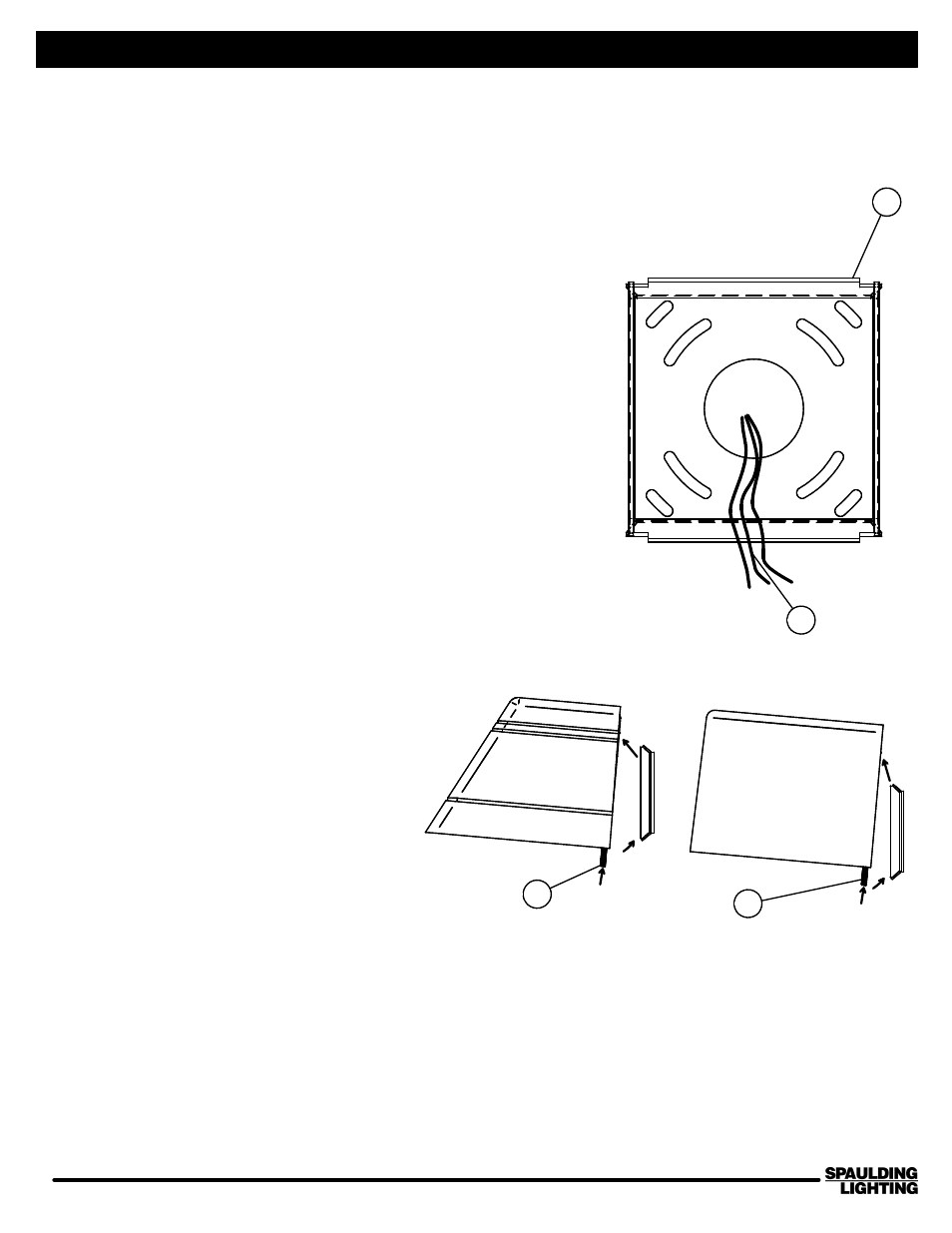

Step II WIRING (See Fig. 2)
POWER MUST BE OFF.
(WIRING MUST BE PERFORMED BY A QUALIFIED
ELECTRICIAN)
CAUTION! SHOCK HAZARD, DO NOT CONNECT RED AND
WHITE WIRES TOGETHER UNTIL ALL OTHER
CONNECTIONS HAVE BEEN MADE.
• Wire service leads to fixture power leads according to local
and National Electric Codes.
• Luminaire is equipped with a universal voltage driver capable of
120V-277V input.
• For direct wire connections, connect ground wire to green
wire. Connect black to black and white to neutral then push
connections back inside J-box.
A
B
FIG. 2
FIG. 3
G
NOTE: DO NOT OPEN THIS PRODUCT UNLESS INSTRUCTED BY STEPS INCLUDED IN
THESE INSTRUCTIONS OR BY HUBBELL LIGHTING TECHNICAL SUPPORT PERSONNEL.
FIXTURE HAS BEEN DESIGNED WITH EASY TO INSTALL MOUNTING BRACKETS.
93051033 - Page 2 of 2
STEP III FIXTURE MOUNTING (See Fig. 3)
• Hold fixture at a slight angle, slide over mounting
plate and rotate upward to capture plate.
• Tighten screw (G) securely.
• Check to ensure secure mount.
• Energize product.
G
WARNING:
NOT DESIGNED FOR UPLIGHT
FIXTURE TO BE INSTALLED FACE
DOWN ONLY
