INSTALLATION INSTRUCTIONS
SAVE THESE INSTRUCTIONS
701 Millennium Boulevard Greenville, SC 29607 (864) 678-1000 www.spaulding-ltg.com
LED BOLLARD UPGRADE
(BOLR, BOLS)
WARNING: DISCONNECT POWER BEFORE INSTALLATION OR SERVICING
READ INSTRUCIONS CAREFULLY - FAILURE TO DO SO COULD RESULT IN
PERSONAL INJURY. RETAIN INSTRUCTIONS FOR SERVICING.
NOTE: ONLY USED IN THE FRESNO, TEMPE, AND MODESTO BOLLARDS.

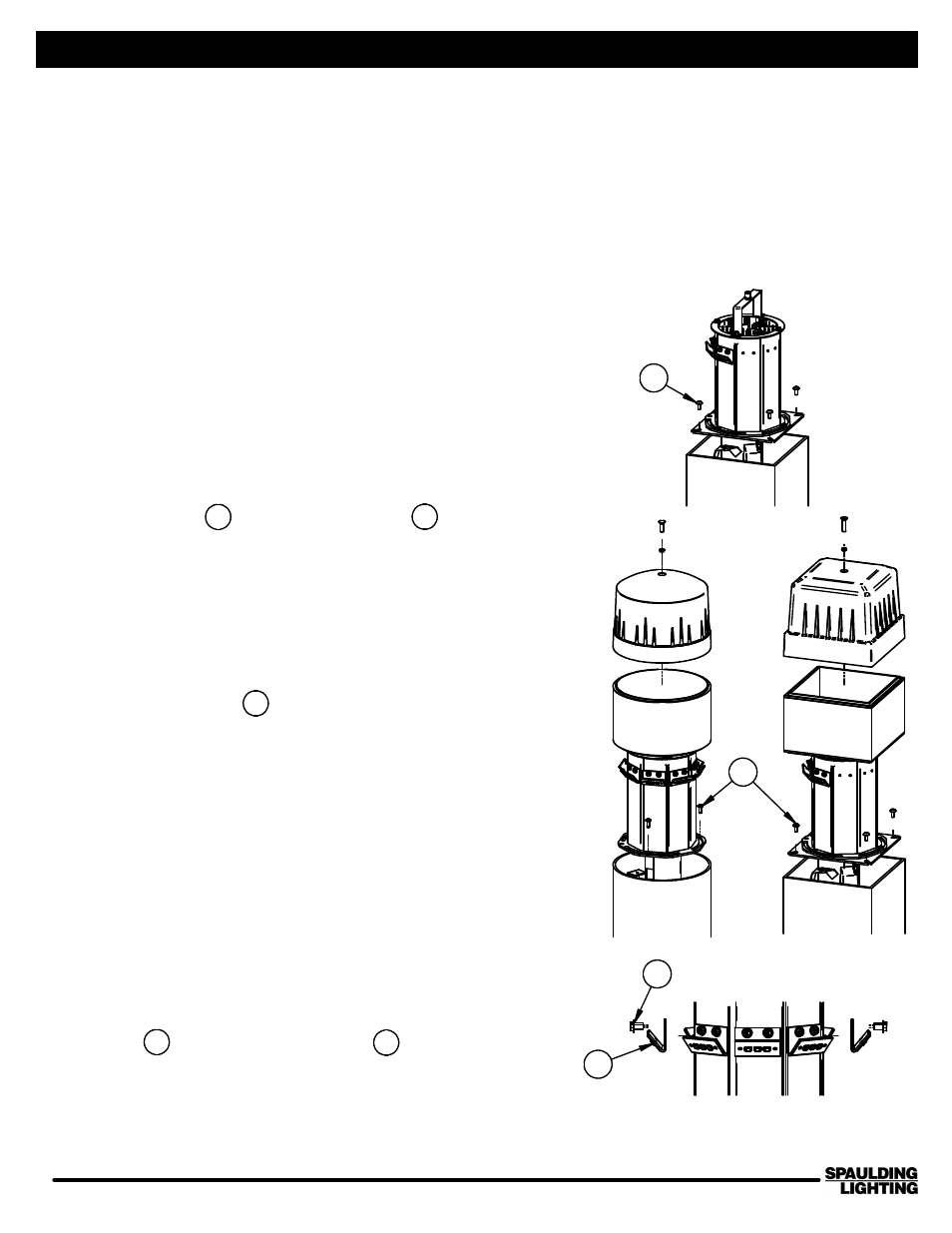

FIXTURE INSTALLATION
1. VERIFY CIRCUIT IS DE-ENERGIZED BEFORE PERFORMING
ANY WORK.
2. REMOVE EXISTING LUMINARE LAMP, OPTICS, AND BALLAST
NOTE: PLEASE DISPOSE OF MATERIALS IN APPROPRIATE
MANNER
3. UNPACK LUMINAIRE UPGRADE KIT AND CHECK FOR DAMAGE.
4. PLACE UPGRADE KIT IN BASE AND SECURE WITH MOUNTING
SCREWS PROVIDED IN HARDWARE KIT.
NOTE: SQUARE: 4 SCREWS, ROUND: 3 SCREWS
5. PLACE NEWS LENS AND HOUSING CAP OVER LUMINAIRE,
AND REPLACE NEW ALLEN SOCKET SCREW AND SEALING
WASHER WITH EXISTING SCREW AND WASHER.
6. MAKE WIRING CONNECTIONS OBSERVE PROPER POLARITY
AND GROUND WIRE MUST BE COMMONIZED
- LED LIGHT ARRAY CAN BE ADJUSTED BY LOOSENING THREE
MOUNTING SCREWS. THEN RETIGHTEN MOUNTING
SCREWS.
BEFORE ENERGIZING LED MAKE CERTAIN THAT:
- LINE VOLTAGE IS WITHIN BALLAST OPERATING RANGE.
- LED LIGHT ARRAY IS POINTING IN DESIRED DIRECTION.
LED RELAMPING INSTRUCTIONS
1. REMOVE CAP BY LOOSENING ALLEN SOCKET SCREW AND
SEALING WASHER.
2. DISCONNECT LED LEADS FROM BALLAST
3. REPLACE LED BOARDS BY REMOVING TWO MOUNTING
SCREWS FROM EACH BRACKET
4. REVERSE ABOVE PROCEDURE TO RE-ASSEMBLE FIXTURE
BEING SURE SEALING WASHER IS ON SCREW,
NOTE: HEAD OF SCREW WILL NOT BE FLUSH WITH TOP OF
HOUSING DUE TO SEALING WASHER. DO NOT OVERTIGHTEN
TOP ALLEN HEAD SOCKET SCREW.
A
B
C
B
D
93036520_A
05/24/2011
B 3X
C 2X
D
A 4X
