Model 700 Microarray Oven — USER MANUAL
Version 2.1, February 2011 (408) 733-7337, [email protected]
9
IV. MAINTAINING YOUR OVEN
A. Servicing
Turn the power switch to the OFF position and unplug the power cord
before performing any service procedure.
1. Checking and Replacing Fuses
Fuses are located in a removable fuse block below the power cord
receptacle on the back of the unit.

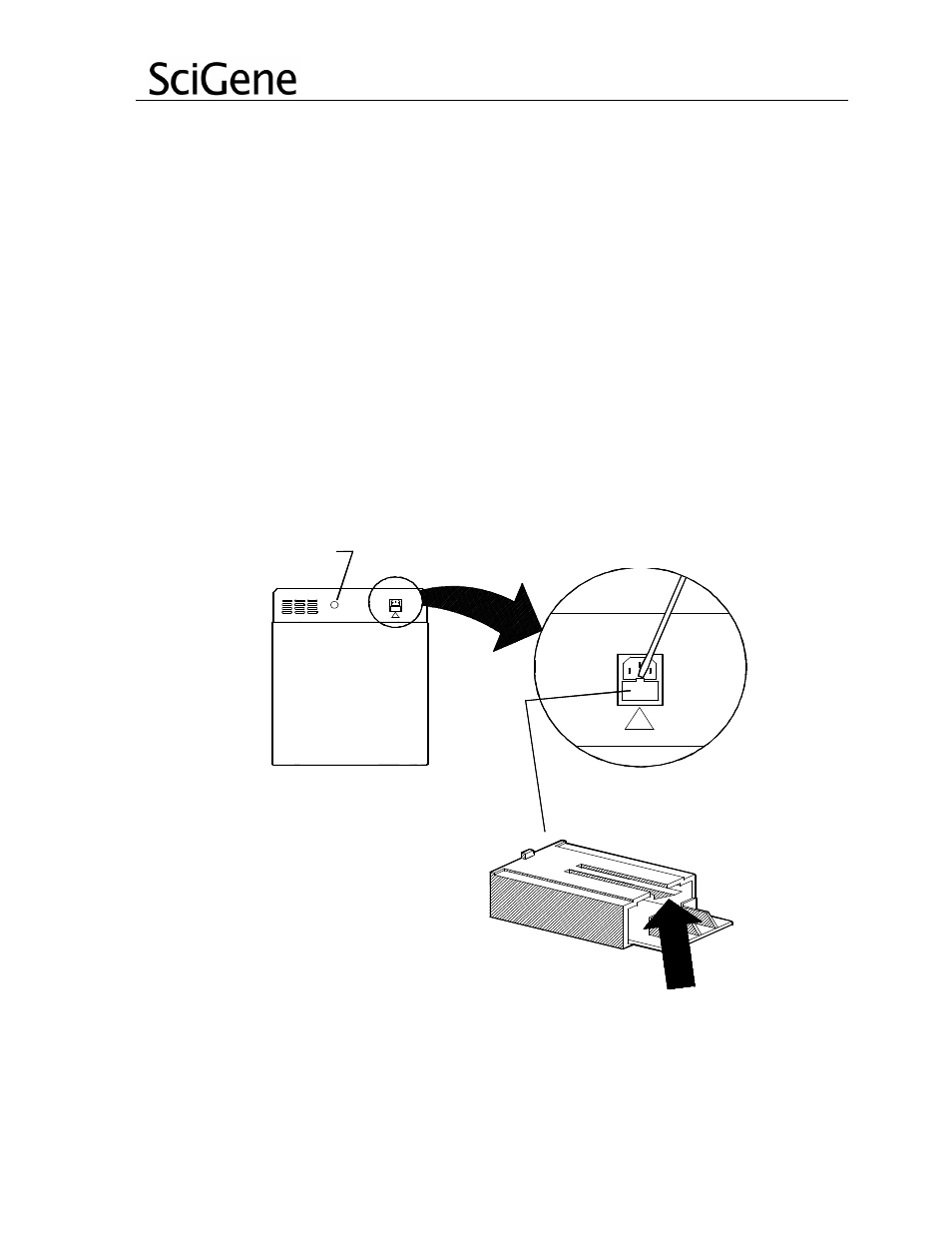

Unplug the cord and using a flat blade screwdriver, remove the
fuse block as shown in the illustration. Remove the fuse holder
from the block and gently remove the two fuses. A blown fuse will
appear dark.
Always replace a blown fuse with fuses matching the amperage
and voltage as shown on the label below the fuse block.
     
     
        
    
     
    
 
Digital Thermometer Jack
Use small screwdriver behind
tab to open Fuse Block
Fuse
Block
Back of Unit
Push clip up to
release Fuse Holder
