SP-MSTR-AC-11A
STR Manual
RD: NOV, 2003
RL: 11
KH
Page 3

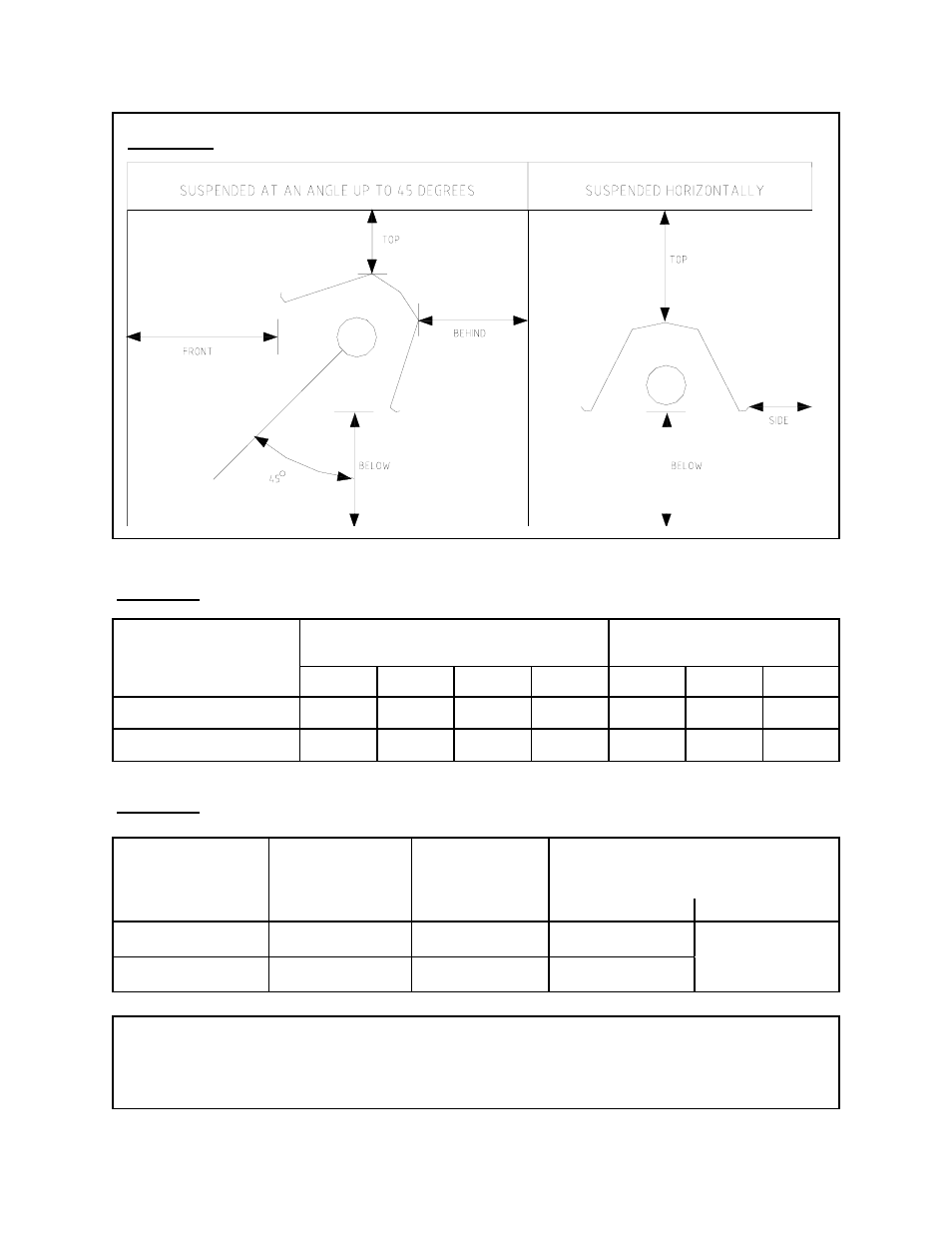

FIGURE 1 MINIMUM CLEARANCES TO COMBUSTIBLES
TABLE 2 MINIMUM CLEARANCES TO COMBUSTIBLES
MODEL
SUSPENDED AT AN ANGLE
UP TO 45 DEGREES
SUSPENDED
HORIZONTALLY
TOP BEHIND FRONT BELOW TOP SIDE BELOW
STR 60 2.0” 1” 17” 34” 1.5” 5.5” 34”
STR 45 4.5” 1” 29” 32” 4.5” 8.5” 32”
IMPORTANT: Continuous operation of single or multi-heater placement
must not cause any combustible material in storage to
reach a temperature in excess of 160
O F.
TABLE 3 RECOMMENDED HEATER PLACEMENT
MODEL
MOUNTING
HEIGHTS
(FEET)
MAXIMUM
DISTANCE
BETWEEN
HEATERS (FEET)
DISTANCE – OUTSIDE WALL
TO HEATER LONG AXIS
PARALLEL TO WALL (FEET)
HORIZONTAL ANGLE
STR 60 8 - 14 25 11 – 15 COMBUSTIBLE
CLEARANCE
STR 45 6 - 10 20 8 – 12
