Schwank STR-USA - Manual (Page 7)

SP-MSTR-AU-05A
STR Manual
RD: NOV, 2003
RL: 5
KH
Page 3

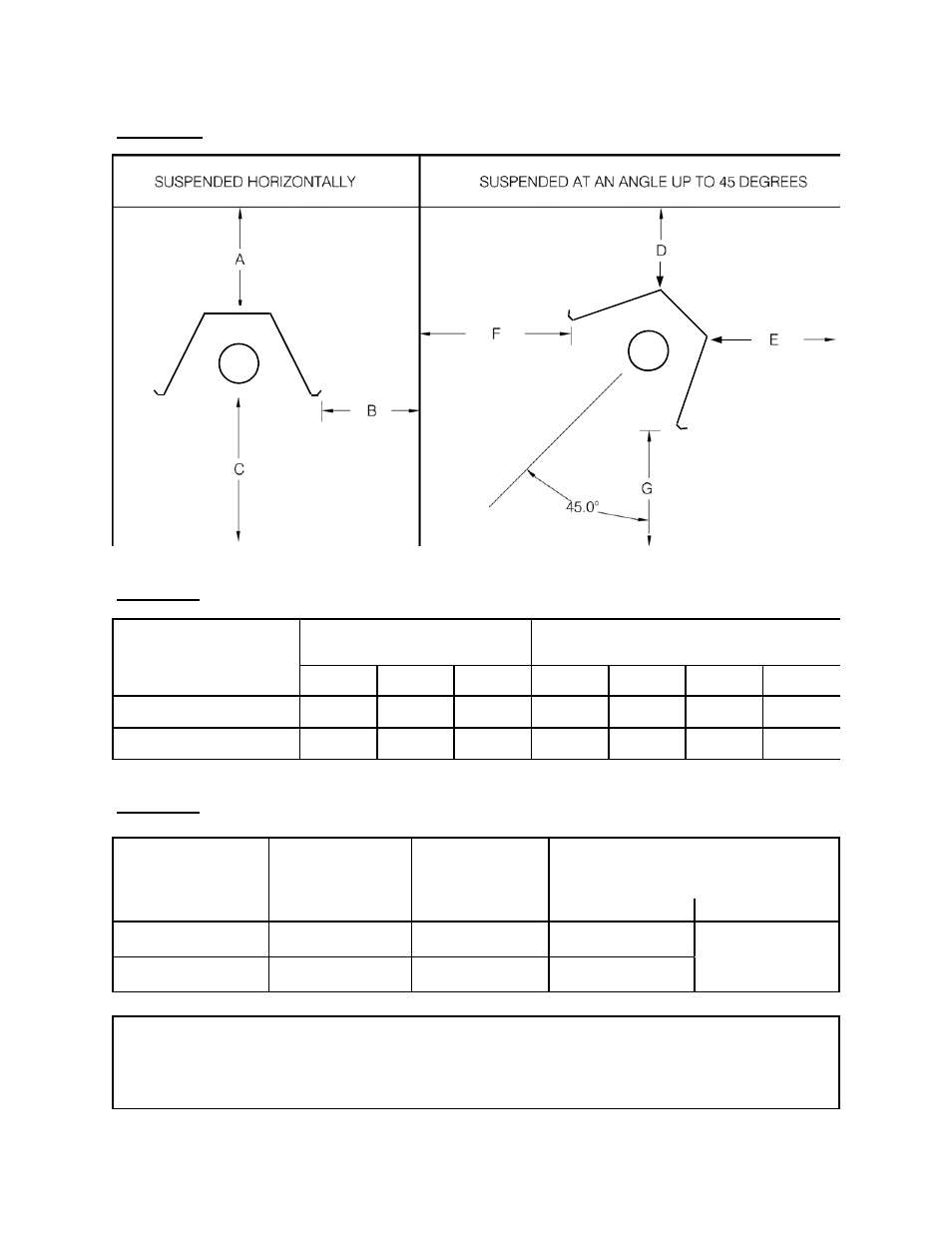

FIGURE 1 MINIMUM CLEARANCES TO COMBUSTIBLES
TABLE 2 MINIMUM CLEARANCES TO COMBUSTIBLES
MODEL
SUSPENDED
HORIZONTALLY
A B C D E F G
STR 60 1.5” 5.5” 34” 2.0” 1” 17” 34”
STR 45 4.5” 8.5” 32” 4.5” 1” 29” 32”
SUSPENDED AT AN ANGLE
UP TO 45 DEGREES
IMPORTANT: Continuous operation of single or multi-heater placement
must not cause any combustible material in storage to
reach a temperature in excess of 160
O F.
TABLE 3 RECOMMENDED HEATER PLACEMENT
MODEL
MOUNTING
HEIGHTS
(FEET)
MAXIMUM
DISTANCE
BETWEEN
HEATERS (FEET)
DISTANCE – OUTSIDE WALL
TO HEATER LONG AXIS
PARALLEL TO WALL (FEET)
HORIZONTAL ANGLE
STR 60 8 - 14 25 11 – 15 COMBUSTIBLE
CLEARANCE
STR 45 6 - 10 20 8 – 12
