Wiring diagram - fenwal 35-60 dsi control – Schwank sportSchwank User Manual
Page 15
sportSchwank Manual
IM080731
RD: July 2008
RL: 01A
BA
TH/W Thermostat
Input
GND System
Ground
V1 Valve
Power
V2 Valve
Ground
NC Alarm
S1
Remote Flame Sensor
Fenwal Control Terminal Designation
Fault Conditions:
The LED will flash on for 1/4 second,
then off for 1/4 second during a fault
condition. The pause between fault
codes is 3 seconds.
Error Mode
LED Indication
Internal Control Failure Steady on
Flame with No Call for
heat
2 flashes
Ignition Lockout
3 flashes

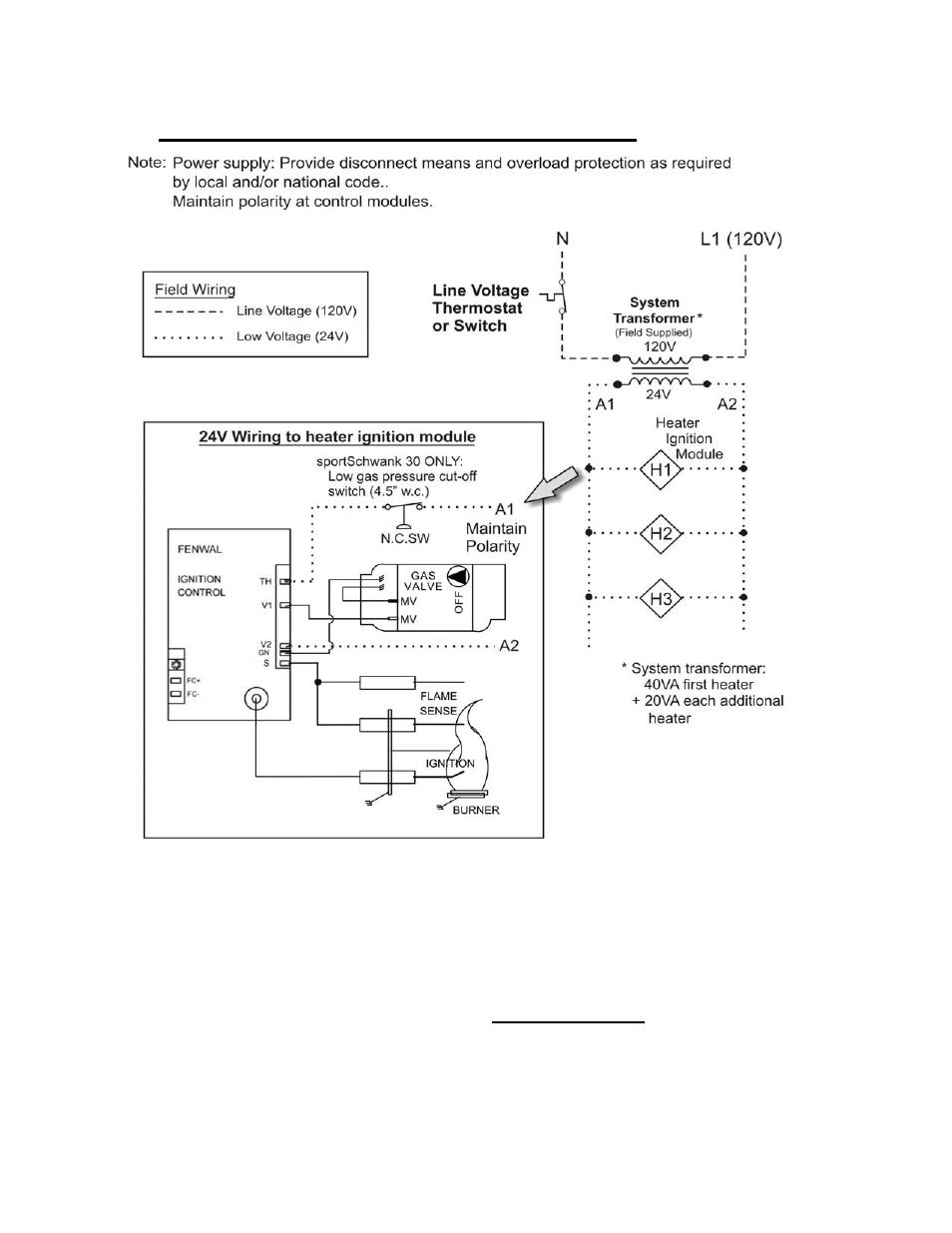

10. WIRING DIAGRAM - Fenwal 35-60 DSI Control
Page 12
