6. ASSEMBLY INSTRUCTIONS

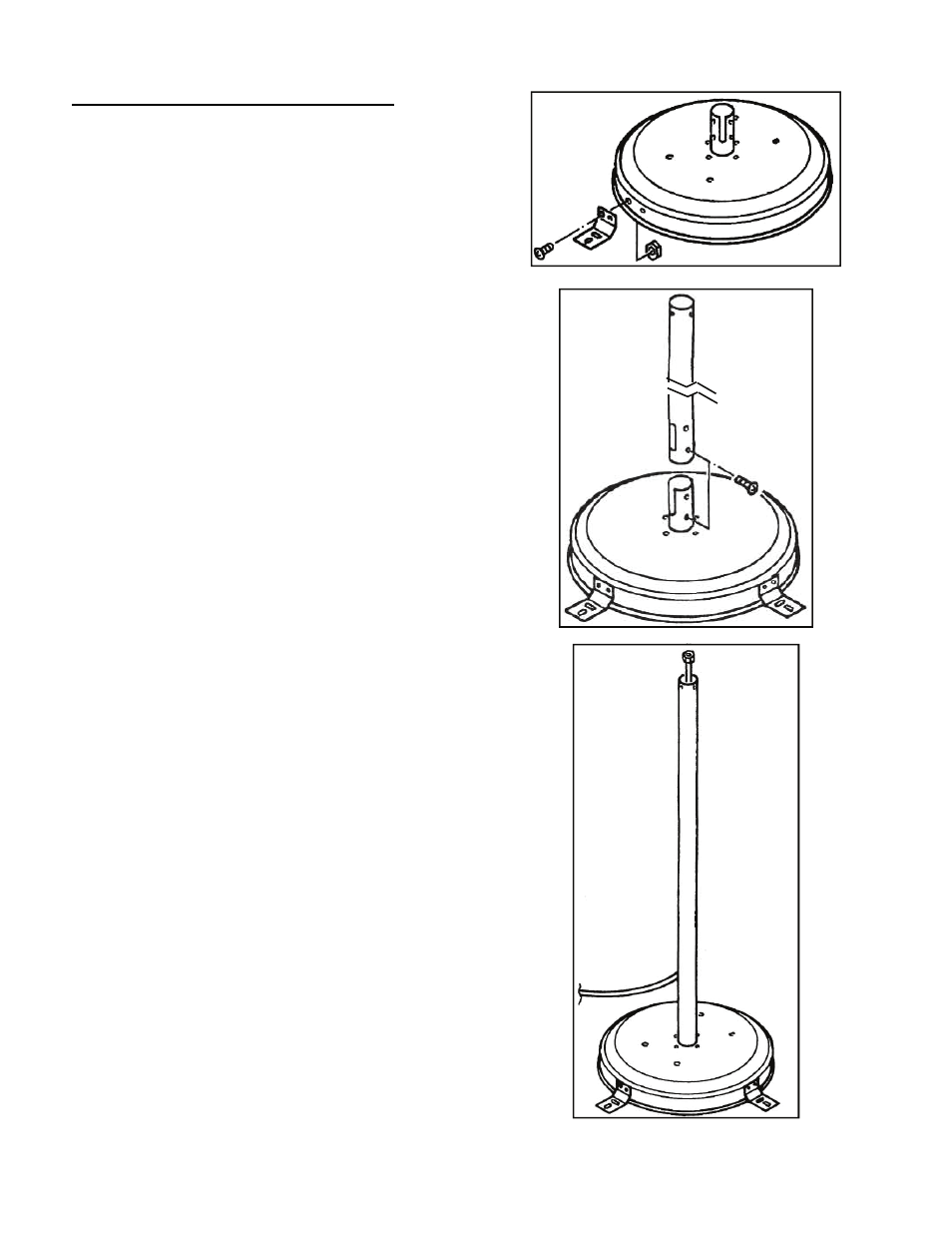

Using screws, place L-shaped stabilizers to
bottom base.
Secure with nut on inside of bottom base.
Page 5
Place post on the bottom of the base in up-
ward position.
Secure using screws.
Feed the gas hose provided either down from
the top of the post, or up through the side
opening at the bottom of the post.
If inserted from the top, push the gas hose all
the way down the post until it reaches the bot-
tom.
Pull the end of the hose out through the side
opening.
Fit the 1” x 7” ribbed gas hose protection
sleeve over the end of the gas hose connec-
tion and slide it all the way over the fitting onto
the hose.
