4. TOOLS REQUIRED FOR ASSEMBLY
Tools Needed: (not supplied)
Adjustable Wrench, Slip Joint Pliers, Phillips Screwdriver-Medium Blade (#2 or #3 blade), Ham-
mer, 3/8” Masonry
Drill Bit (if mounting on concrete patio), Teflon Plumbing Tape for Joints, Spray Bottle of Soapy
Water or Paint Brush and soapy water (to check leaks)
Models 4SN/L5 include stainless post and base.
Models 4BN/L6 include black powder coated post and base.
All other components are common for all models
Note: Gas Pressure Regulators are required (not supplied )
(see Connection and Testing)

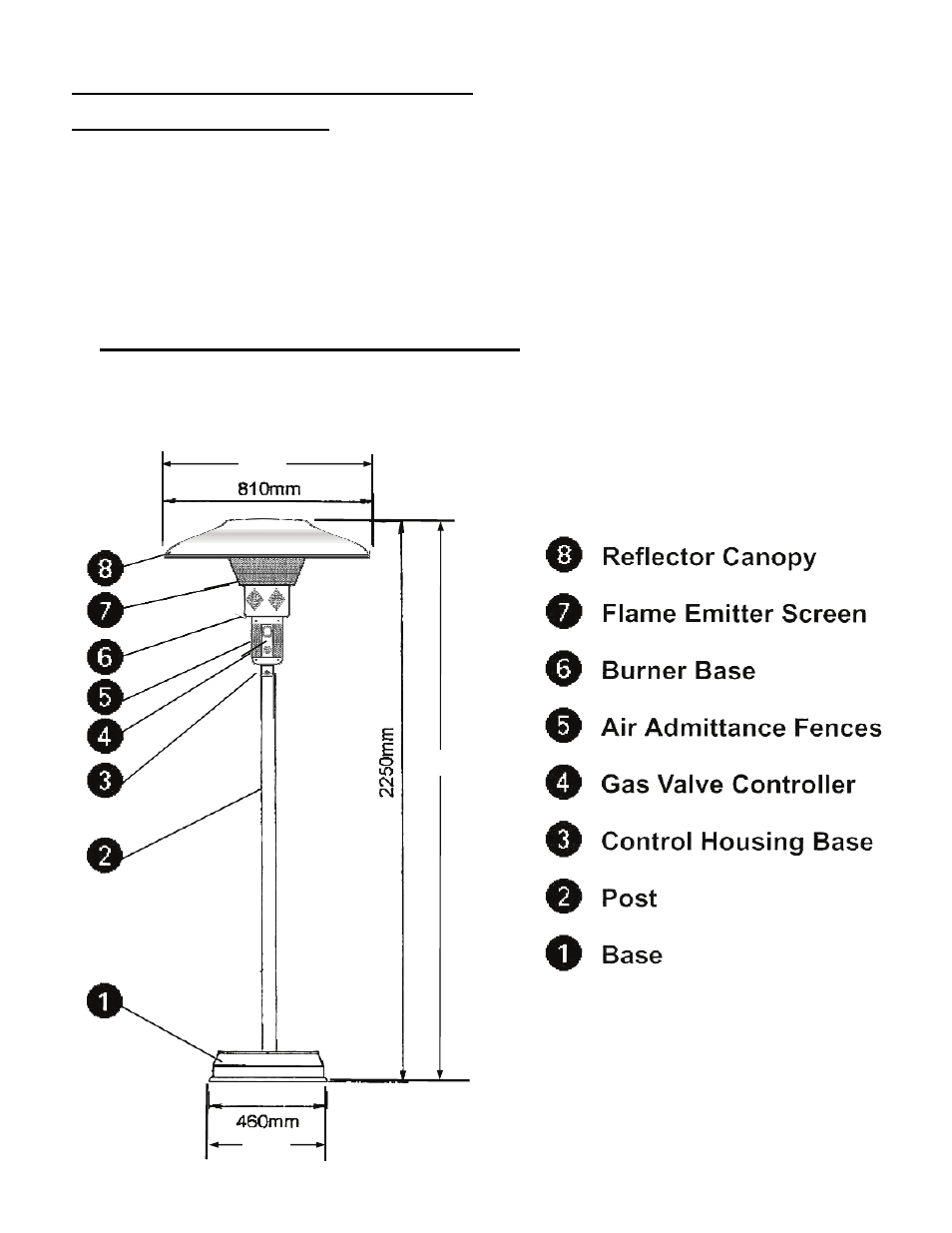

5. MAIN COMPONENTS AND DIMENSIONS
Page 4
32”
90.5”
18”
