SPW-JZ, STW-JZ / IWP, IW
I&O Manual IM101229
RL: 12B- BA
RD: AUG 2013

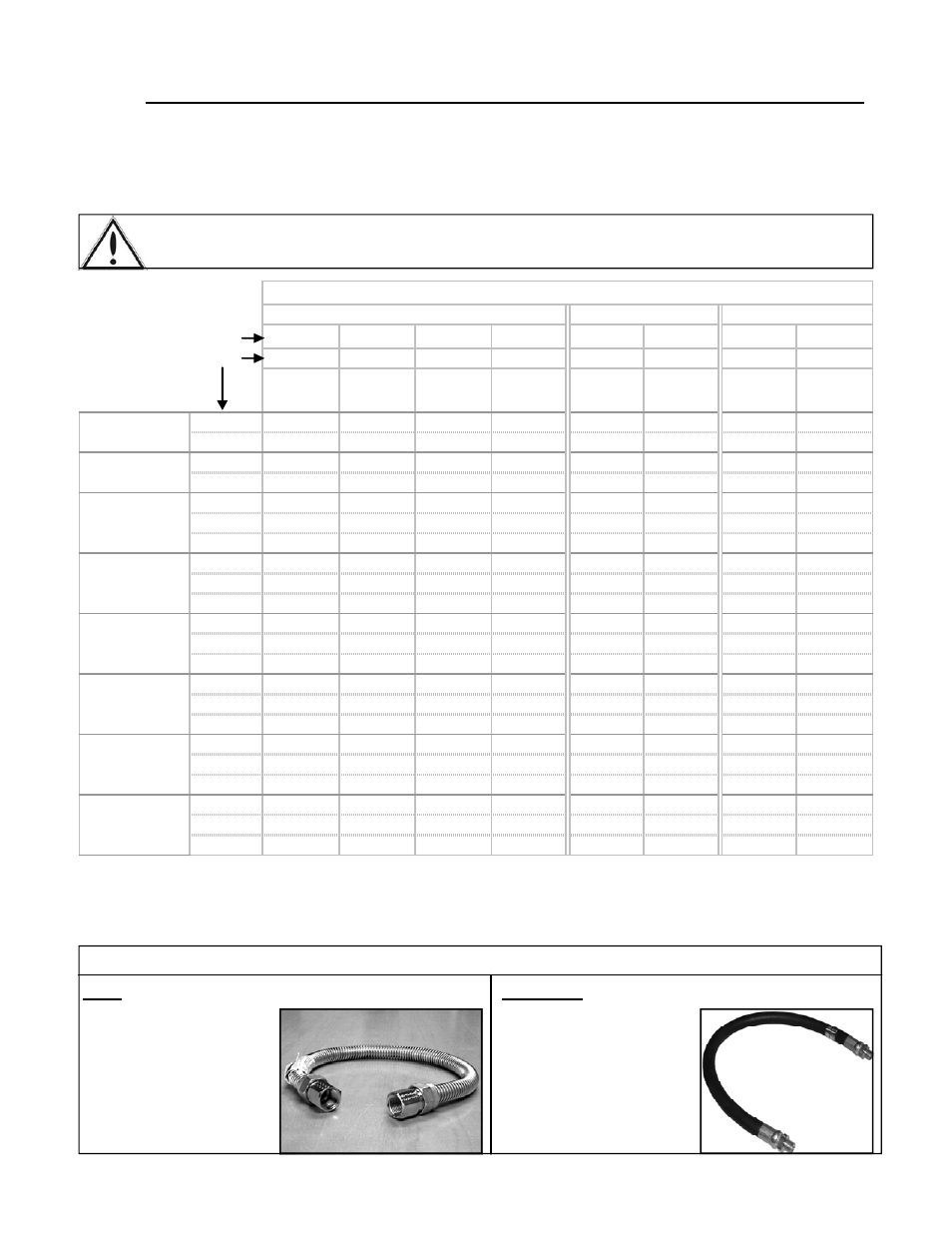

26A. BURNER & TUBE KIT ASSEMBLY CHART: SPW-JZ / IWP; STW-JZ / IW
Models
SPW-JZ /IWP
have a powder coated burner enclosure, and Models
STW-JZ /IW
have a stainless steel water resistant burner enclosure and aluminized steel tube/reflector sys-
tem. Commercial / industrial non-residential outdoor spaces and wet indoor environments.
See models STW-JZ2 / IW2 with Stainless Steel tube kits - next page
BEFORE INSTALLING: ENSURE you have the CORRECT TUBE KIT(s) for the
BURNER INPUT
70
120
170
210
165
165
120
165
Length
10'
20'
30'
40'
30'
30'
20'
30'
INPUT
(Btuh)
TS-4510-
JZ
TW-1420-
JZ
TW-1430-
JZ
TW-1040-
JZ
TW-F030-
JZ
TW-1030-
JZ
TW-0020-
JZ
TW-0030-
JZ
10'
1
20'
1
20'
1
30'
1
20'
1
30'
1
40'
1
30'
1
40'
1
50'
1+
1
30'
1
40'
1
50'
1+
1
40'
1
50'
1+
1
60'
1+
1
50'
1+
1
60'
1+
1
70'
1+
2
50'
1+
1
60'
1+
1
70'
1+
2
Stand-Alone tube kits require no additional tube kits.
Primary tube kits require at least one additional Secondary tube kit.
Secondary tube kits require a Primary tube kit.
Tube Kit Gross
Weight (lbs)
ALUMINIZED STEEL
TUBE KIT PART # & QUANTITY REQUIRED
Stand-Alone Kits
Primary Kits +
Secondary Kits
45,000
60,000
80,000
110,000
130,000
155,000
175,000
200,000
USA - Stainless Steel Flexible Gas Connector
130,000 or less:
JL-0771-XX - 1/2”x24”
150,000 or greater:
JL-0771-YY - 3/4”x36”
FLEXIBLE GAS CONNECTOR (Included in Burner Kit) - MUST INSTALL - see Section 13
CANADA - Type 1 Hose Gas Connector
130,000 or less:
JL-0771-RC - 1/2”x36”
150,000 or greater:
JL-0771-RB - 3/4”x36”
150,000
