The focus shield reflector system can be adjusted to either side up to 45° from horizontal. Note
that for both horizontal and angle mounting, the tube must be level along its length. Improper
mounting can result in overheating of controls and combustible materials. Use only non-
combustible mounting hardware.
10. FOCUS SHIELD REFLECTOR INSTALLATION

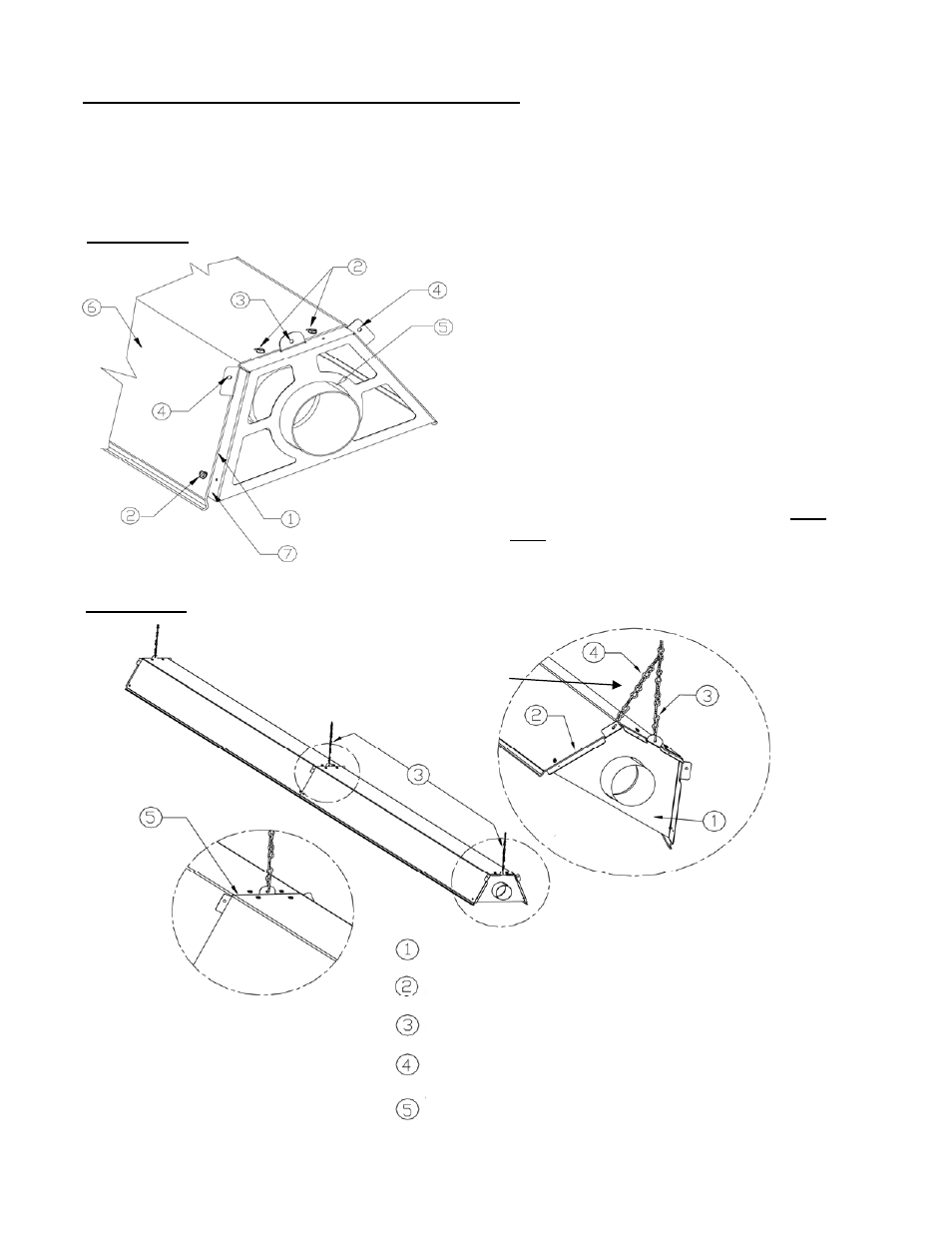

FIGURE 14 MOUNTING FOCUS SHIELD REFLECTOR TO HANGER
1 Webbed Hanger Flange under Reflector
2 Screws to secure Reflector to Plate
Hanger.
3 Tab for horizontal suspension
4 Tab for 45° suspension
NOTE: For suspension between 1° and 44°,
use both suspension points 3 and 4
(see Fig.15 below).
5 Opening for Tube
6 Reflector
7 The next Reflector will mount over and
onto this side of the Webbed Hanger.
FIGURE 15 HANGER ARRANGEMENTS
End plate hanger at burner or vent end
Plate hanger flange fitted UNDER reflector
System support chain
Auxiliary chain for angle adjustment 1° to 44°
(vary the top junction to adjust reflector angle)
Webbed hanger fitted UNDER reflectors
Angle mount
1° to 44°
See more info next page
