S&S Cycle Stealth Air Cleaners for S&S X-Wedge Engines - Manual (Page 3)

7. Hold back plate to throttle body, and start all three screws in
throttle body as shown in Picture 8, but do not final tighten.
8. Apply thread locking compound to 5/16-18 x .750 button head
screws and fasten back plate mounting tabs to cylinder heads as
shown in Picture 9. Do not final tighten.
9. Final tighten all fasteners to the following torque specifications:
1/4" fasteners 90-120 in-lb
5/16" fasteners 15 ft-lb
10. Hold filter and filter top plate to back plate as shown. Make sure
the arrow and the word “DOWN” on top cover are positioned at
the bottom.
11. For Muscle cover kit, apply thread locking compound to hex head
hood-pin screws and fasten top plate and filter to back plate as
shown in Picture 10. Tighten hood-pin screws to the low end of
the torque spec (90-100 in-lb) and rotate clockwise until the holes
for the lynch pin are horizontal. For covers with single center
mounting bolt, skip to step 12
12. For covers with single center mounting bolt, apply thread locking
compound to threads of two 1/4-20 x .750" button head screws
#500-0060 and secure top plate and filter to back plate as shown
in Picture 11. Tighten to 90-100 in-lb.
13. For Muscle cover kits install cover over mounting studs and place
a washer #500-0094, spring #500-0093 and another washer #500-
0094 over each stud. While pushing the washers toward the cover
to compress the springs, insert the miniature hood-pins (lynch
pins) through the holes in the studs to secure the air cleaner cover
to the air cleaner. See Picture 12
14. For covers with single center mounting hole, place 5/16-18 x .500"
socket button head screw #50-0296-S through hole in cover.
Apply thread locking compound and thread into air cleaner top
plate in location shown in Picture 11. Torque to 10 ft-lb.

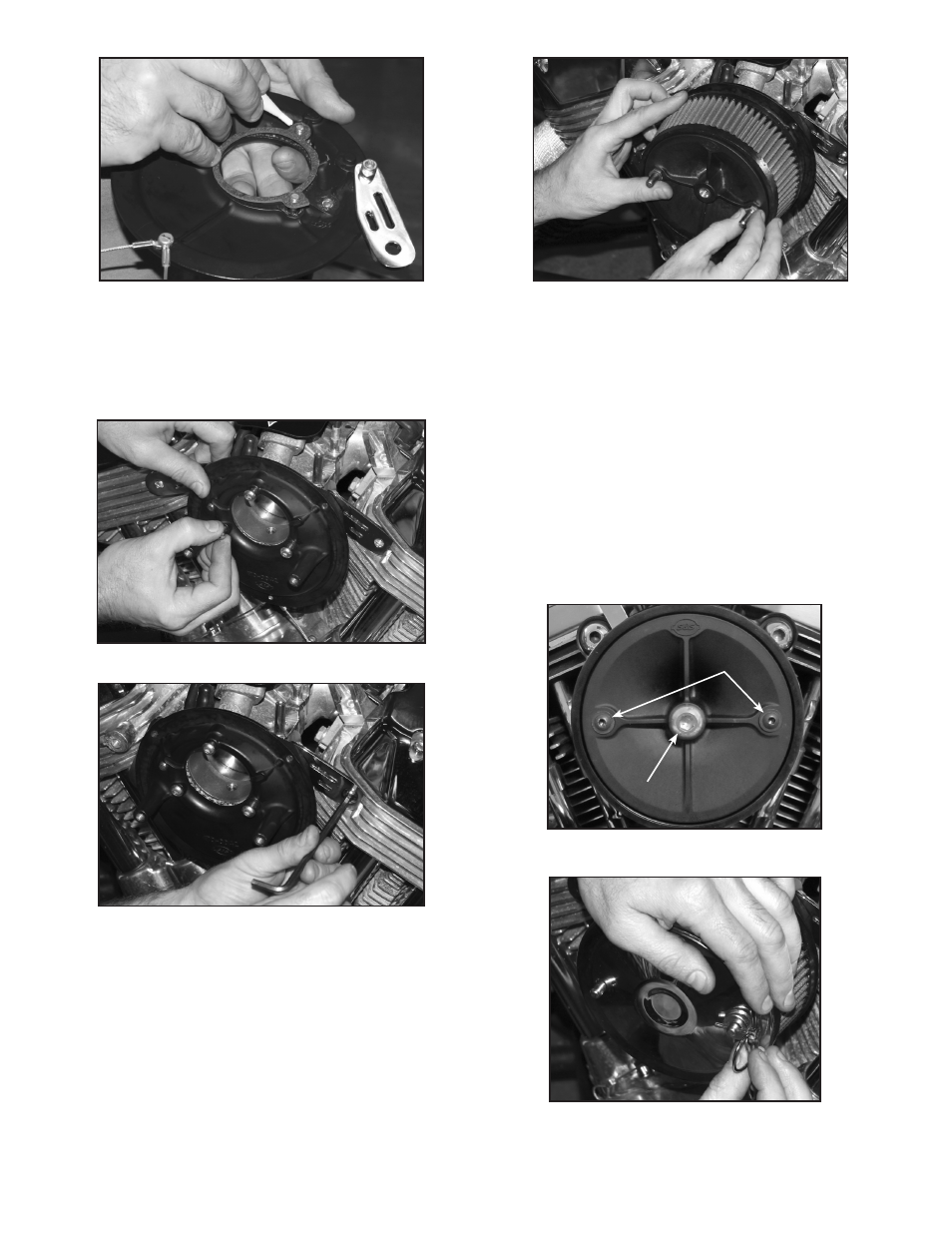

Picture 7 Picture 10
Picture 12
Picture 8
Picture 9
510-0060
50-0286-S
Picture 11
3
