S&S Cycle Rocker Boxes for 1966-84 Big Twin User Manual
Page 4

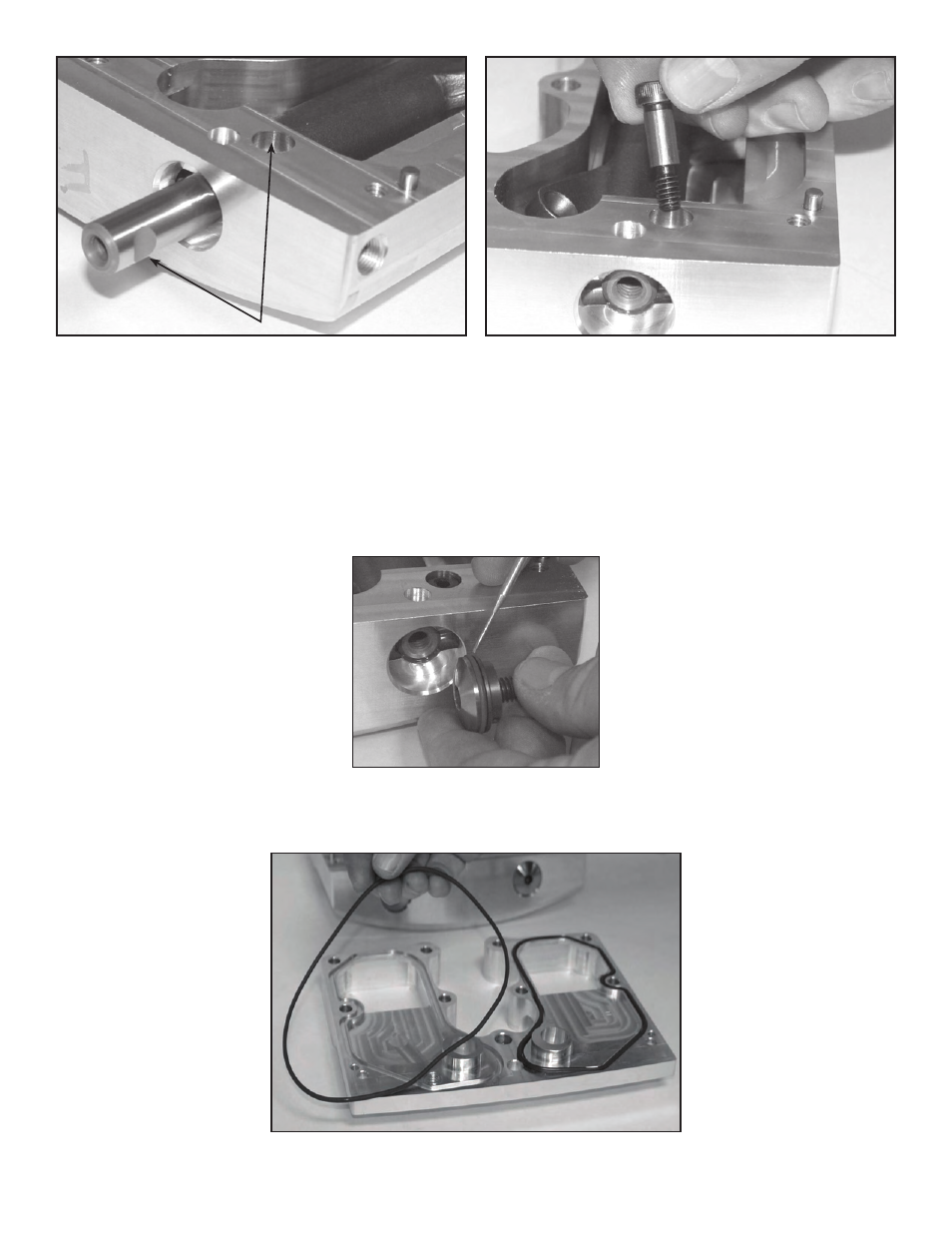

6. Install rocker shaft. Align notch in rocker shaft with the retaining bolt hole. See Picture 5, above left.
7. Install rocker shaft retaining screw (50-0318) using 242 Loctite® and torque to 90 in-lbs. See Picture 6, above right.
8. Install O-ring (50-7962) on rocker are shaft plug (50-8340). See Picture 7, below. Apply a light coating of oil to the O-ring and install plug using
242 Loctite® torque plug to no more then 90 in-lbs.
NOTE: During disassembly you must loosen rocker shaft plug before you remove the rocker shaft retaining bolt. After removing plug and retaining bolt use
plug to remove rocker shaft.
9. Place O-rings (50-7961) into the grooves in the lower rocker box. Use care not to pinch the O-rings. See Picture 8, below.
4
Picture 5
Picture 6
Picture 7
Picture 8
