4
12- Apply blue thread locker to the 4, 1/4-20 x 3/8” low head cap screws and torque to 60 in-lbs.
13- Verify that there are no leaks around inner and outer primary covers, output, inspection and derby covers.
Models with mid controls
11- Follow steps 1-10 above.
12- Inspect the mid shift control shaft o-rings for wear or damage, replace if necessary, o-rings for the shaft are not included in this kit.
13- Install the inspection cover 41/8” ID x 1/16 o-ring seal into the o-ring groove and slide the mid control inspection cover over the shift shaft
into place.
14- Apply blue thread locker to the 4, 1/4-20 x 3/8” low head cap screws and torque to 60 in-lbs.
15- Reinstall the mid shift lever and tighten to the recommended torque, see appropriate service manual. See Picture 8.
16- Verify that there are no leaks around inner and outer primary covers, output, inspection and derby covers.

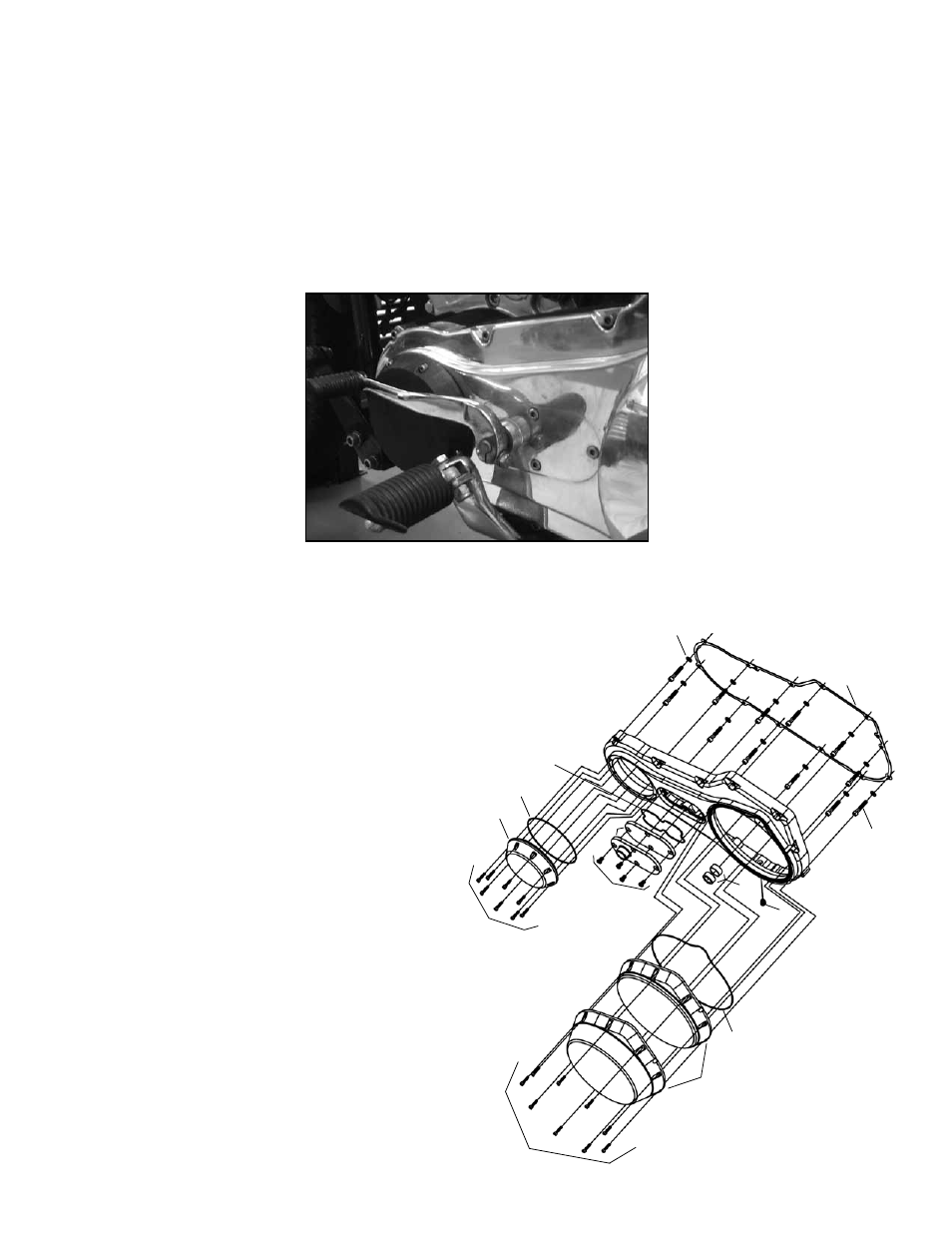

Picture 8
Primary Cover 1989-'06 Harley-Davidson® Softail® and 1991-05 Dyna® ........ 56-4040
1- Derby cover, primary, billet
Race ..................................................................................................... 56-4043
Street ................................................................................................... 56-4044
2- Inspection cover, primary, billet
Mid control .......................................................................................... 56-4045
Forward control ................................................................................... 56-4046
3- Output cover, primary, billet ................................................................... 56-4047
4- Bushing
.700 ID (1994-later) ............................................................................. 50-0421
.875 ID (1993-earlier) .......................................................................... 50-0422
5- Cover, primary, gasket (10 pack) ............................................................... 56-4048
6- SHCS 1/4-20 x 13/8 Stainless (12 pack) ............................................................50-1086
7- SHCS 8-32 x 3/4 Stainless (17 pack) ................................................................50-1087
8- LHSC 1/4-20 x 3/8 Stainless (12 pack) ..............................................................50-1088
9- Washer 17/64 x 1/2 x 1/16 Stainless (12 pack) ......................................................50-1089
10- Magnetic plug, 1/8-27 ............................................................................... 50-8334
11- O-ring, Buna, 83/4 ID x 1/16
(10 pack) ..............................................................50-1090
12- O-ring, Buna, 5" ID x 1/16" (10 pack) ..............................................................50-1091
13- O-ring, Buna, 41/8" ID x 1/16" (10 pack) ............................................................50-1092
14- SHCS 8-32 x 5/8" Stainless (10 pack) ............................................................106-2954
REPlACEMENT PARTS FOR BIllET PRIMARy COVER
(1989-'06 Softail® and 1991-'05 Dyna® Models with Forward and Mid Controls)
9
5
6
10
4
11
1
14
8
2
7
3
12
13
