RKI Instruments 65-2451RK-04 User Manual
Page 9
65-2451RK-04 Hydrogen Transmitter • 5

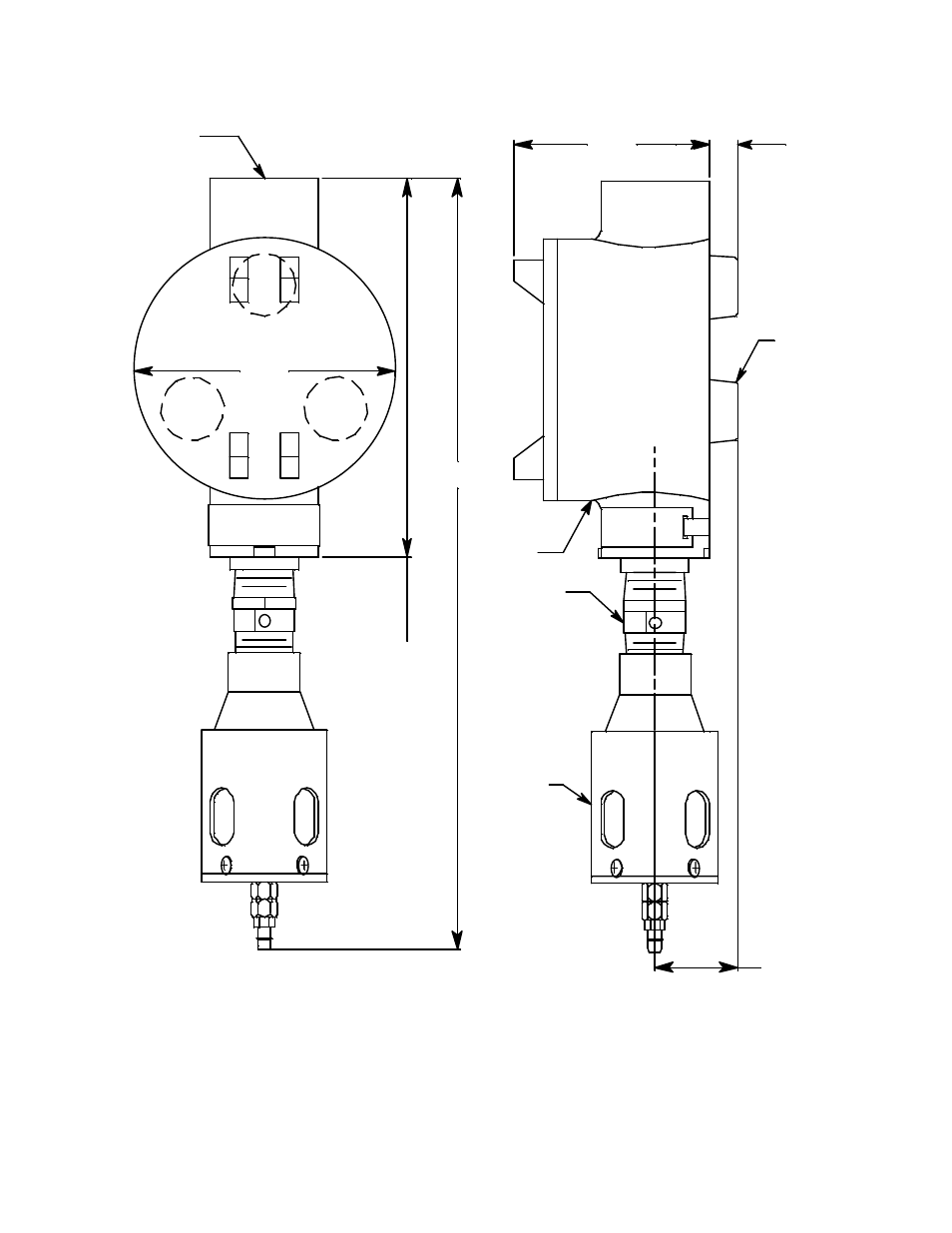

Figure 2: Mounting the Hydrogen Transmitter
2.
At the monitoring site you select, hang or mount the detector junction box with the
detector facing down (see Figure 2).
3.
Install 3/16 inch I.D. flexible polyurethane tubing to the fitting at the bottom of the
calibration cup/splash guard and route it to an accessible area that is close to the
amplifier junction box. See the “Parts List” on page 19 for available tubing.
.3 8
2. 70
Rub ber
Spacer,
3X
J-Box
3/ 4 NPT
Fem ale
3. 65
Hydrogen
Det ector
10.30 M AX
Calibration
Cup /Splash
Gua rd
5. 25
1. 13
