RKI Instruments 65-2405RK-03 User Manual
Page 9
65-2405RK-03 Combustible Gas Transmitter • 5

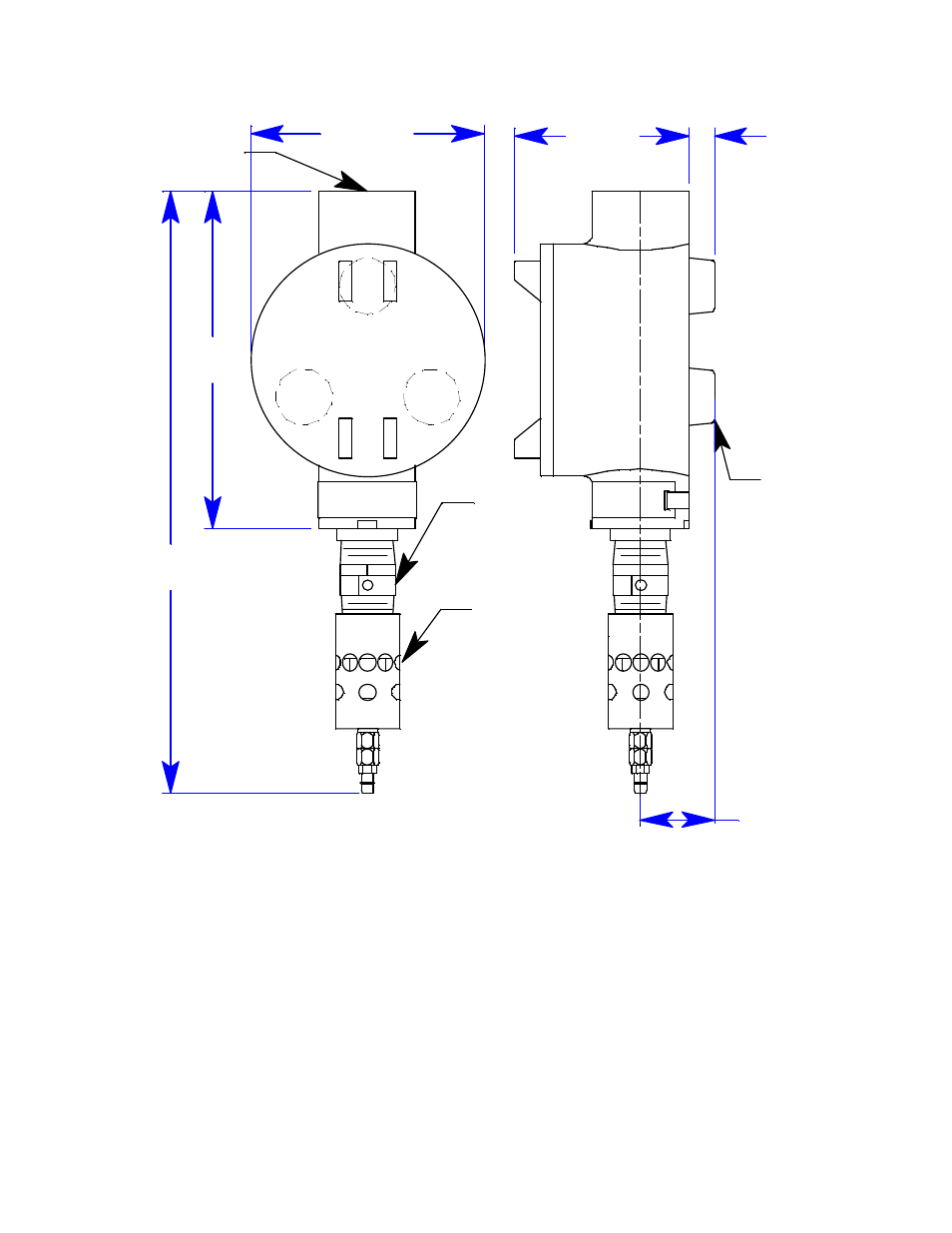

Figure 2: Mounting the Combustible Gas Transmitter
2.
At the monitoring site you select, hang or mount the detector junction box with the
detector facing down (see Figure 2).
3.
Install 3/16 inch I.D. flexible polyurethane tubing to the fitting at the bottom of the
calibration adapter and route it to an accessible area that is close to the amplifier
junction box. See the “Parts List” on page 19 for available tubing.
3/4 NPT
Conduit Hub
Ø3.65
2.70
.38
9.25 Max
5.25
Rubber
Spacer,
3X
1.13
Calibration
Adapter
Combustible
Gas
Detector
