4 • 65-2405RK Combustible Gas Transmitter
from a mounting surface and ensure that there is enough room to install a calibration cup
on the detector during calibration.
Installation
This section describes procedures to mount the combustible gas transmitter in the
monitoring environment and wire the transmitter to a controller.
Mounting the Combustible Gas Transmitter
1. Select a mounting site that is representative of the monitoring environment. Consider
the following when you select the mounting site.
• Select a site where the transmitter is not likely to be bumped or disturbed. Make
sure there is sufficient room to perform start-up, maintenance, and calibration
procedures.
• Select a site where the target gas is likely to be found first. For lighter gases,
mount the detector near the ceiling; for heavier gases, mount the detector near the
floor.

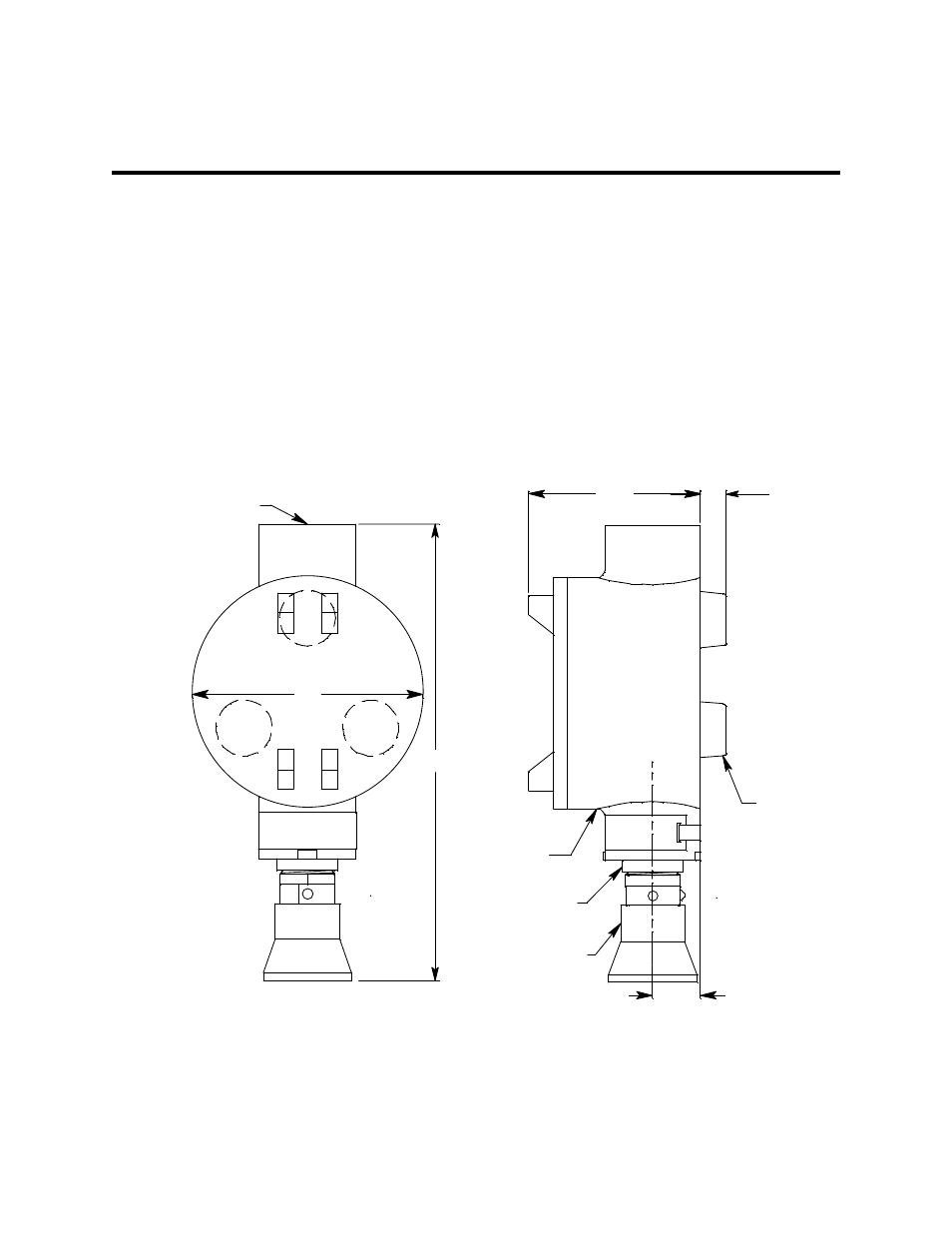

Figure 2: Mounting the Combustible Gas Transmitter
2. At the monitoring site you select, hang or mount the junction box with the detector
facing down (see Figure 2).
J Box
Rubber
Spacers,
3X
.75
2.70 .38
3.65
3/4 NPT Female
Combustible
Detector
3/4 x 1/2 Reducing
Bushing
7.5 max
