RF-Link WHD-5001 Wireless HD A/V sender - Manual (Page 2)

2.Package Contents 4.Setup Guide
4
Transmitter
Receiver

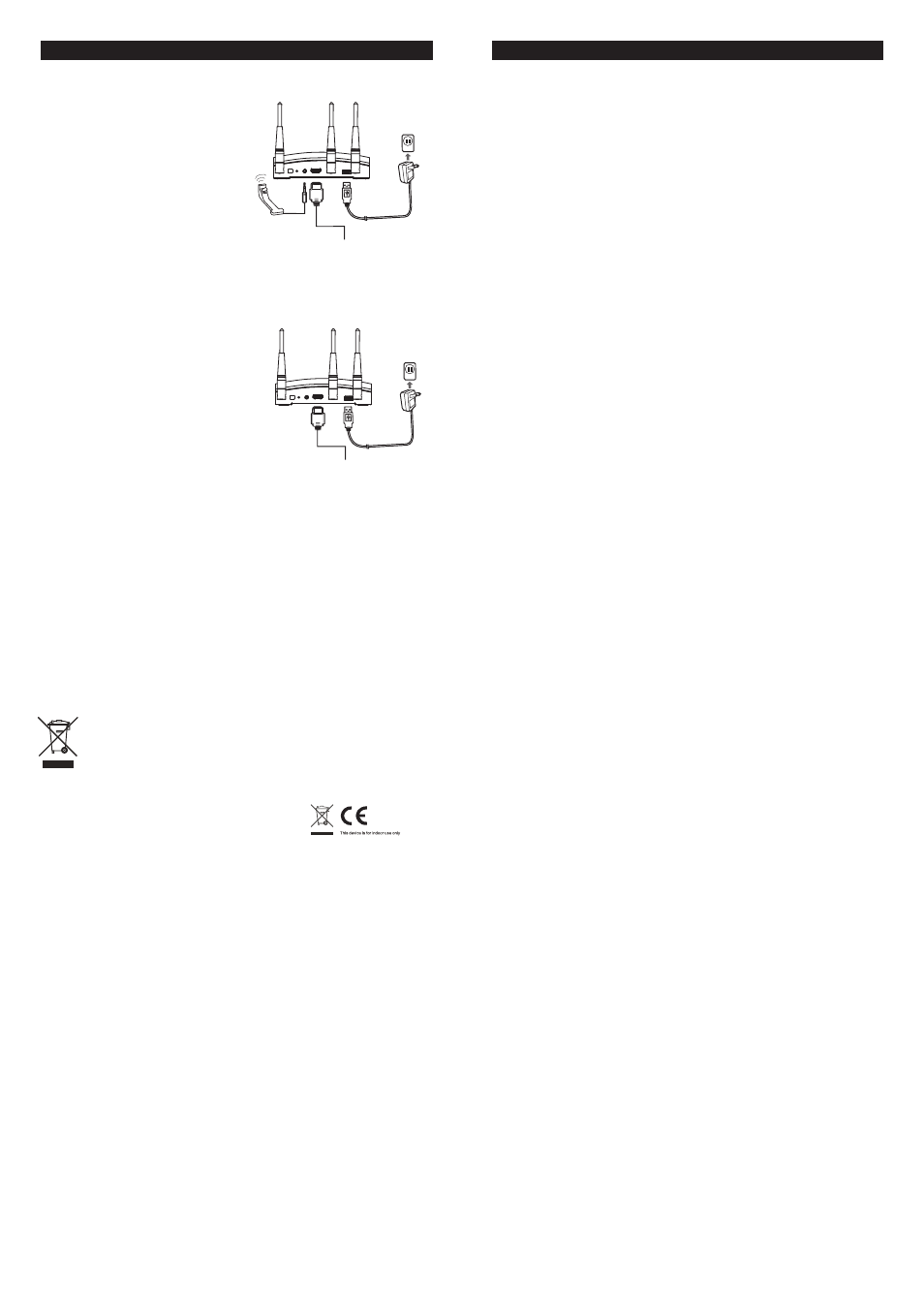

1. Connect HDMI cable
between transmitter and
your source device (Set top
box, Blue Ray DVD
player....).
2. Connect USB plug of power
adapter to transmitter, then
plug in power to an outlet.
3. Place IR Blaster in close
proximity to IR sensor of
your source device.
1. Connect HDMI cable
between receiver and your
receiving device (TV,
Monitor, Speaker....).
2. Connect USB plug of power
adapter to receiver, then
plug in power to an outlet.
Transmitter(TX)
IR Blaster
To AV Equipment
Receiver(RX)
To TV
5
2.Package Contents 5.Optimizing System Performance
Like all wireless electronic products, the system's
performance may
be affected by any obstruction
between transmitter and receiver. Please follow below
recommendations in order to create an optimal
environment, and a proper placement of the system will
ensure a strong connection for superior performance.
1. Avoid multiple systems in the same room if possible.
2. Avoid having 5.0 GHz WLAN or cordless phone in the
same room if possible.
3. Do not place either transmitter or receiver on a metallic
rack.
4. Place transmitter as high as possible.
5 . M a x i m u m o p e r a t i n g d i s t a n c e i s a p p r o x i m a t e l y 2 0
m e t e r s o r 6 5 f e e t w i t h c l e a r l i n e o f s i g h t , a n d a c t u a l
performance may vary depends on user ’s environment.
6 . P l e a s e k e e p i n m i n d t h e s y s t e m m a y b e a ff e c t e d b y
interference from other wireless products as
well as ,
signal attenuation (weakening) due to the proximity
o f c e r t a i n o b j e c t s / m a t e r i a l s s u c h a s w a l l s f l o o r s , ,
doors and other construction materials that contain ,
m e t a l . L a r g e h o m e a p p l i a n c e s m a y a l s o a ff e c t
p e r f o r m a n c e s u c h a s r e f r i g e r a t o r s w a s h e r s a n d ,
dryers.
6
WEEE Directive & Product Disposal
At the end of its serviceable life, this product should
not be treated as household or general waste. It
should be handed over to the applicable collection
point for the recycling of electrical and electronic
equipment, or returned to the supplier for disposal.
TTD-B5001T
TTD-B5001R
408-000660-00
