Operation
Target group: Operators
Controls and operation

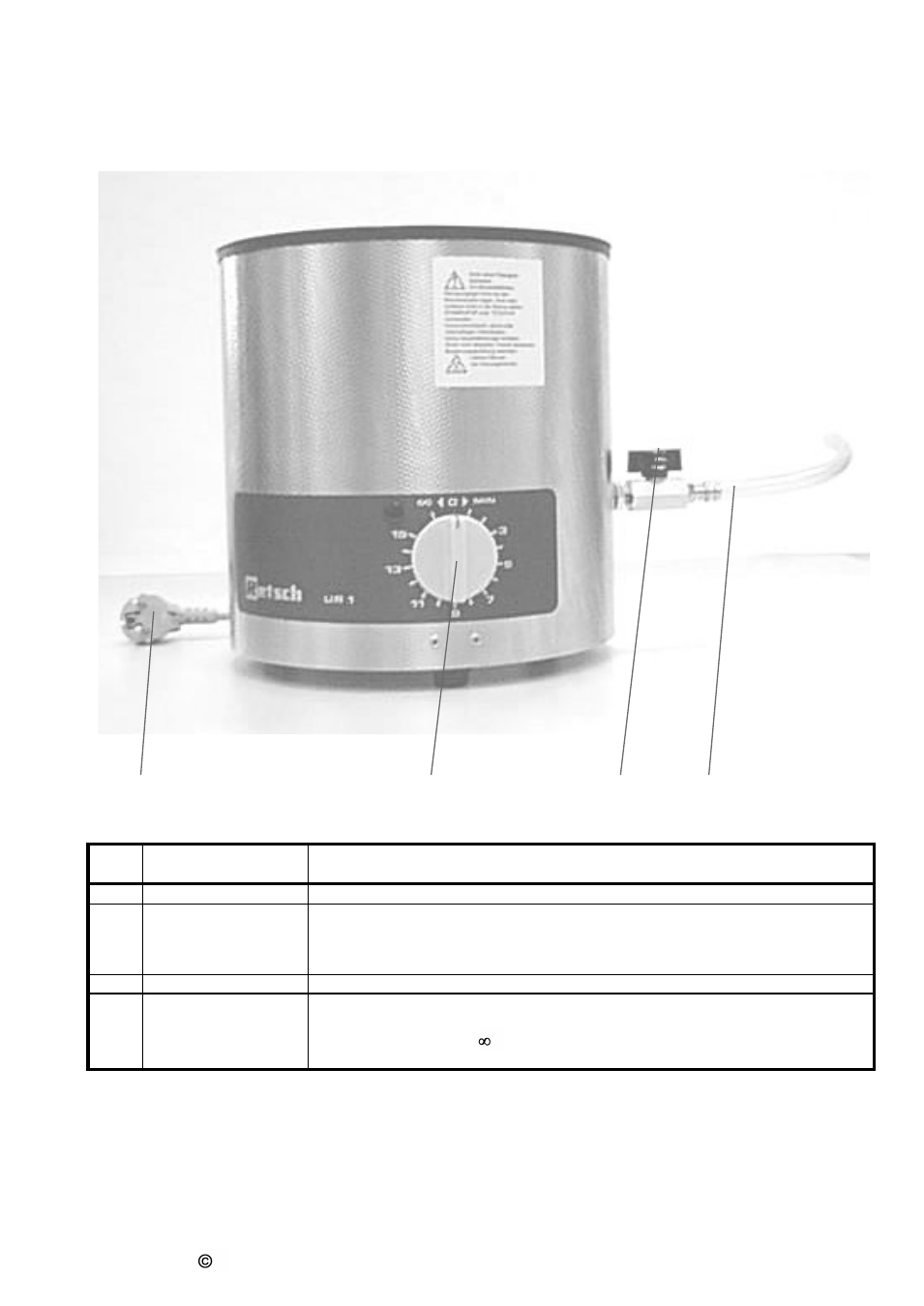

Graphical representation of the controls:
1 4 2 3
Overview table
No. Description Function
1 Power cord Connects the ultrasonic cleaner to the mains power supply.
2 Ball valve Open =
Liquid can flow off from the vibratory trough
Closed =
Liquid is prevented from flowing out of the vibratory trough.
3 Discharge hose Connects the ultrasonic cleaner to a water collecting point.
4 Knob Switches the ultrasonic cleaner ON or OFF, and permits the setting of machine running
times.
Anti-clockwise to position
= Continuous operation
Clockwise = Running times of 0 to 15 mins. can be set
