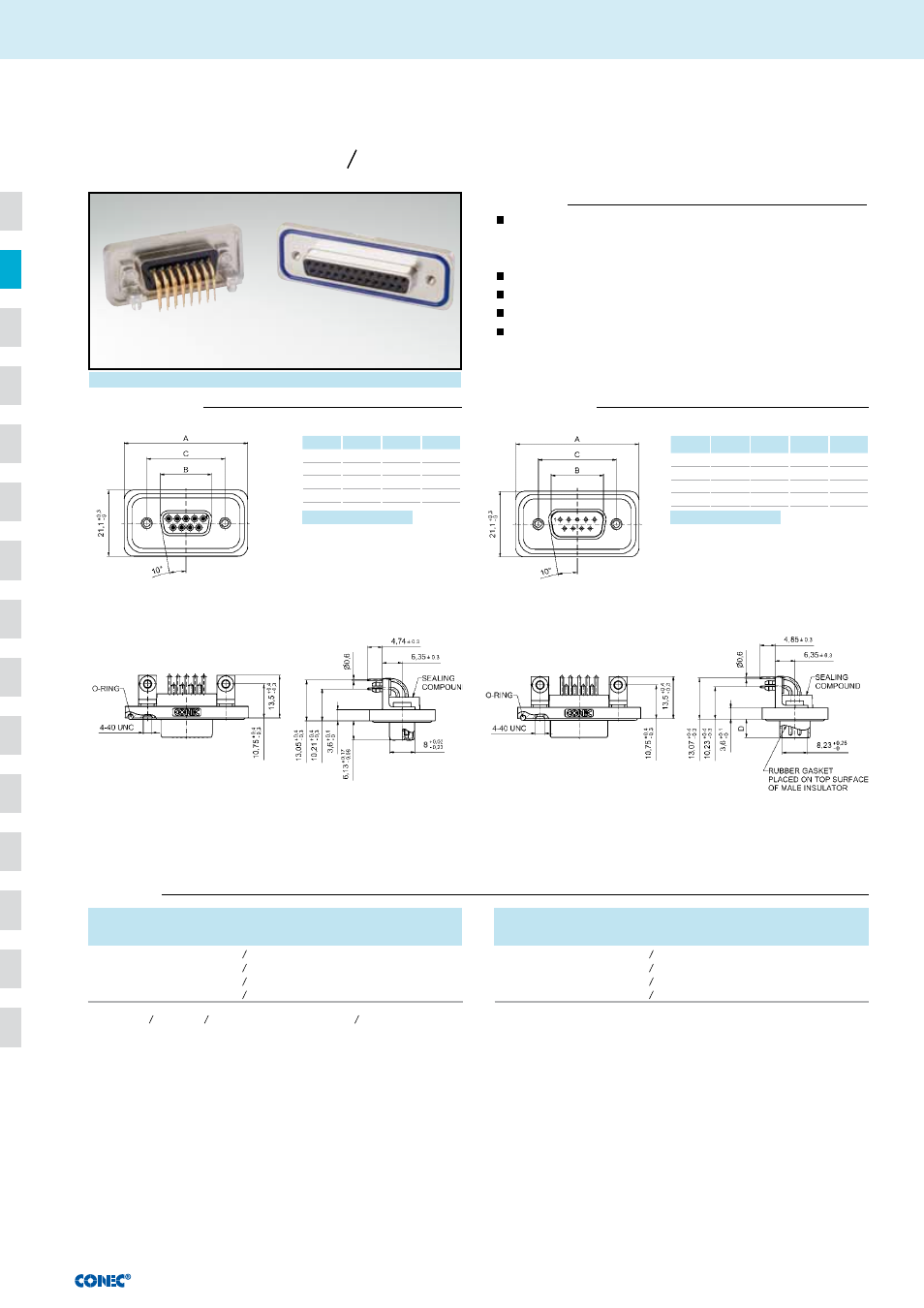

IP67 D-SUB Connectors
Description
Order data
Socket connector
Plug connector
D-SUB Standard – IP67 Solid Body
Solder pin – Angled – .402" 10.2 mm – Precision machined contacts – Metal bracket
PCB clip .122” 3.1 ± .004” 0.10 mm hole diameter and .063” 1.6 mm circuit board thickness
Mounting style:
mounting bracket, 4-40 UNC PCB clip
including hex locking bolt
Quality class 3 (also available in quality class 1)
One-piece zinc die-cast nickel plated shell
IP67 for harsh environments, pressure-proof up to 1.45 PSI
Higher protection on request
Plug connector
No. of pos.
Mounting style 4-40 UNC
Part Number
09
Mounting bracket PCB clip
15-000733
15
Mounting bracket PCB clip
15-000743
25
Mounting bracket PCB clip
15-000753
37
Mounting bracket PCB clip
15-000763
Socket connector
No. of pos.
Mounting style 4-40 UNC
Part Number
09
Mounting bracket PCB clip
15-000773
15
Mounting bracket PCB clip
15-000783
25
Mounting bracket PCB clip
15-000793
37
Mounting bracket PCB clip
15-000803
Mounting style: Mounting bracket, PCB clip
Mounting style: Mounting bracket, PCB clip
