D-sub standard – ip67 solid body, Ip67 d-sub connectors, One-piece zinc die-cast nickel plated shell – Northern Connectors Conec IP67 D-Sub Connectors User Manual
Page 14: Higher protection on request

2|39
No. of pos.
A
+0.2
B
+0.2
C
D
09
39.40
16.81
25.00
+ 0.12
- 0.13
6.00
+ 0.12
- 0.18
15
47.70
25.14
33.32
+ 0.13
- 0.12
6.00
+ 0.12
- 0.18
25
61.40
38.86
47.04
± 0.13
5.99
- 0.3
37
78.00
55.32
63.50
± 0.13
5.99
- 0.3
No. of pos.
A
+0.2
B
-0.2
C
09
39.40
16.46
25.00
+ 0.12
- 0.13
15
47.70
24.79
33.32
+ 0.13
- 0.12
25
61.40
38.50
47.04
± 0.13
37
78.00
54.96
63.50
± 0.13

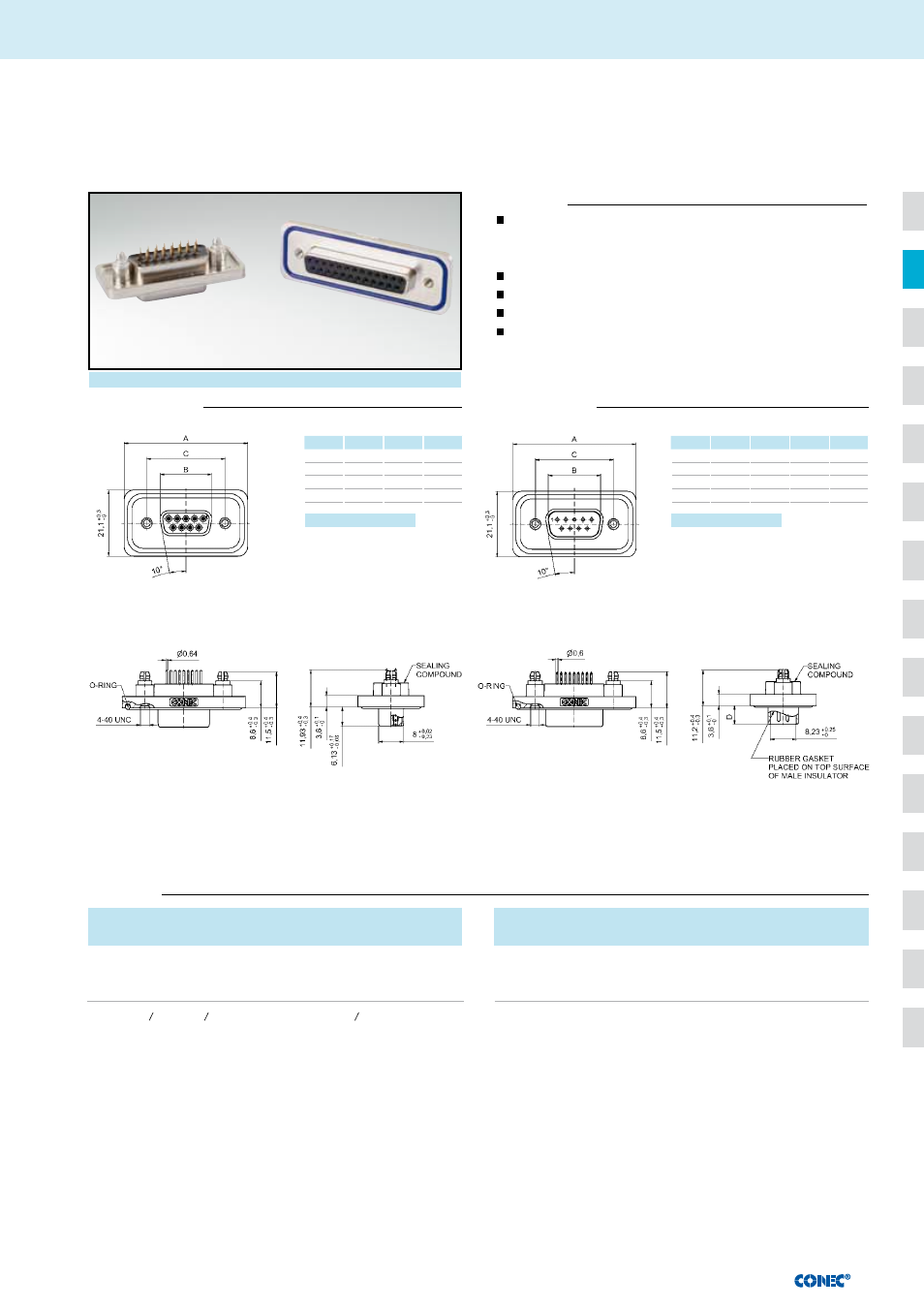

PCB layout Kat1kFUA
PCB layout Kat1kFUA
RoHS compliant
IP67 D-SUB Connectors
Description
Order data
Socket connector
Plug connector
D-SUB Standard – IP67 Solid Body
Solder pin – Straight – Precision machined contacts
Socket connector
No. of pos.
Mounting style 4-40 UNC
Part Number
09
Threaded rear spacer PCB clip
15-000453
15
Threaded rear spacer PCB clip
15-000463
25
Threaded rear spacer PCB clip
15-000473
37
Threaded rear spacer PCB clip
15-000483
Plug connector
No. of pos.
Mounting style 4-40 UNC
Part Number
09
Threaded rear spacer PCB clip
15-000413
15
Threaded rear spacer PCB clip
15-000423
25
Threaded rear spacer PCB clip
15-000433
37
Threaded rear spacer PCB clip
15-000443
PCB clip .122” 3.1 ± .004” 0.10 mm hole diameter and .063” 1.6 mm circuit board thickness
Mounting style:
4-40 UNC threaded rear spacer with PCB clip
including hex locking bolt
Quality class 3 (also available in quality class 1)
One-piece zinc die-cast nickel plated shell
IP67 for harsh environments, pressure-proof up to 1.45 PSI
Higher protection on request
