RJ45-IP67 Industrial Ethernet Connector System
Description
Order data

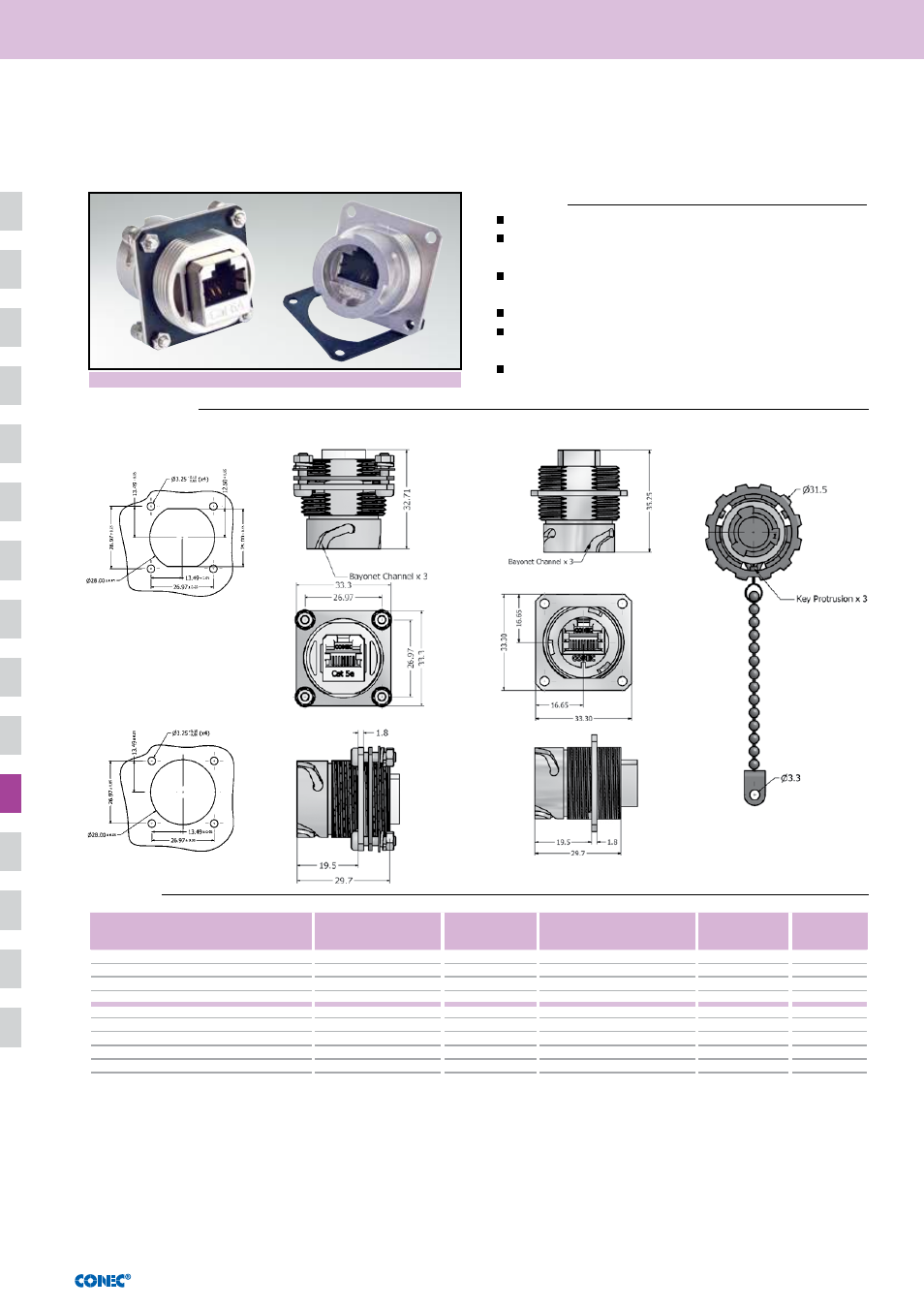

Product drawing
Recommended Panel Cut-out
For front- or rear panel mounting up to wall thickness of 3.2 mm
Design:
- Zinc die-cast nickel plated
RJ45 Cat. 5e Inline coupling unshielded or shielded
RJ45 Cat. 6A Inline coupling shielded
Available as a set with protection cap
Accessories:
Gasket and mounting hardware can be ordered separately
Mounting hardware includes
4x (screw M3 + nut + flat washer + spring washer)
Protection cap metal
Type
Material
Surface
RJ45 design
Protection cap
Part Number
Receptacle Cat 5e with accessories
Zinc die-cast
nickel plated
Inline coupling unshielded
17-110224
Receptacle Cat 5e with accessories
Zinc die-cast
nickel plated
Inline coupling unshielded
with protection cap 17-110244
Receptacle Cat 5e with accessories
Zinc die-cast
nickel plated
Inline coupling shielded
17-110214
Receptacle Cat 5e with accessories
Zinc die-cast
nickel plated
Inline coupling shielded
with protection cap 17-110234
Receptacle Cat 6A without accessories
Zinc die-cast
nickel plated
Inline coupling shielded
17-150214
Receptacle Cat 6A with accessories
Zinc die-cast
nickel plated
Inline coupling shielded
17-160004
Receptacle Cat 6A with accessories
Zinc die-cast
nickel plated
Inline coupling shielded
with protection cap 17-160014
Panel gasket
Silicone
17-103540
Mounting hardware
Stainless steel
17-103530
RJ45-IP67 Panel mounted receptacle
Inline coupling Cat. 5e and 6A – Square flange – Bayonet locking – Zinc die-cast
Cat. 5e Version
Cat. 6A Version
