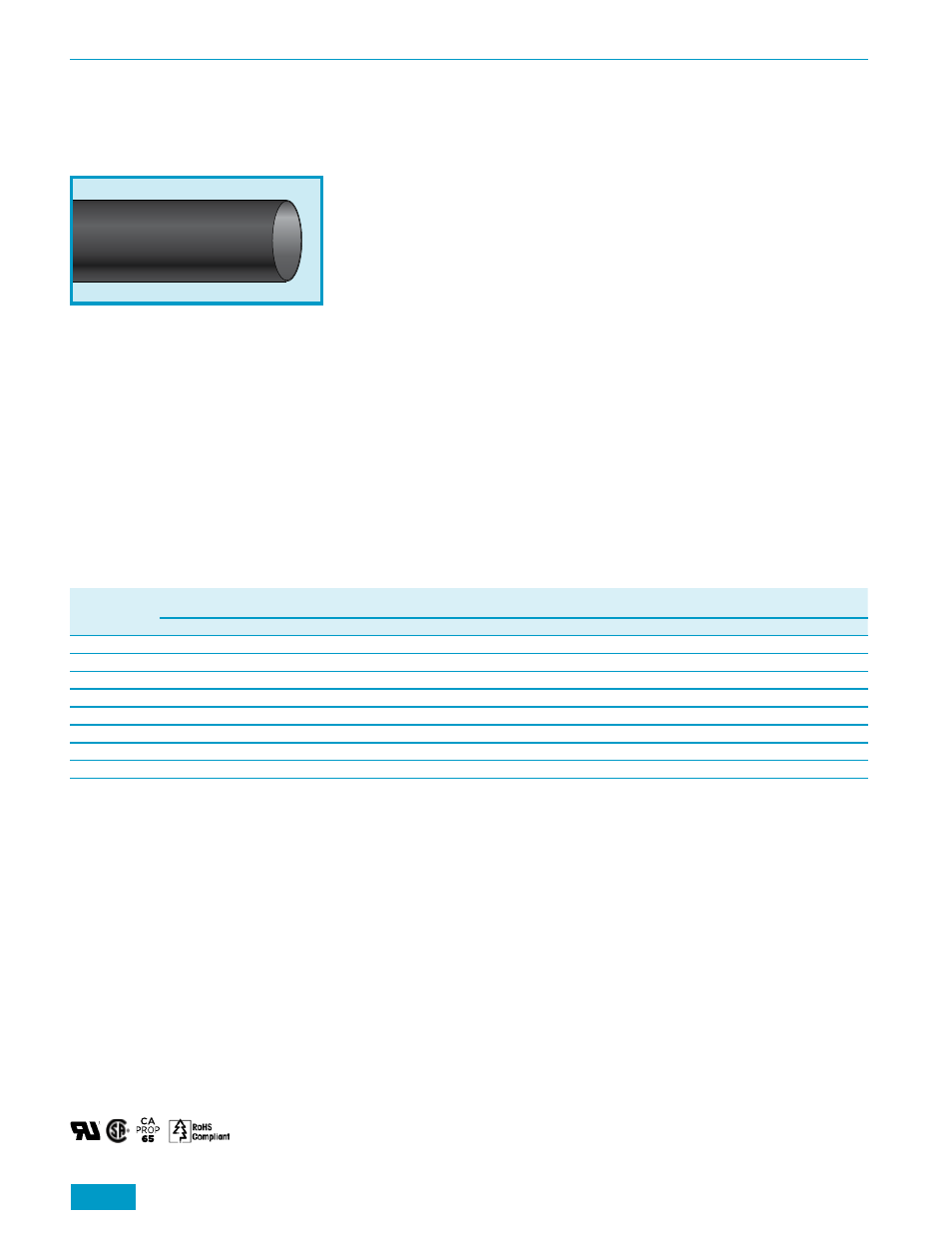

FIT®-750 Heat Shrink Tubing
2:1 Shrink Ratio, XLPO, Adhesive Lined
AMS-DTL-23053/4 Class 2
UL 224 VW-1
CSA 198
• General-purpose adhesive-
lined tubing
• Total encapsulation
• Bonding to substrates
Operating Temperature
• -55°C to +110°C
• -55°C to +125°C (UL, CSA)
Shrink Temperature
• 110°C min.
• 110°C full recovery
Material
• Adhesive-lined cross-linked
polyolefin
Color
• Black
Physical Properties
• Tensile strength: 1500 psi
(10.34 N/mm
2
)
• Elongation: 200% min
• Longitudinal change: +1%/-5%
• Self-extinguishing within 1 minute
• Shelf life: 3 years at 18°C to 35°C
Chemical Properties
• Corrosive effect: none
• Fungus resistance: no growth
• Water absorption: 0.5% max
• Fluid resistance: 1000 psi
(6.89 N/mm
2
)
• UV resistance
• Lead free
Electrical Properties
• 600 V (UL, CSA)
• Dielectric strength: 500 V/mil
(197 kV/cm)
• Volume resistivity: 10
12
ohm-cm
Availability
See table
Part No.
Supplied ID, Min.
Recovered ID, Max.
Recovered
Wall Thickness, Nom.
Recovered Adhesive
Wall Thickness, Min.
Availability, Qty, Cut
Pieces at Length
Inch
mm
Inch
mm
Inch
mm
Inch
mm
6” (152 mm)
ST-302-1/8
0.125
3.18
0.063
1.60
0.027
0.69
0.002
0.05
25
ST-302-3/16
0.187
4.75
0.093
2.36
0.027
0.69
0.002
0.05
25
FIT-750-1/4
0.250
6.35
0.125
3.18
0.030
0.76
0.004
0.10
25
FIT-750-3/8
0.375
9.53
0.187
4.75
0.031
0.79
0.004
0.10
25
FIT-750-1/2
0.500
12.70
0.250
6.35
0.032
0.81
0.005
0.13
5
FIT-750-3/4
0.750
19.05
0.375
9.53
0.037
0.94
0.005
0.13
5
FIT-750-1IN
1.000
25.40
0.500
12.70
0.039
0.99
0.007
0.18
5
FIT-750-1-1/2
1.500
38.10
0.750
19.05
0.046
1.17
0.007
0.18
5
