1
UTS
UTS : Your first choice in waterproof connectors !
Jam nut receptacle for pin & socket contacts

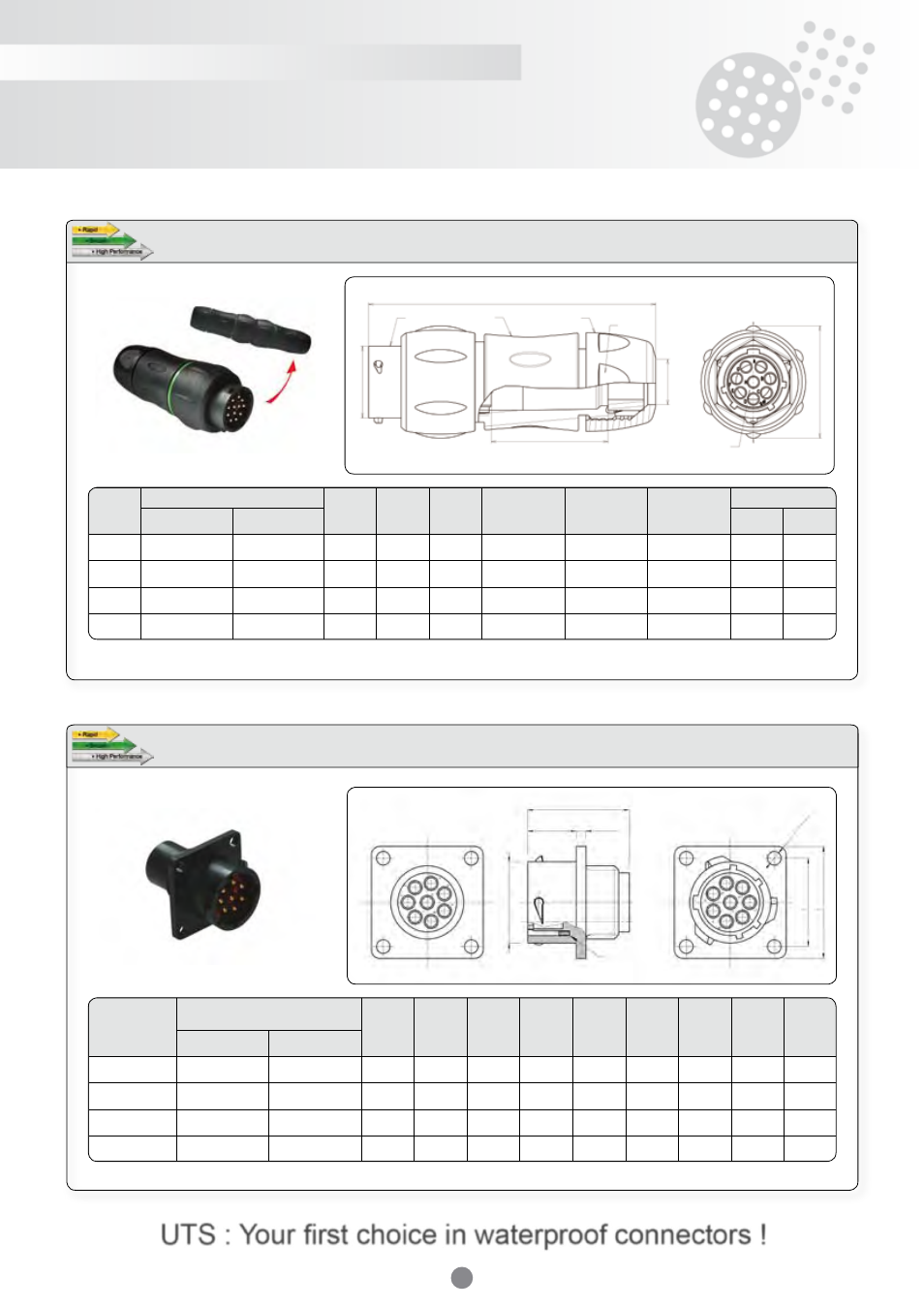

In-line receptacle for pin & socket contacts
MATING FACE
Shell Backshell body
ØA
Backshell nut
Hexagon D
L min.
E max.
Ø
C
ab
le
ra
ng
e
Insert
B max.
Shell
size
Part numbers
Ø A L min. B max
Ø Cable range
Standard seal
Ø Cable range
Reducing seal
Hexagon D
E max
Male contact Female contact Male Female
10 UTS1JC10 - - - P UTS1JC10 - - - S 14.9 70.0 26.7 2.5/8.0 1.5/5.0 18.5 31.0 38.0
12 UTS1JC12 - - P UTS1JC12 - - S 19.0 74.0 30.1 5.0/12.0 3.0/9.0 24.0 34.0 41.5
14 UTS1JC14 - - P UTS1JC14 - - S 22.2 78.5 35.1 7.0/14.0 5.0/12.0 26.0 38.0 45.5
18* UTS1JC18 - - P UTS1JC18 - - S 28.5 89.0 42.0 9.0/18.0 7.0/16.0 33.0 46.5 54.0
Square flange receptacle
Note : all dimensions are in mm
A
C B
O’seal
Ø D
E
F
Ø G
MATING FACE
Shell size
Part numbers
A max. B ±0.15 C ±0.2 Ø D ±0.15 E ±0.25 F ±0.25 Ø G ±0.1 Ø H ±0.1 Ø J ±0.1
Male contact Female contact
10 UTS0104P UTS0104S 24.3 2.3 11.3 15.0 18.3 23.8 3.2 17.3 15.1
12 UTS0128P UTS0128S 24.3 2.3 11.3 19.0 20.6 26.2 3.2 21.8 18.2
14 UTS01412P UTS01412S 24.3 2.3 11.3 22.2 23.0 28.6 3.2 25.0 21.4
18 UTS01823P UTS01823S 24.3 2.5 11.3 28.5 26.9 33.3 3.2 31.3 27.8
For shell size 18, please consult us
Coloured ring supplied as optional extra (see page 72).
Coloured ring supplied as optional extra (see page 72).
