UTS
UTS : Your first choice in waterproof connectors !

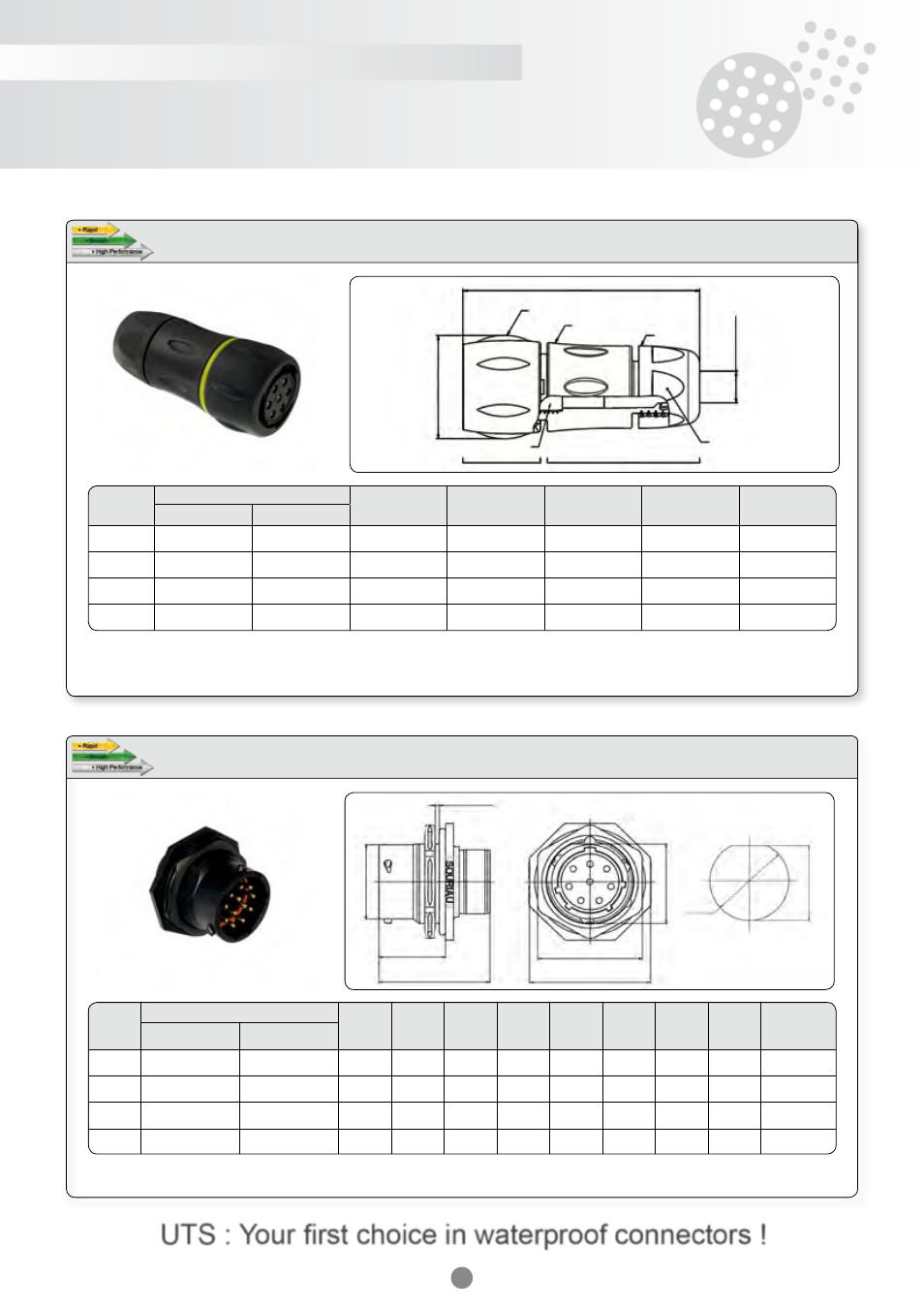

Cable plug with backshell for pin & socket contacts
Each plug has 2 seals to cover the specified cable range (see table).
The standard seal is preassembled. The second seal is supplied as loose piece together with a plug.
Shell size
Part numbers
Ø A B
Ø Cable range
Standard seal
Ø Cable range
Reducing seal
Hexagon D
Male contact Female contact
10 UTS6JC10 - - - P UTS6JC10 - - - S 26.7 63.2 2.5 / 8.0 1.5 / 5.0 18.5
12 UTS6JC12 - - P UTS6JC12 - - S 30.15 66.7 5.0 / 12.0 3.0 / 9.0 24.0
14 UTS6JC14 - - P UTS6JC14 - - S 35.1 71.5 7.0 / 14.0 5.0 / 12.0 26.0
18 UTS6JC18 - - P UTS6JC18 - - S 42.0 81.3 9.0 / 18.0 7.0 / 16.0 33.0
Jam nut receptacle for pin & socket contacts
Coloured ring supplied as optional extra (see page 72).
Shell
size
Part numbers
Ø A B D max F max G H L Ø M
Tightening
torque
Male contact Female contact
10 UTS710 - - - P UTS710 - - - S 14.9 19.3 33.9 3.2 27.0 22.2 16.5 17.7 3
12 UTS712 - - P UTS712 - - S 19.0 19.3 33.9 3.2 31.8 27.0 21.2 22.5 4
14 UTS714 - - P UTS714 - - S 22.2 19.3 33.9 3.2 34.9 30.2 24.3 25.7 5
18 UTS718 - - P UTS718 - - S 28.5 19.3 33.9 3.2 41.3 36.6 30.6 32.0 5
Note : all dimensions are in mm
Coloured ring supplied as optional extra (see page 72).
MATING FACE
D max.
B ±0.2
F max.
(panel thickness)
Ø A
±0.1
5
H ±0.3
G ±0.25
K ±0.25 L ±0.2
ØM ±0.2
PANEL CUT OUT
Ø A
Coupling nut
Backshell body
Ø C
able range
Hexagon D
Backshell Plug
Insert
B
Backshell
nut
