UTS Hi seal
UTS : Your first choice in waterproof connectors !

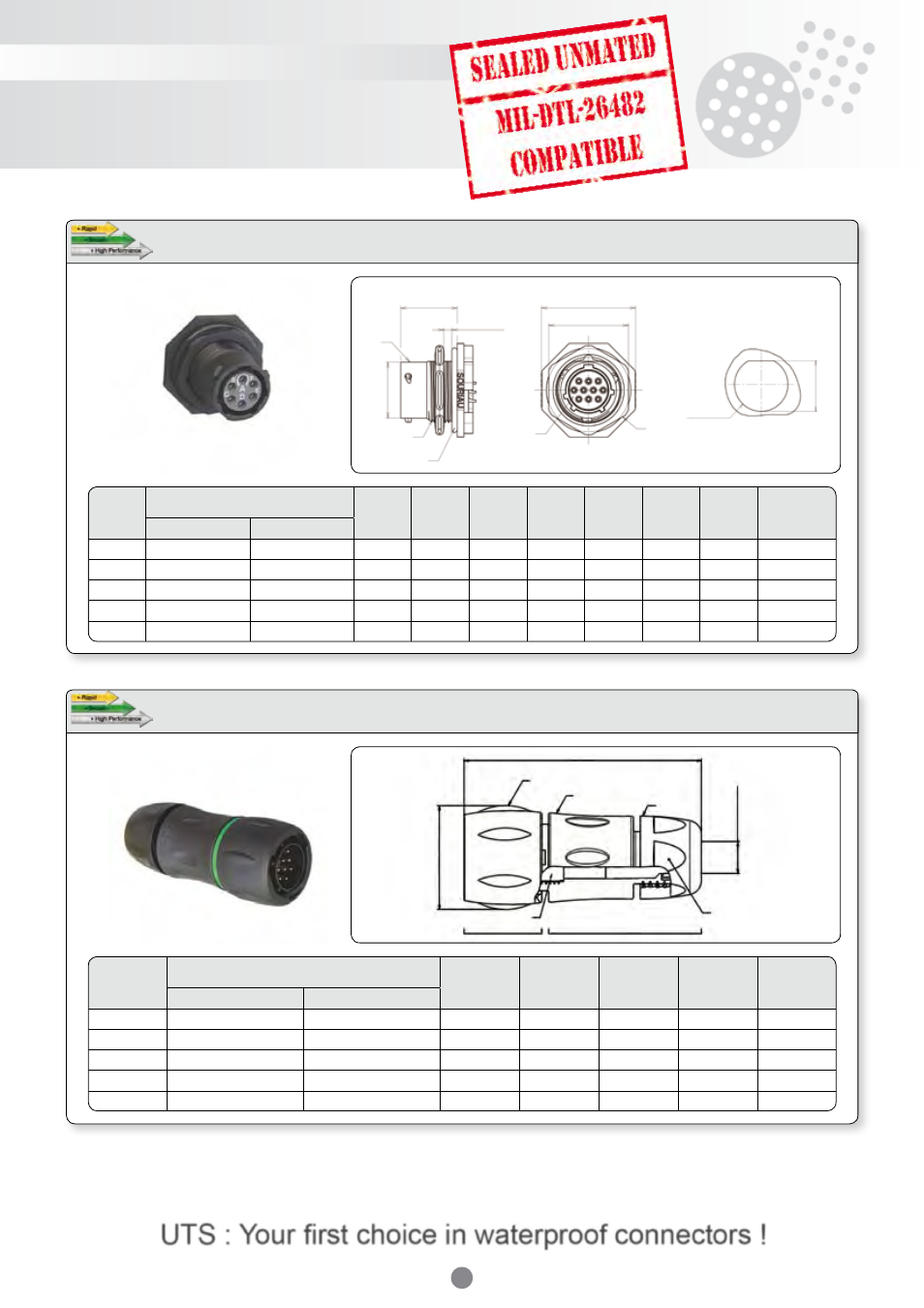

Jam nut receptacle with handsolder contacts
Shell
size
Part numbers
Ø A B C D E F Ø G
Tightening
torque
Male contact Female contact
8 UTS78E - - P - UTS78E - - S - 12.0 19.3 3.2 24.0 19.3 13.75 14.6 2 Nm
10 UTS710E - - P - UTS710E - - S - 14.9 19.3 3.2 27.0 22.2 16.5 17.7 3 Nm
12 UTS712E - - P - UTS712E - - S - 19.0 19.3 3.2 31.8 27.0 21.2 22.5 4 Nm
14 UTS714E - - P - UTS714E - - S - 22.2 19.3 3.2 34.9 30.2 24.3 25.7 5 Nm
18 UTS718E - - P -* UTS718E - - S -* 28.5 19.3 3.2 41.3 36.6 30.6 32.0 5 Nm
Cable plug with handsolder contacts
Shell size
Part numbers
Ø A B
Ø Cable range
Standard seal
Ø Cable range
Reducing seal
Hexagon D
Male contact Female contact
8 UTS6JC8E - - P - UTS6JC8E - - S - 22.5 54.0 2.5 / 6.5 1.5 / 5.0 16.0
10 UTS6JC10E - - P - UTS6JC10E - - S - 26.7 63.2 2.5 / 8.0 1.5 / 5.0 18.5
12 UTS6JC 2E - - P - UTS6JC12E - - S - 30.2 66.7 5.0 / 12.0 3.0 / 9.0 24.0
14 UTS6JC14E - - P - UTS6JC14E - - S - 35.1 71.5 7.0 / 14.0 5.0 / 12.0 26.0
18 UTS6JC18E - - P -* UTS6JC18E - - S -* 42.0 81.3 9.0/ 18.0 7.0 / 16.0 33.0
Ø A max.
Coupling nut
Backshell body
Ø C
able range
Hexagon D
Backshell Plug
Insert
B min.
Backshell
nut
Insert
Nut
(see tightening torque)
Shell
C max.
Panel thickness
B max.
Thread
O’Ring
A ±0.1
5
E ±0.3
D ±0.25
G ±0.20
F ±0.20
PANEL CUT OUT
Note : all dimensions are in mm / * Please consult factory
Coloured ring supplied as optional extra (see page 72).
