Northern Connectors Souriau UT0W Metal High Density Circular Connectors - Manual (Page 9)

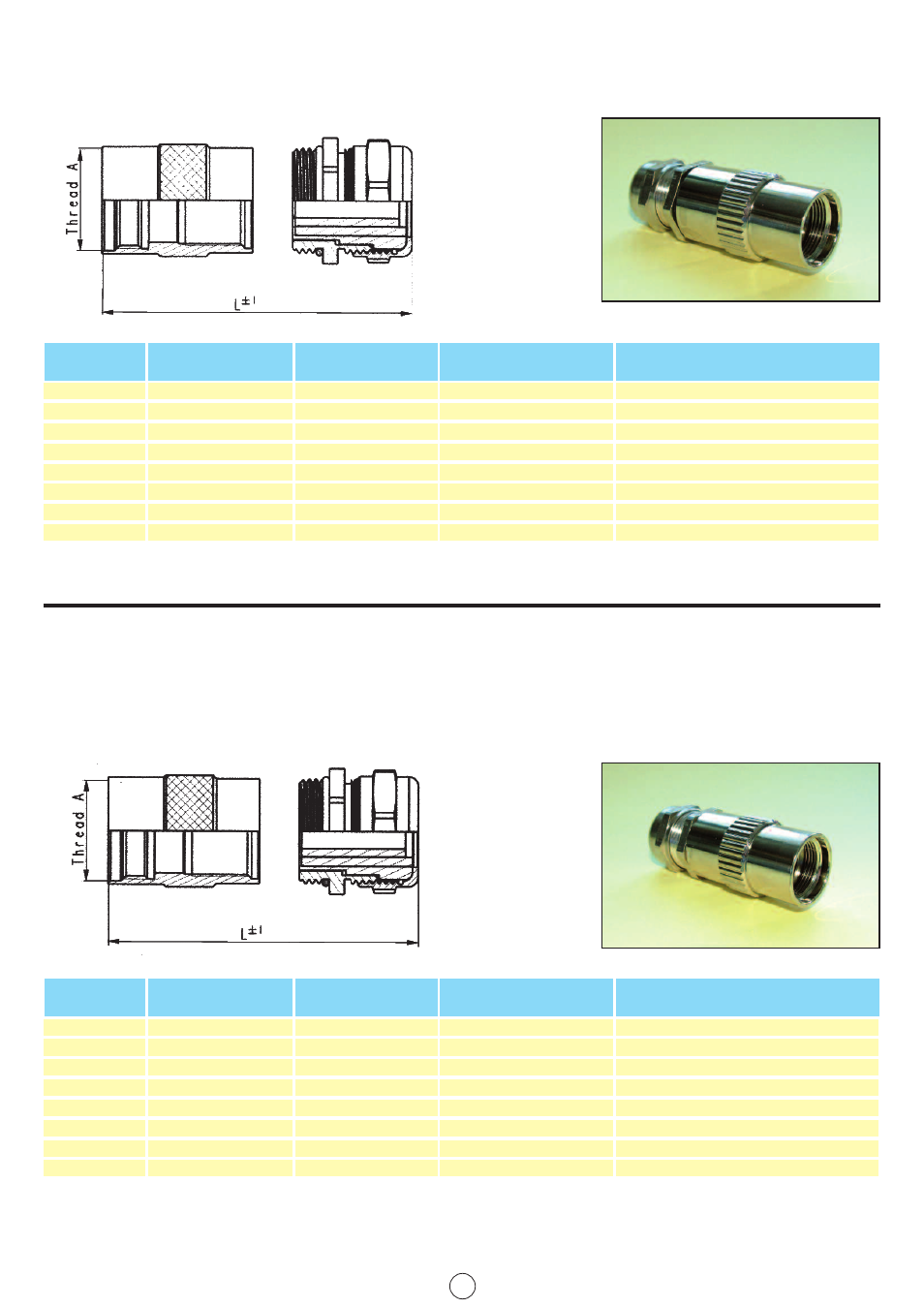

Long cable cable clamp with strain relief nut
for water protected applications IP68
Long cable clamp with large strain relief nut for
water protected applications IP68
SHELL SIZE
10
12
14
16
18
20
22
24
Part number
Long version
UT010JC
UT012JC
UT014JC
UT016JC
UT018JC
UT020JC
UT022JC
UT024JC
Clamping range
(ø en mm) min / max
03 / 06
06 / 10
06 / 10
9.5 / 14
9.5 / 14
11.5 / 18
11.5 / 18
11.5 / 18
L± 1
Long version
60.5
61.5
67.5
73.5
76.0
84.0
88.0
92.0
Thread A
9/16 - 24 UNEF Class 2A
11/16 - 24 UNEF Class 2A
13/16 - 20 UNEF Class 2A
15/16 - 20 UNEF Class 2A
1” 1/16 - 18 UNEF Class 2A
1” 3/16 - 18 UNEF Class 2A
1” 5/16 - 18 UNEF Class 2A
1” 7/16 - 18 UNEF Class 2A
Dimensions in millimetres
SHELL SIZE
10
12
14
16
18
20
22
24
Part number
Long version
UT010JCL
UT012JCL
UT014JCL
UT016JCL
UT018JCL
UT020JCL
UT022JCL
UT024JCL
Clamping range
(ø en mm) min / max
05 / 08
08 / 12
08 / 12
11.5 / 18
11.5 / 18
15 / 24
15 / 24
15 / 24
L± 1
Long version
61.5
62.5
68.5
79.5
82.0
91.0
95.0
99.0
Thread A
9/16 - 24 UNEF Class 2A
11/16 - 24 UNEF Class 2A
13/16 - 20 UNEF Class 2A
15/16 - 20 UNEF Class 2A
1” 1/16 - 18 UNEF Class 2A
1” 3/16 - 18 UNEF Class 2A
1” 5/16 - 18 UNEF Class 2A
1” 7/16 - 18 UNEF Class 2A
Dimensions in millimetres
9 Tel: 01744 815001 Fax: 01744 814040
