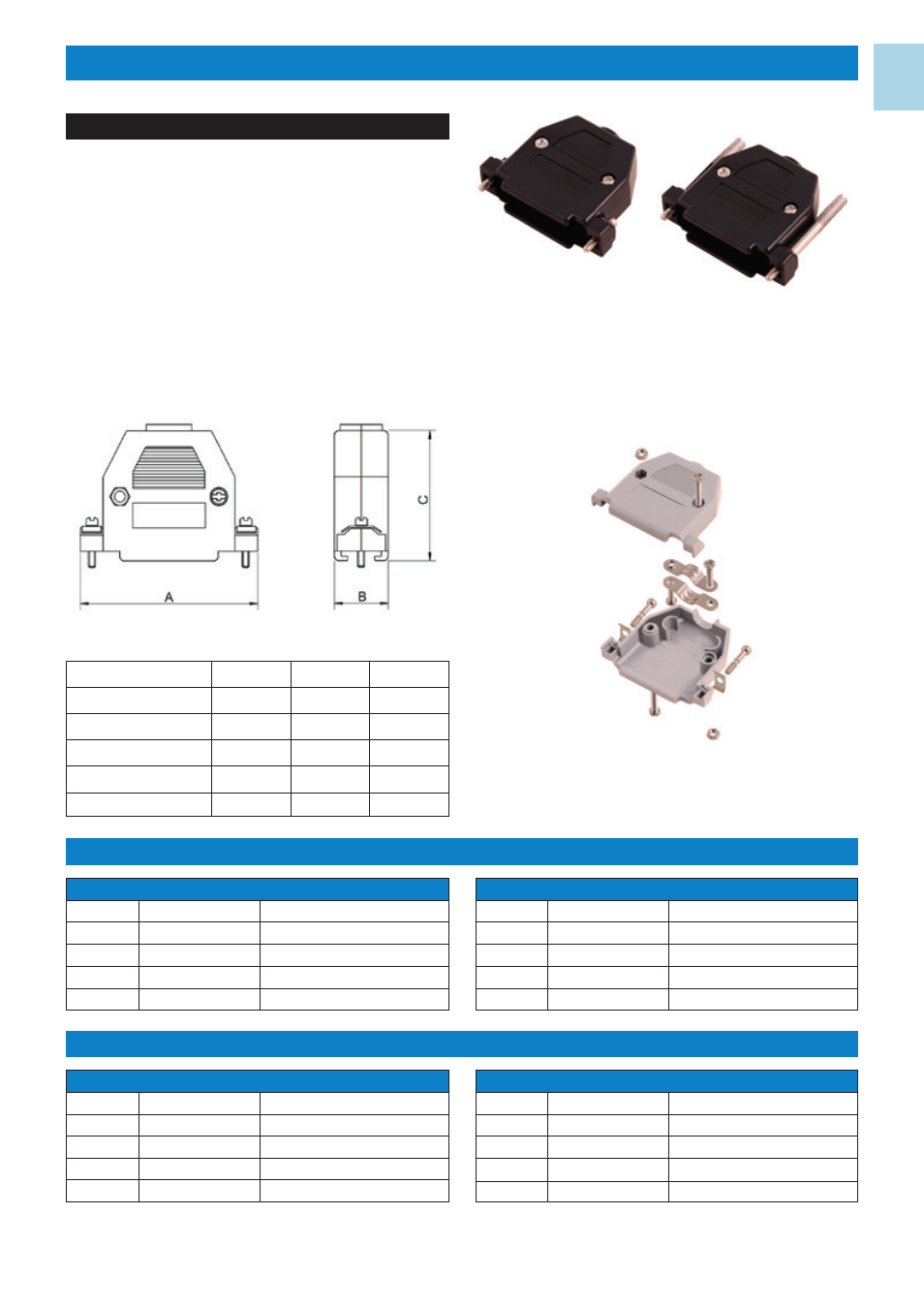

TECHNICAL SPECIFICATIONS SC-Series
Ordering information - SHORT Jackscrews:
Size: P/N - Kitted: Product Code BLACK:
9-way 2360-0102-01 CCOV 9-SC-BK
15-way 2360-0102-02 CCOV15-SC-BK
25-way 2360-0102-03 CCOV25-SC-BK
37-way 2360-0102-04 CCOV37-SC-BK
50-way 2360-0102-05 CCOV50-SC-BK
Size: P/N - Kitted: Product Code LIGHT GREY:
9-way 2360-0102-11 CCOV 9-SC-LG
15-way 2360-0102-12 CCOV15-SC-LG
25-way 2360-0102-13 CCOV25-SC-LG
37-way 2360-0102-14 CCOV37-SC-LG
50-way 2360-0102-15 CCOV50-SC-LG
Ordering information - LONG Jackscrews:
Size: P/N - Kitted: Product Code BLACK:
9-way 2360-0102-21 CCOV 9-SCL-BK
15-way 2360-0102-22 CCOV15-SCL-BK
25-way 2360-0102-23 CCOV25-SCL-BK
37-way 2360-0102-24 CCOV37-SCL-BK
50-way 2360-0102-25 CCOV50-SCL-BK
Size: P/N - Kitted: Product Code LIGHT GREY:
9-way 2360-0102-31 CCOV 9-SCL-LG
15-way 2360-0102-32 CCOV15-SCL-LG
25-way 2360-0102-33 CCOV25-SCL-LG
37-way 2360-0102-34 CCOV37-SCL-LG
50-way 2360-0102-35 CCOV50-SCL-LG
PLASTIC HOODS CCOV-SERIES
Size A B C
9-way 31,0 16,0 40,2
15-way 39,6 17,4 38,0
25-way 55,0 16,5 44,5
37-way 69,0 24,0 52,5
50-way 69,5 19,5 44,5
01
Material: UL Recognised Plastic Material
Operating Temperature: -55°C to +110°C
Cable Entry:
Top
Thumbscrews: UNC 4-40
Cable O.D: Up to 11,5mm
Colour: Black or Light Grey
Also available in Shielded version, See page 23
