Northern Connectors D-Sub Plastic Hoods - Manual (Page 10)

15

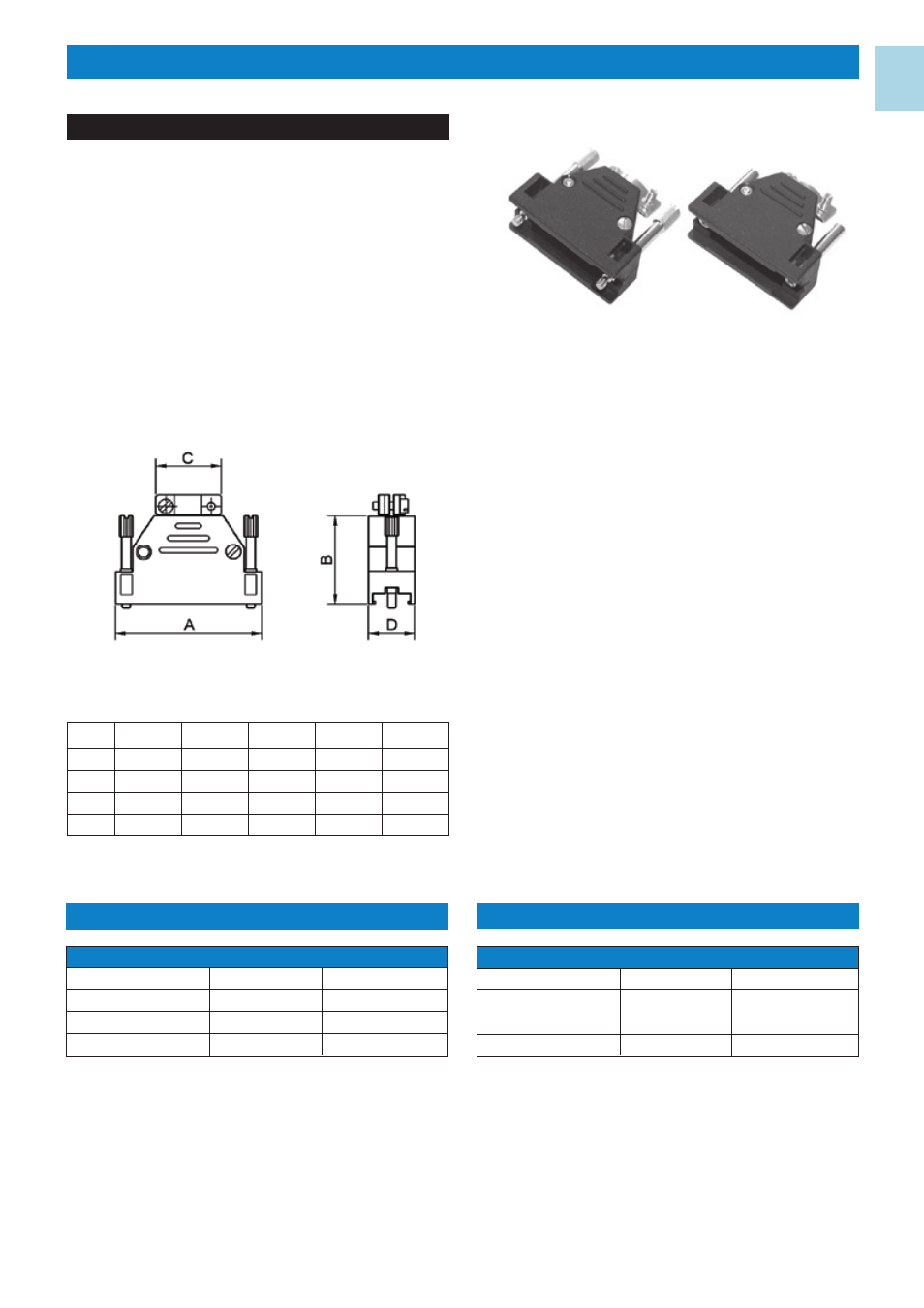

Size A B C D E
9 31,4 24,0 14,5 38,0 18,2
15 42,0 30,0 14,5 38,0 18,2
25 55,5 36,0 25,1 38,0 18,2
37 69,8 38,0 39,2 38,0 18,2
TECHNICAL SPECIFICATIONS
Ordering information: Male Jackscrew
Size: P/N - Kitted: Product Code:
9-way, Male JS 2801-0102-01 ED-D09T-K
15-way, Male JS 2801-0102-02 ED-D15T-K
25-way, Male JS 2801-0102-03 ED-D25T-K
37-way, Male JS 2801-0102-04 ED-D37T-K
PLASTIC HOODS ED-SERIES
Features:
● Suitable for sizes 9, 15, 25 and 37
● Easy to re-open
● Male or female Jackscrew
Ordering information: Female Jackscrew
Size: P/N - Kitted: Product Code:
9-way, Female JS 2801-0102-11 ED-D09TF-K
15-way, Female JS 2801-0102-12 ED-D15TF-K
25-way, Female JS 2801-0102-13 ED-D25TF-K
37-way, Female JS 2801-0102-14 ED-D37TF-K
01
Material: UL Recognised Plastic Material
Operating Temperature: -55°C to +110°C
Cable Entry:
Top Entry
Cable O.D: Up to 9mm
Colour: Black
Jackscrew: UNC 4-40
Male or Female Version
