Model number 23609 23612 23614
Voltage rating 9.6 V 12 V 14.4 V
No load speed n
0
0-2,800/min n
0
0-2,800/min n
0
0-2,800/min
Impact rate 0-3,200 0-3,200 0-3,200
Maximum torque 930 1,065 1,150
Maximum Capacities
Chuck size 1/4" Hex-shank 1/4" Hex-shank 1/4" Hex-shank
with power groove with power groove with power groove
Screw sizes #12 x 3" #14 x 3" #16 x 3"
Mild metal 1/4" 3/8" 1/2"
Hard wood 3/4" 1-1/4" 1-1/2"
Soft wood 1-1/4" 1-1/2" 2"
Charger BC001-6 & BC016 BC001-6 & BC016 BC001-6 & BC016
Battery pack BAT048 BAT043-BAT046 BAT038-BAT041
Voltage rating 120 V 60 Hz 120 V 60 Hz 120 V 60 Hz
Charge time 1 hr. 1 hr. 1 hr.
BC006 charger requires 12 V DC input
NOTE: ONLY USE CHARGERS LISTED ABOVE
-7-
Functional Description and Specifications
Disconnect battery pack from tool or place the switch in the locked or
off position before making any assembly, adjustments or changing
accessories. Such preventive safety measures reduce the risk of starting the tool
accidentally.
! WARNING

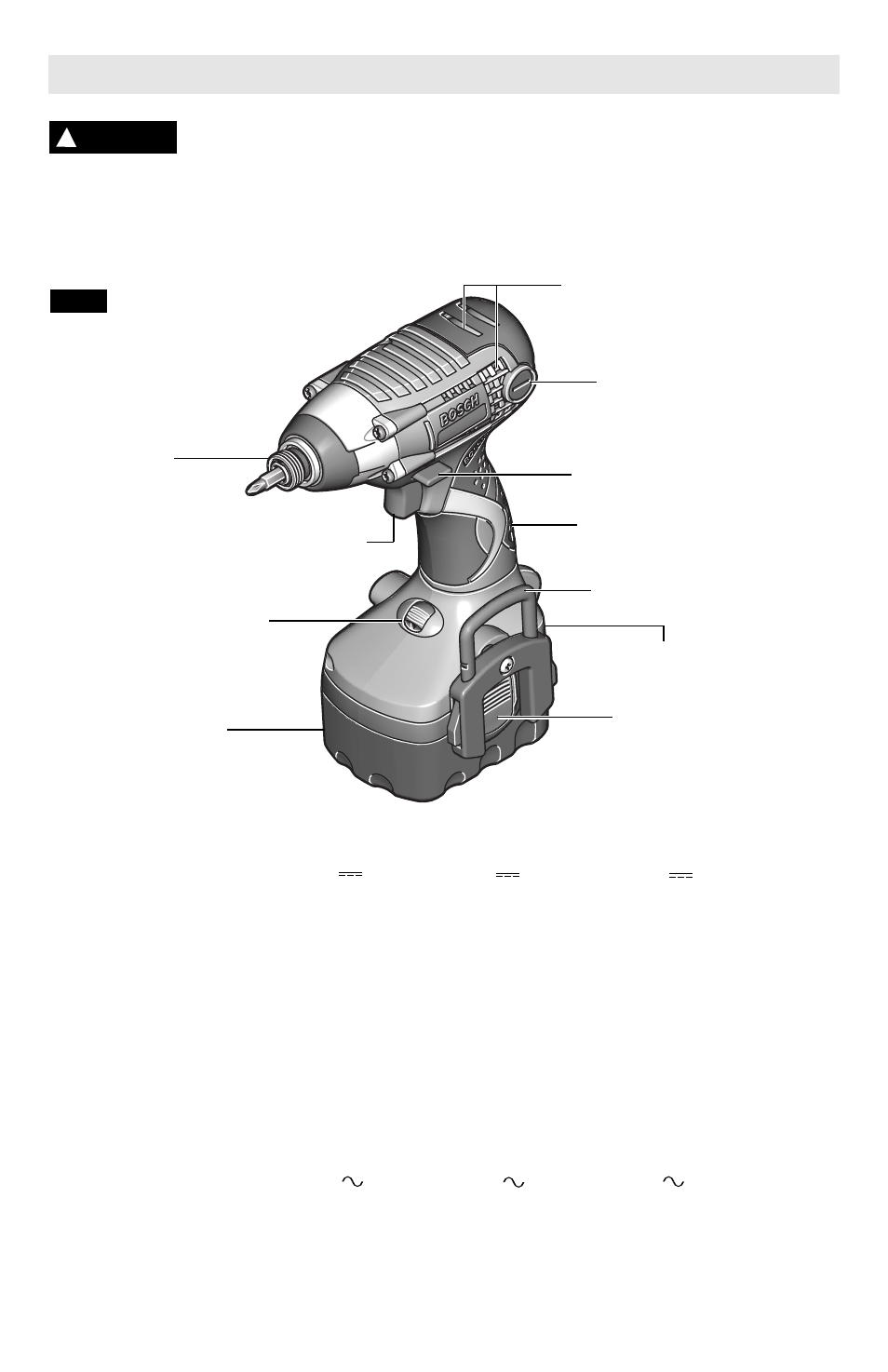

Cordless Impact Drivers
VARIABLE SPEED
TRIGGER SWITCH
FORWARD/REVERSING
LEVER & TRIGGER LOCK
RUBBERIZED GRIP
BATTERY
RELEASE TABS
BATTERY PACK
VENTILATION
OPENINGS
BRUSH COVER
COLLET
LOCKING
SLEEVE
BELT CLIP
(Optional Accessory)
SWIVEL LIGHTING
SYSTEM
BIT AND BIT
STORAGE
FIG. 1
