DCA-70SSIU (60 Hz) — OPERATION AND PARTS MANUAL — REV. #1 (01/06/09) — PAGE 49

1

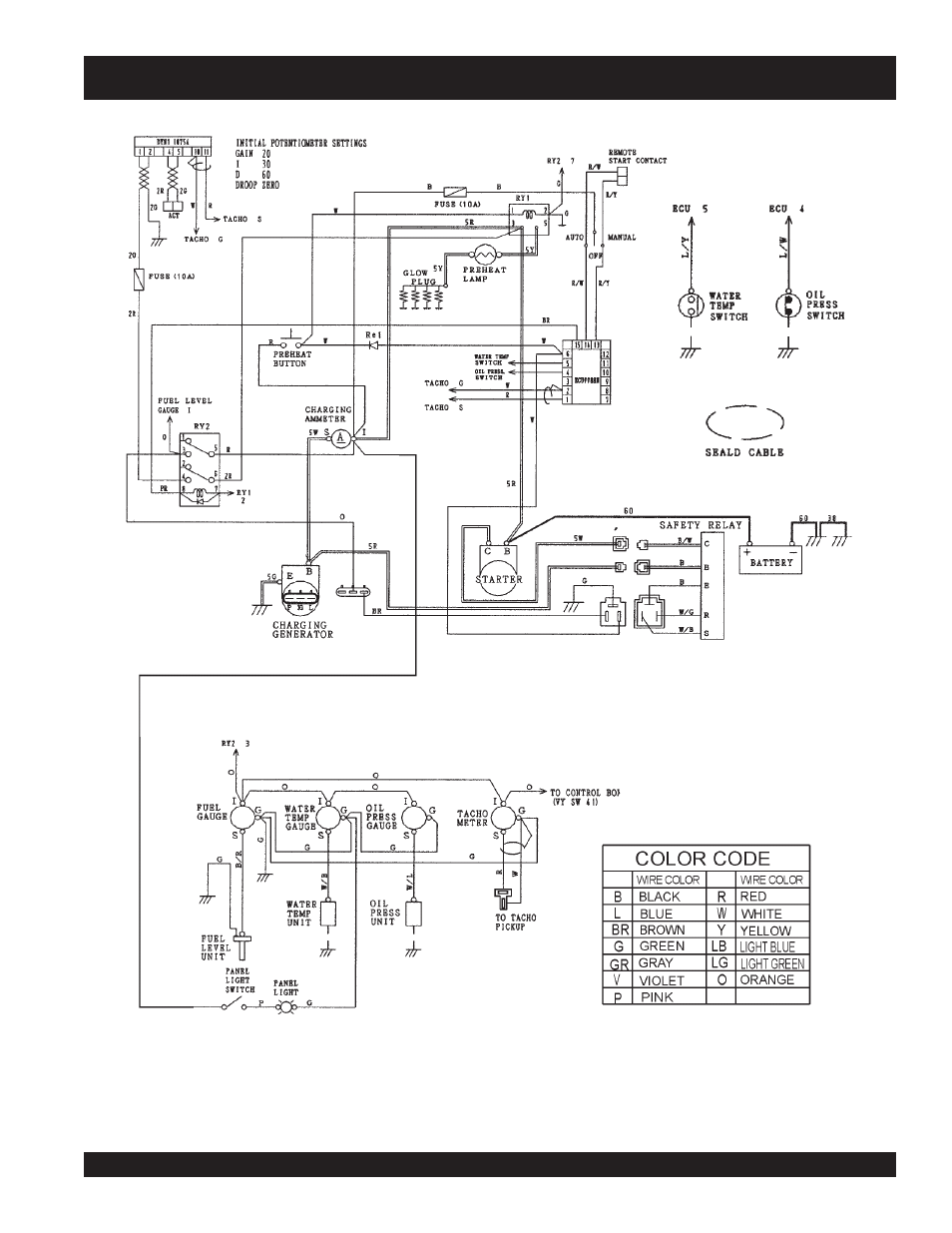

DCA-70SSIU (60 Hz) — ENGINE WIRING DIAGRAM

Figure 63. Engine Wiring Diagram
