PAGE 40 — DCA-220SSJ/SSJU — OPERATION AND PARTS MANUAL — REV. #1 (02/28/14)
Output Terminal Familiarization
The “ Output Terminal Panel ” (Figure 8) is provided with the
following:
■ ■ ■ ■ ■ Three (3) 120/240V output receptacles @ 50 amp
■ ■ ■ ■ ■ Three (3) Circuit Breakers @ 50 amps
■ ■ ■ ■ ■ Two (2) 100V GFCI receptacles @ 20 amp
■ ■ ■ ■ ■ Two (2) GFCI Circuit Breakers @ 20 amps
■ ■ ■ ■ ■ Five (5) Output Terminal Lugs ( U, V, W, O, Ground)
Output Terminal Panel
The Output Terminal Panel (Figure 9) shown below is located
on the right-hand side (left from control panel) of the generator.
Lift up on the cover to gain access to receptacles and terminal
lugs.

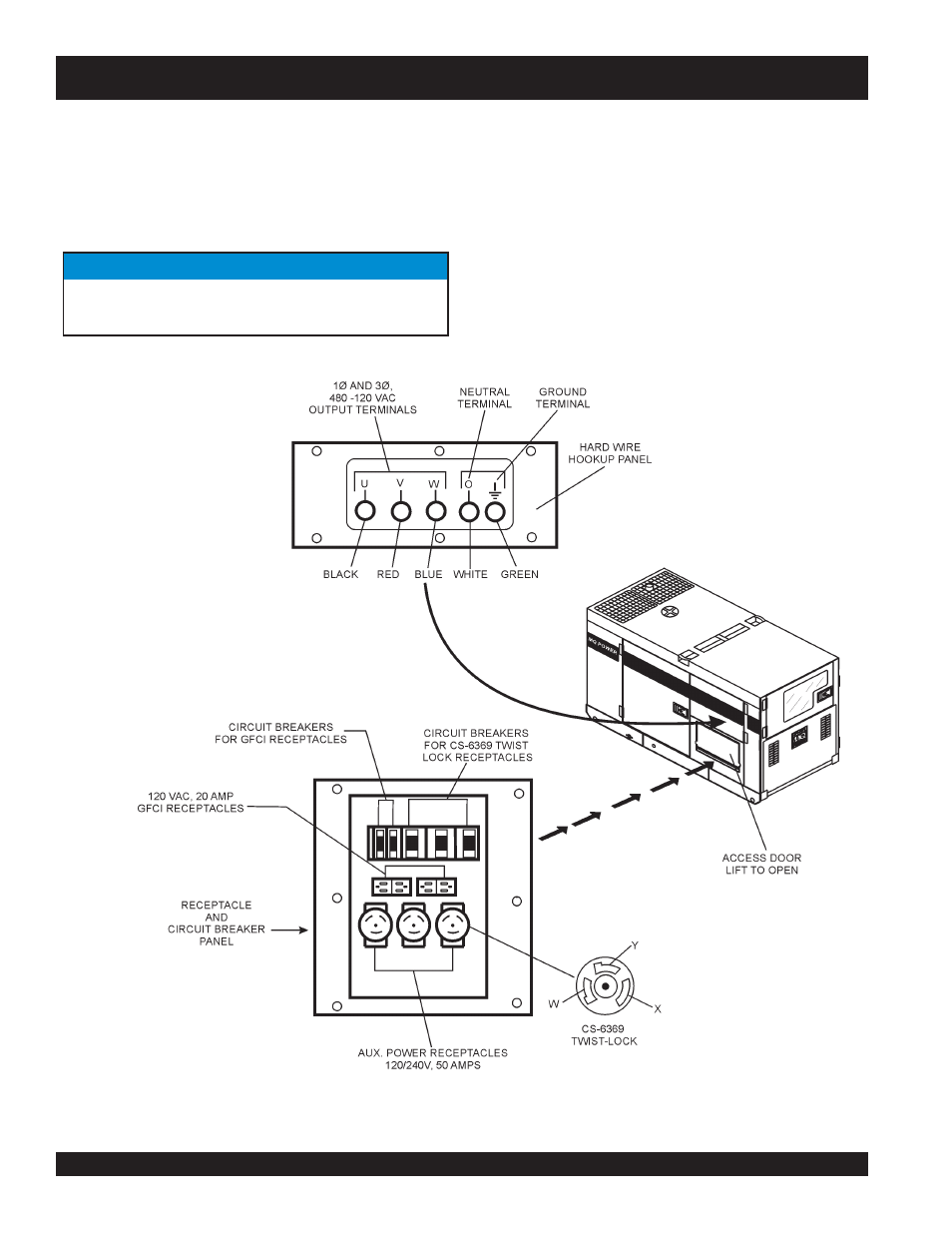

Figure 9. Output Terminal Panel
DCA-220SSJ/SSJU — OUTPUT TERMINAL PANEL FAMILIARIZATION
Terminal legs “O” and “Ground” are considered bonded
grounds.
NOTICE
