PAGE 28 — HBC19B/HBC25B REBAR CUTTER • OPERATION AND PARTS MANUAL — REV. #1 (03/07/12)

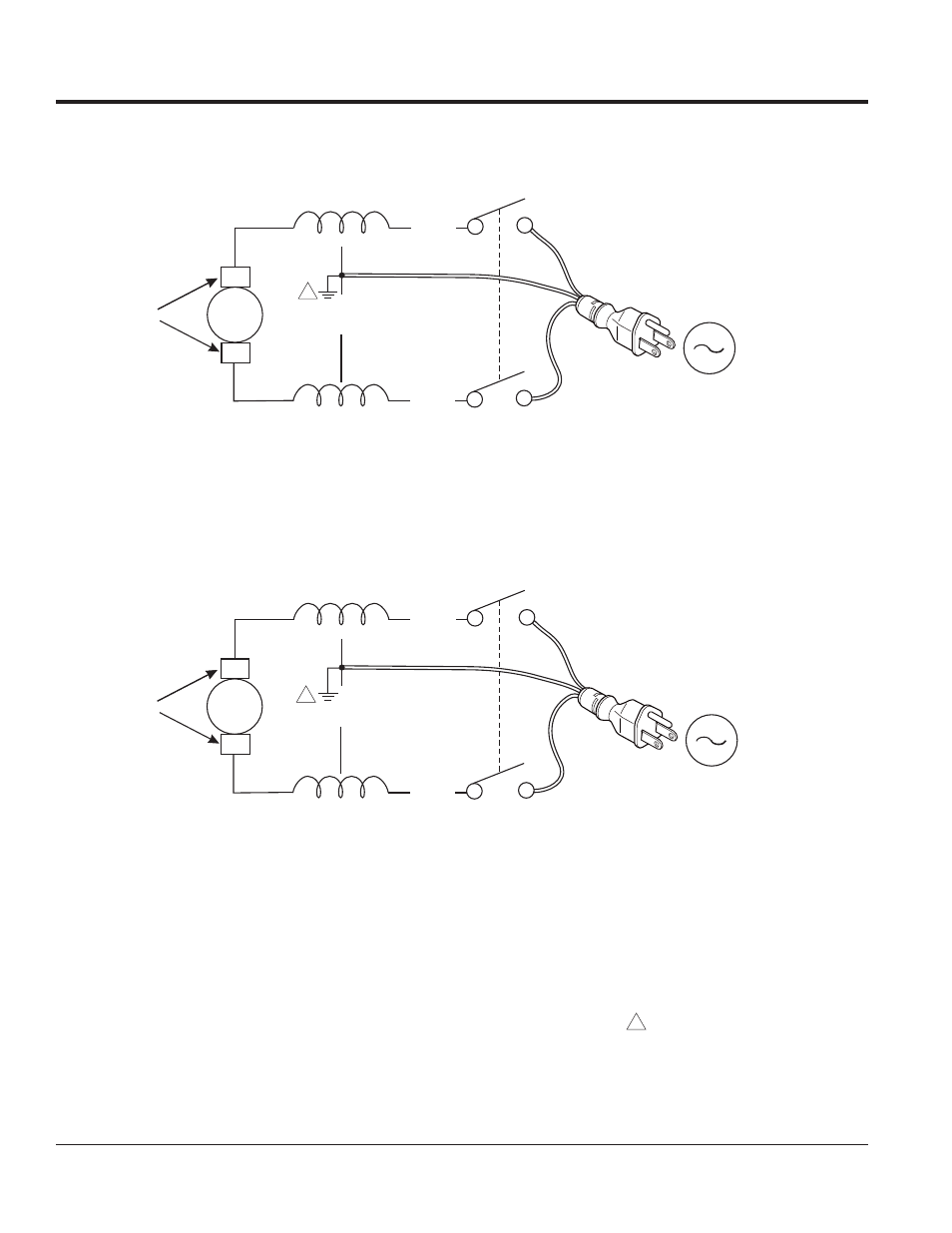

HBC19B/HBC25B — WIRING DIAGRAM
120V
60 Hz
BLACK
BLUE
BLACK
BLUE
STATOR
STATOR
BRUSHES
BRUSHES
ARMATURE
ARMATURE
ON/OFF SW
ON/OFF SW
HBC25B
HBC19B
WHITE
BLACK
GREEN
120V
60 Hz
WHITE
BLACK
GREEN
CONNECT GREEN GROUND
WIRE TO STATOR BOLT.
REFERENCE REBAR CUTTER
ASSEMBLY.
