CDM1H CORE DRILL — OPERATION AND PARTS MANUAL — REV. #6 (09/08/10) — PAGE 11

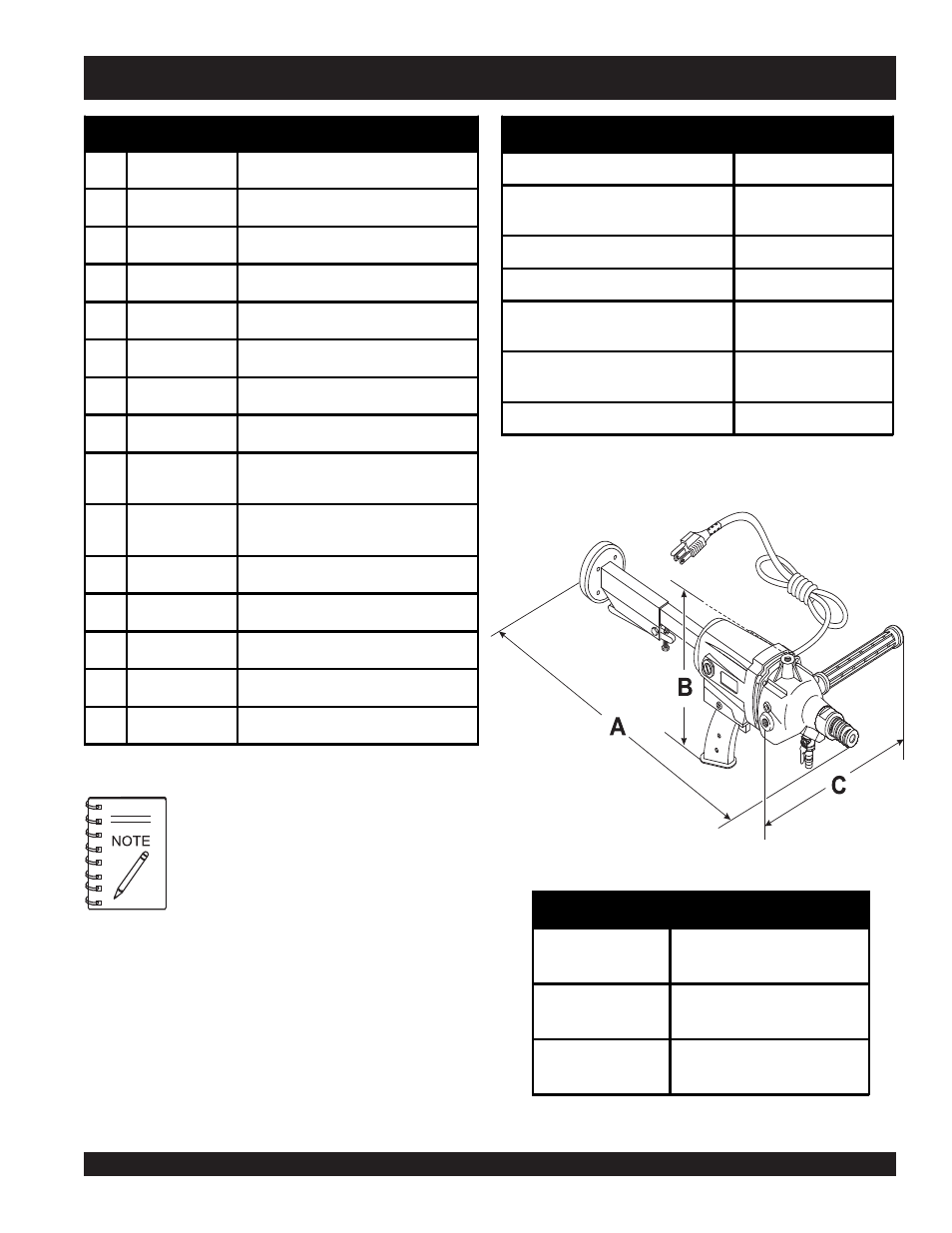

Figure 2. CDM1H Core Drill Dimensions
CDM1H HAND-HELD CORE DRILL — SPECIFICATIONS/DIMENSIONS
Contact the MQ Sales Department for the core
drill that best fits your application.
Table 1. Threads/Adapters and Core Bit Combinations
Item Part Number Description
1 CDM1H Handheld Core Drill (18 mm)
2 Drill Bits, Dry, COBRA 18 mmF Thread
3 Drill Bits, Dry, Blockbuster, 5/8"-11F Thread
4 Drill Bits, Wet, 5/8"-11F Thread
5 Drill Bits, Wet, 1 1/4"-7F Thread
6 ADM1858 Adapter, M18 Female to 5/8"-11 Male
7 ADM181147 Adapter, M18 Female to 1 1/4"-7 Male
8 AD114758
Adapter, 1 1/4"-7 Female to 5/8"-11 Male
(part not shown)
9 AD581147
Adapter, 5/8"-11 Female to 1 1/4"-7 Male
(part not shown)
10 EXT65811 Extension, 6" x 5/8"-11 Female/Male
11 EXT61147 Extension, 6" x 1 1/4"-7 Female/Male
12 EXT12M18 Extension, 12"xM18 Female/Male
13 EXT125811 Extension, 12", 5/8"-11 Female/Male
14 EXT121147 Extension, 12", 1 1/4"-7 Female/Male
Table 2. Specifications
Model CDM1H
Motor
115 VAC, 60 Hz @
2200 RPM
Current 12 amps
Watts 1,350
Applicable Drill Bit Diameter
Standard Drill Bits
1 inch
(25 mm)
Applicable Drill Bit Diameter
Cobra™ Drill Bits
1 inch to 5 inches
(25-127 mm)
Dry Net Weight 8.81 lbs. (4 Kg.)
Table 3. Dimensions
A (Length)
22.25 in.
(572 mm)
B (Height)
11.00 in.
(279 mm)
C (Width)
10.5 in.
(267 mm)
