STR46SP • RIDE-ON POWER TROWEL — OPERATION MANUAL — REV. #1 (08/01/06) — PAGE 19
STR46SP — CONTROLS AND INDICATORS
17. Safety Stop Switch – Shuts down engine when seat is
empty.
18. Light Assembly – Optional 12 volt halogen lights are
available, two forward and one aft.
19. Lift Loops – Located on both sides of the main frame.
Used to lift the trowel.
20. Engine Air Filter – Protects the engine from dirt.
21. Oil Filter – Filters the engine oil.
22. Oil Drain – Remove the plug from end of hose to drain the
engine oil.
23. Retardant Spray Tank – Holds 5 gallons of retardant.
24. Retardant Spray Pump – Delivers retardant to the spray
nozzle.
25. EZ- Mover Boss – Rear attachment point for EZ Mover.
Used to transport the trowel.
26. Spiders (Left/Right) – Consists of trowel arms, blades,
wear plate, and thrust collar.
27. Document Box – Contains all product documentation.
28. Battery – Provides +12V DC power to the electrical system.
29. Belt Guard – Encloses drive belt used in conjunction with
clutch.
30. Engine Oil Fill – Remove this cap to add engine oil.

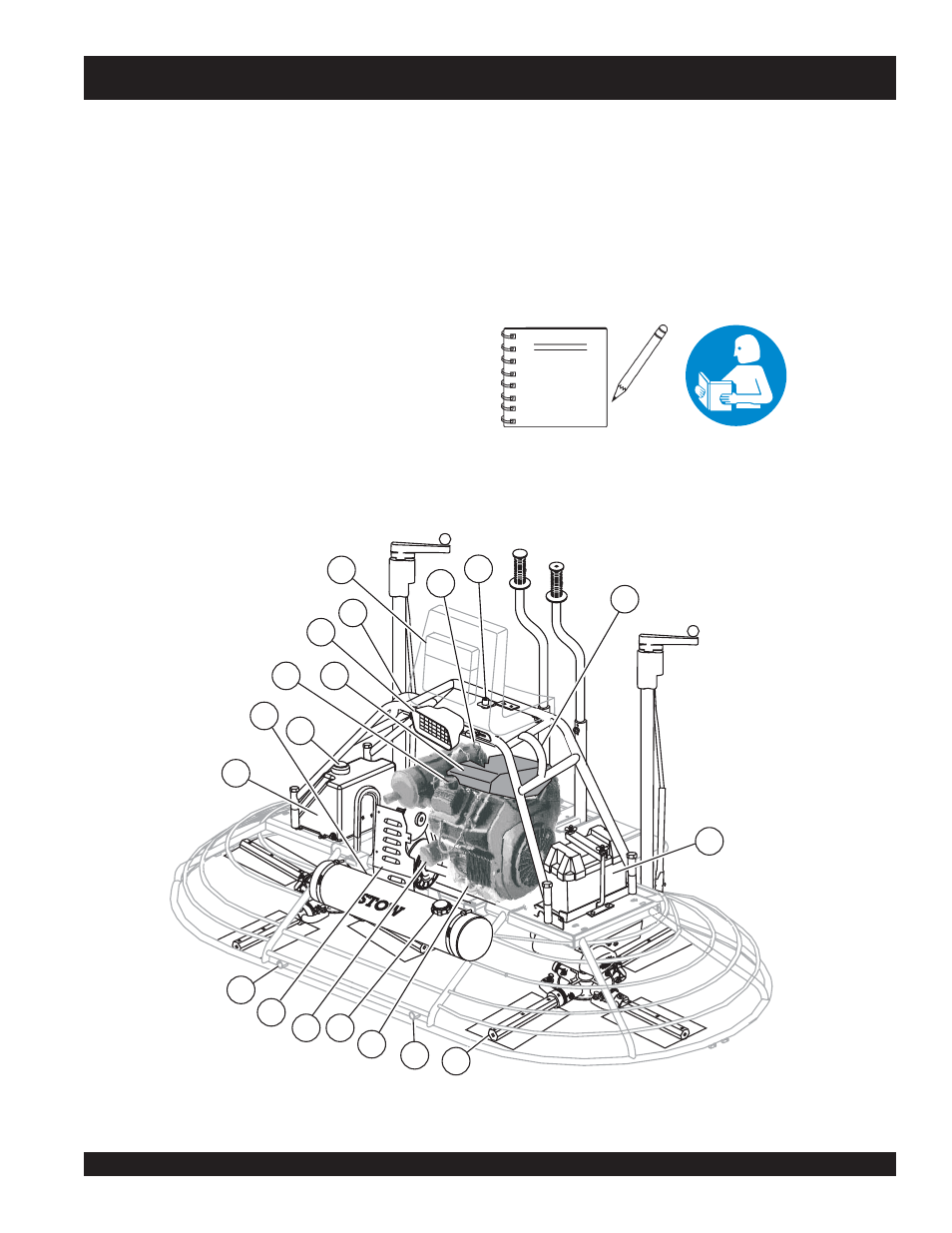

Figure 3. STR46SP Controls and Indicators (Rear)
Read, understand, and comply with all safety messages and
operating instructions in this manual before attempting to operate
the trowel.
NOTE
RE
TA RD
AN
T O
NLY
24
19
28
20
9
10
30
19
27
18
15
23
25
25
26
29
21
22
17
